BRAND: TECHNICAL PRO
MODEL: DN12X
SKU: SKU:DN12X-C

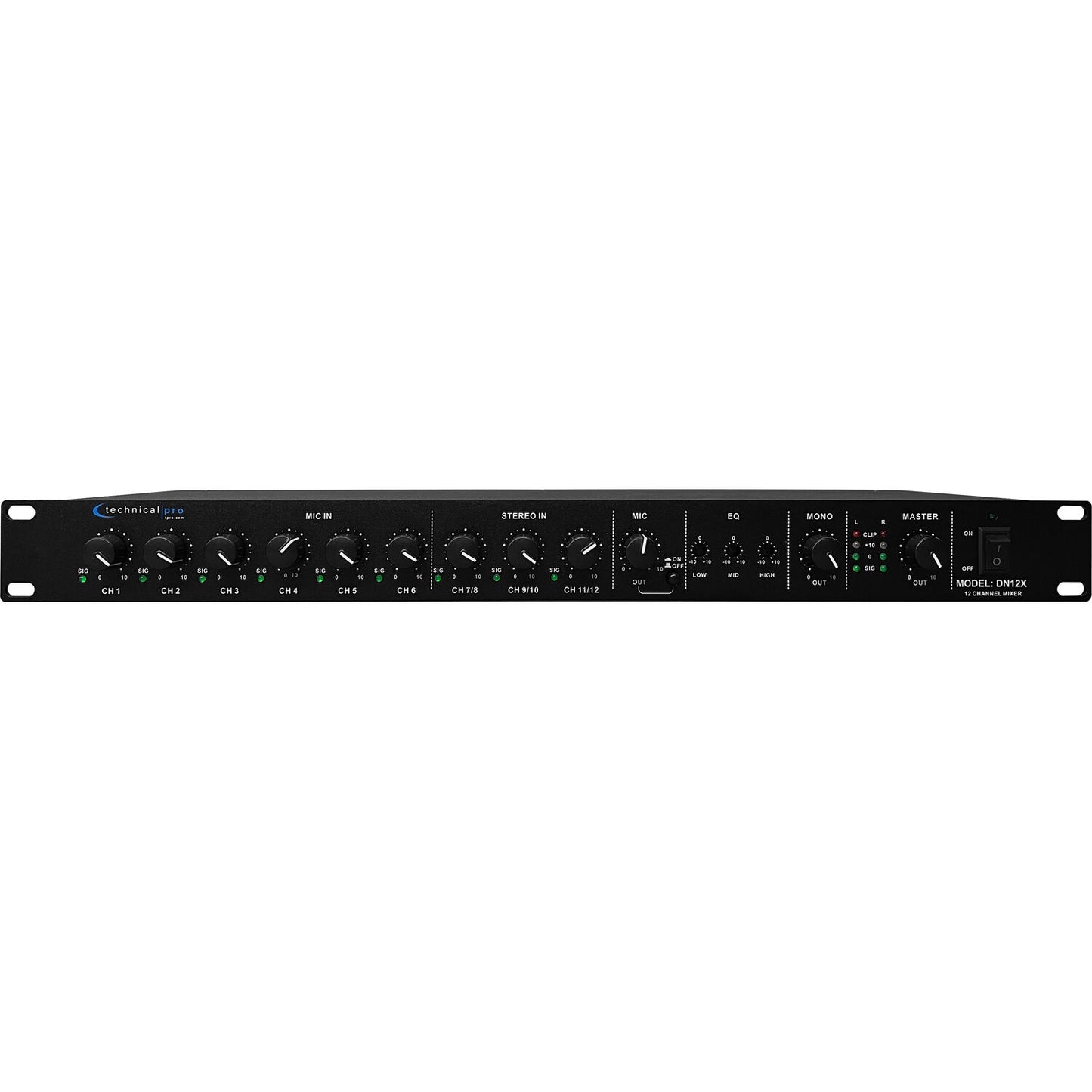

Technical Pro DN-12X 12-Channel Line Mixer with Microphone Priority
Technical Pro DN-12X 12-Channel Line Mixer with Microphone Priority
Condition: Refurbished -B
Warranty: 90 Days
Couldn't load pickup availability
Share
Additional Information:
This Technical Pro DN-12X 12-Channel Line Mixer with Microphone Priority is in great working condition.
The unit has been fully tested and is completely functional.
Included in the Box:
- Technical Pro DN-12X 12-Channel Line Mixer with Microphone Priority
- Power Cable
Packaging:
The item may be packaged in an Original or Brown box.
- Six Mic/Line Combo XLR-1/4" Inputs
- Channel 1 Mic Priority over Channels 2-6
- Three Stereo RCA Inputs
- Balanced XLR Outputs
- Mono Out & Mic Output on Two 1/4" Jacks
- Recording Output: Stereo RCA
- Selectable Mic/Line Input per Channel
- 3-Band Master EQ Control
- 4-Segment Stereo LED Master VU Meter
- AC or DC Power Source
Technical Pro DN-12X 12-Channel Line Mixer with Microphone Priority Description:
The Technical Pro DN-12X is a 1 RU rack-mounted 12-channel mixer with microphone priority well suited for live performance, karaoke, bars, clubs, studios, and more. The mixer features 6 combo XLR-1/4" inputs that are switchable between mic, line, and phantom power (PH), which allows for compatibility with condenser microphones. Channel 1 offers a variable mic priority knob, which at its lowest setting will mute all other microphone channel inputs entirely when a signal is present on Mic 1. The highest setting has no effect at all, while any setting in between works well for ducking music when making announcements.

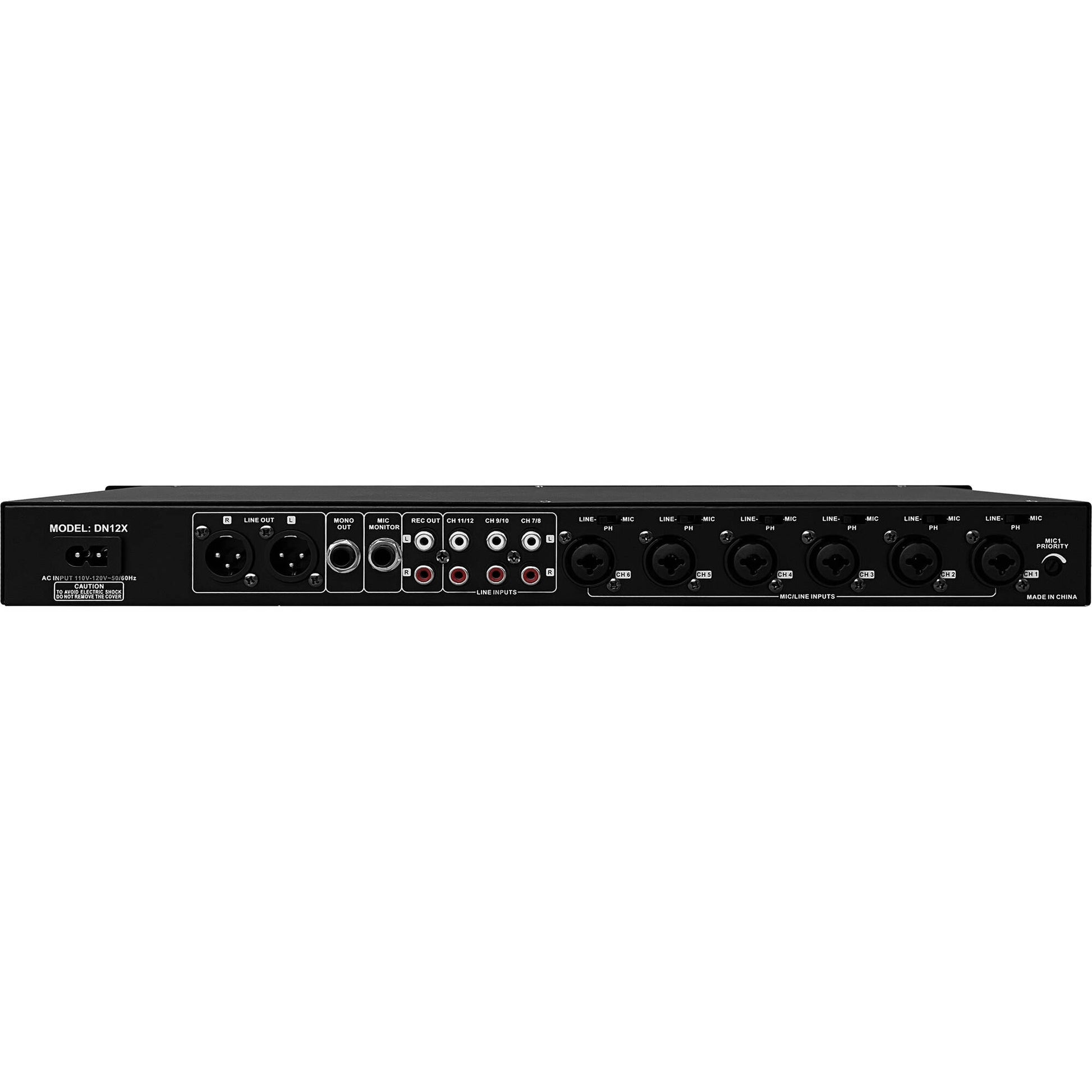

Additional inputs include three stereo RCA connector pairs for channels 7/8, 9/10, and 11/12. Output connectors include two XLR main outputs, stereo RCA recording outputs, a 1/4" mic monitor output, and a 1/4" mono output. The front panel offers volume controls for channels 1 through 6 as well as stereo channels 7/8 to 11/12. Additionally, there are dedicated volume controls for mic, mono, and master outputs. A master 3-band EQ offers cut/boost controls for high, mid, and low frequencies. The mixer can run on either standard AC power input or optionally via 24 VDC input. The DN-12X ships with a standard IEC power cord.
- 6 HDHQ combination mic/line inputs with mic, phantom, and line selector switches
- 6 mono (3 stereo) RCA Inputs
- Mic monitor 1/4” output for private listening of all mic inputs
- Balanced XLR line outputs
- Mono 1/4” line output can be used to feed audio to external recording device
- AC or 24 VDC power inputs
- Mic 1 Priority Control
- Master and individual level controls
- 1 RU rack mountable
Technical Pro DN-12X 12-Channel Line Mixer with Microphone Priority Specifications:
| Number of Analog Input Channels | 6 |
| Number of Mic Preamps | 6 |
| Analog Output Channels | 1x Stereo Master Output 1x Mono Tape/Record Output 1x Stereo Control Room/Monitor Output |
| EQ | 3-Band EQ |
| Built-In Effects | Yes |
| Wireless | No |
| Rack Mountable | Yes |
| Number of Analog Input Channels | 6 |
| Number of Mic Preamps | 6 |
| Analog Output Channels | 1x Stereo Master Output 1x Mono Tape/Record Output 1x Stereo Control Room/Monitor Output |
| Mix Routing | 1x Stereo Main Mix / Bus/Subgroup |
| Faders & Level Adjustment | No |
| Meters | No |
| EQ | 3-Band EQ |
| Graphic EQ | No |
| Built-In Effects | Yes |
| Analog Inputs | 6x Combo XLR-1/4" Mic/Line Input 6x RCA Coaxial Input (3 Stereo Pairs) |
| Analog Outputs | 2x XLR Balanced Stereo Output 1x 1/4" TRS Monitor Output 1x 1/4" Line Output |
| Phantom Power | +48 V |
| Digital I/O | No |
| Wireless | No |
| AC Input Power | 110 to 120 VAC, 50 / 60 Hz |
| Rack Mountable | Yes |
| Rackmount Size | 1 U |
| Dimensions | 19 x 7.7 x 1.7" / 482.6 x 195.6 x 43.2 mm |
| Weight | 6.4 lb / 2.9 kg |
