BRAND: TCL

MODEL: H60TDH16XAC

SKU: SKU:H60TDH16XAC

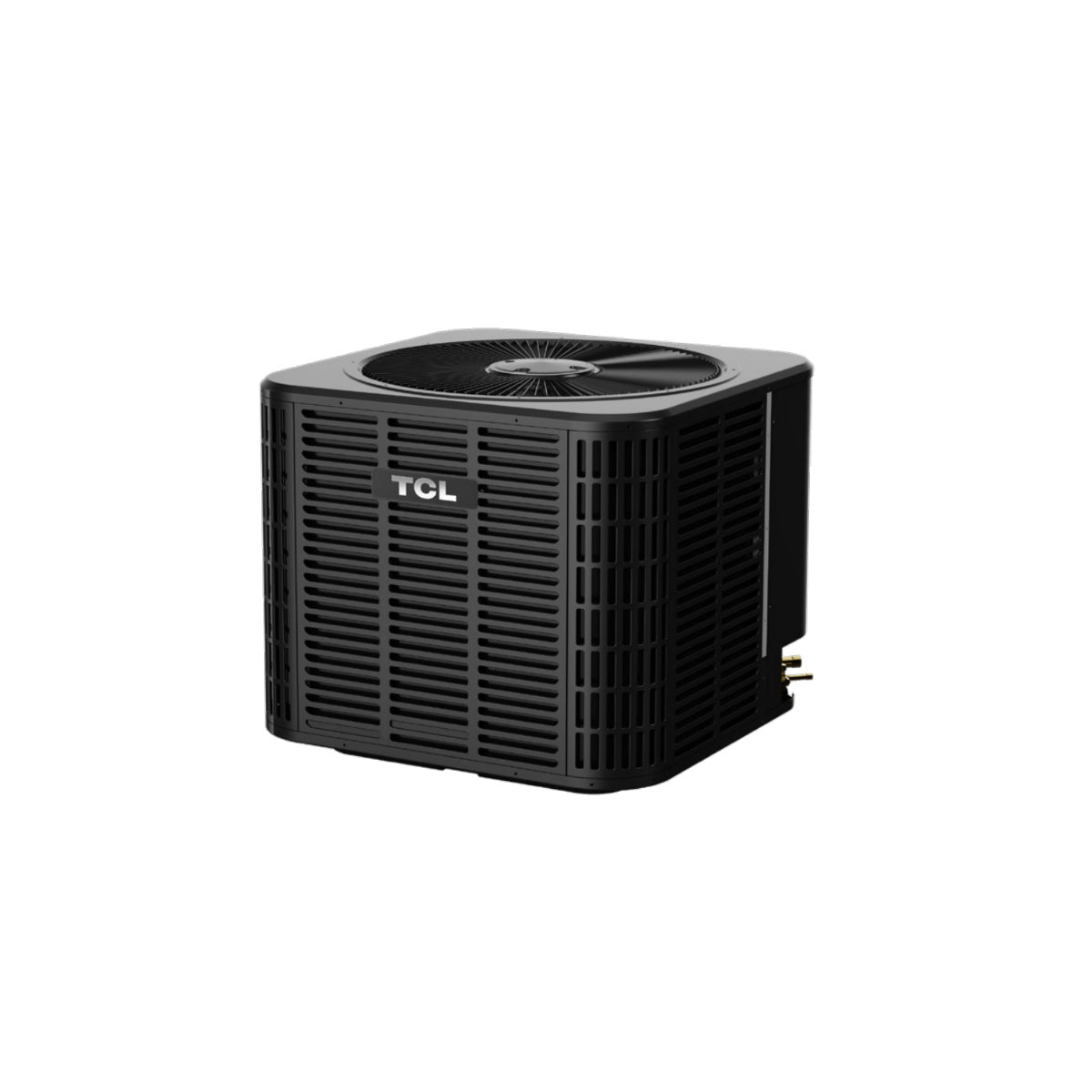

TCL H60TDH16XAC 60K Advantage Inverter Heat Pump Outdoor Unit

TCL H60TDH16XAC 60K Advantage Inverter Heat Pump Outdoor Unit

Condition: New

Warranty: 1 yr

Regular price $2,499.99 USD
Regular price $0.00 USD Sale price $2,499.99 USD
Sale Sold out
View full details

Additional Information:

This TCL 60K Advantage Inverter Heat Pump Outdoor Unit is in New condition.

Included in the Box:

  • TCL 60K Advantage Inverter Heat Pump Outdoor Unit
  • User Manual

Packaging:

The item is securely packaged in Original box.

TCL H60TDH16XAC 60K Advantage Inverter Heat Pump Outdoor Unit Description:

The TCL H60TDH16XAC is a 5-ton-class, inverter-driven outdoor heat pump unit designed for residential and light-commercial central heating and cooling systems.

The unit uses variable-speed inverter technology to adjust its output according to heating and cooling demand. It is designed to provide year-round comfort, energy-efficient operation, and heating performance in cold outdoor conditions when properly matched with a compatible indoor air handler.

TCL H60TDH16XAC 60K Advantage Inverter Heat Pump Outdoor Unit Features:

SMART CONTROL24V

Thermostat-Compatible to all 3rd Party 24vThermostats.RS485 Wired-Controller-To activate smart functions such as dehumidification, energy

MULTI-PROTECTION

Pressure protection, temperature protection, and current protection to adapt to various extreme weather conditions

R454B REFRIGERANT

Utilizing the advanced R454B eco-friendly refrigerant, it is safe, environmentally sustainable,free of pollutants, and highlyenergy efficient

EASY INSTALLATION AND MAINTENANCE

Simplifies both the setup and maintenance of the system which saves time and reduces potential errors



TCL H60TDH16XAC 60K Advantage Inverter Heat Pump Outdoor Unit Specifications:



Specification Details

Model

H60TDH16XAC

Manufacturer

TCL

Equipment type

Outdoor split-system heat pump

Nominal capacity

60,000 BTU/h class

Nominal tonnage

5 tons

Rated cooling capacity at 95°F

53,000 BTU/h

Cooling capacity range

9,400–53,000 BTU/h

Rated heating capacity at 47°F

53,000 BTU/h

Heating capacity range at 47°F

15,000–56,000 BTU/h

Heating capacity at 17°F

38,000 BTU/h

Heating capacity at 5°F

38,000 BTU/h

SEER2

17

EER2

8

HSPF2

8.2

Compressor type

Variable rotary inverter

Refrigerant

R-454B

Electrical supply

208–230 V, single-phase, 60 Hz

Minimum circuit ampacity (MCA)

35 A

Maximum overcurrent protection (MOCP)

60 A

Outdoor sound pressure level

69 dB(A)

Cooling operating range

5°F to 125°F

Heating operating range

-5°F to 80°F

Dimensions (W × H × D)

29.1 × 33.2 × 29.1 inches

Dimensions (metric)

740 × 843 × 740 mm

Net weight

190 lb

Shipping weight

220 lb
