Additional Information:
This TCL H36TDH18XAC (3-Ton / 36,000 BTU Advantage Series Top-Discharge Outdoor Unit is Brand NEW condition.
Included in the Box:
- TCL H36TDH18XAC (3-Ton / 36,000 BTU Advantage Series Top-Discharge Outdoor Unit
- Heat Pump Outdoor Condensing Unit
- Factory Refrigerant Charge
- Electronic Expansion Valve (EEV): Factory-installed metering device inside the outdoor unit.
- Integrated Control Board
- Documentation & Accessories:Installation manual and rubber anti-vibration pads / mounting feet hardware set
Packaging:
The item is securely packaged in Original box.

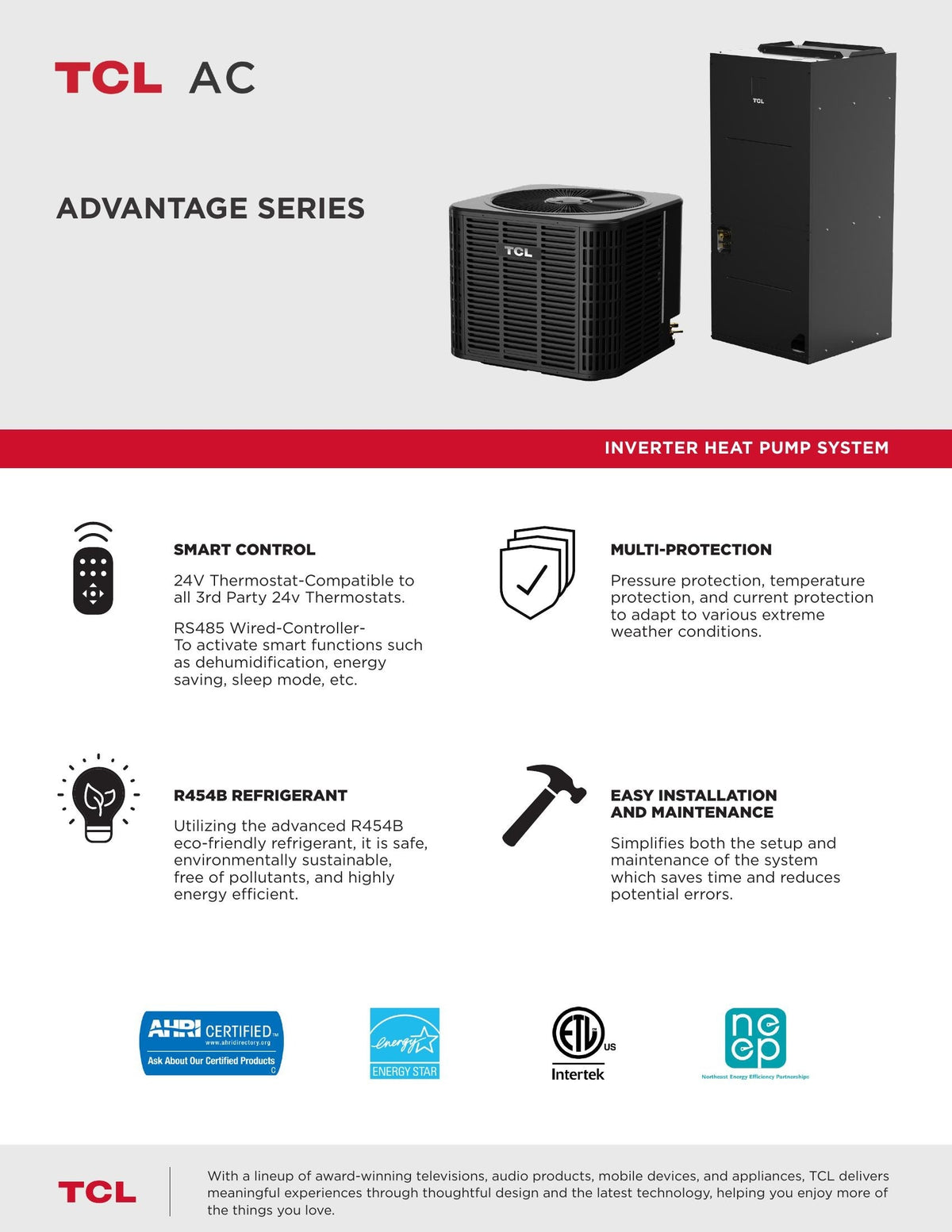

TCL Advantage Series Inverter Heat Pump System
The TCL Advantage Series H36TDH18XAC is a matched inverter heat pump and air-handler system designed for residential heating and cooling. The system uses R454B refrigerant and a variable rotary compressor, and supports third-party 24V thermostats.

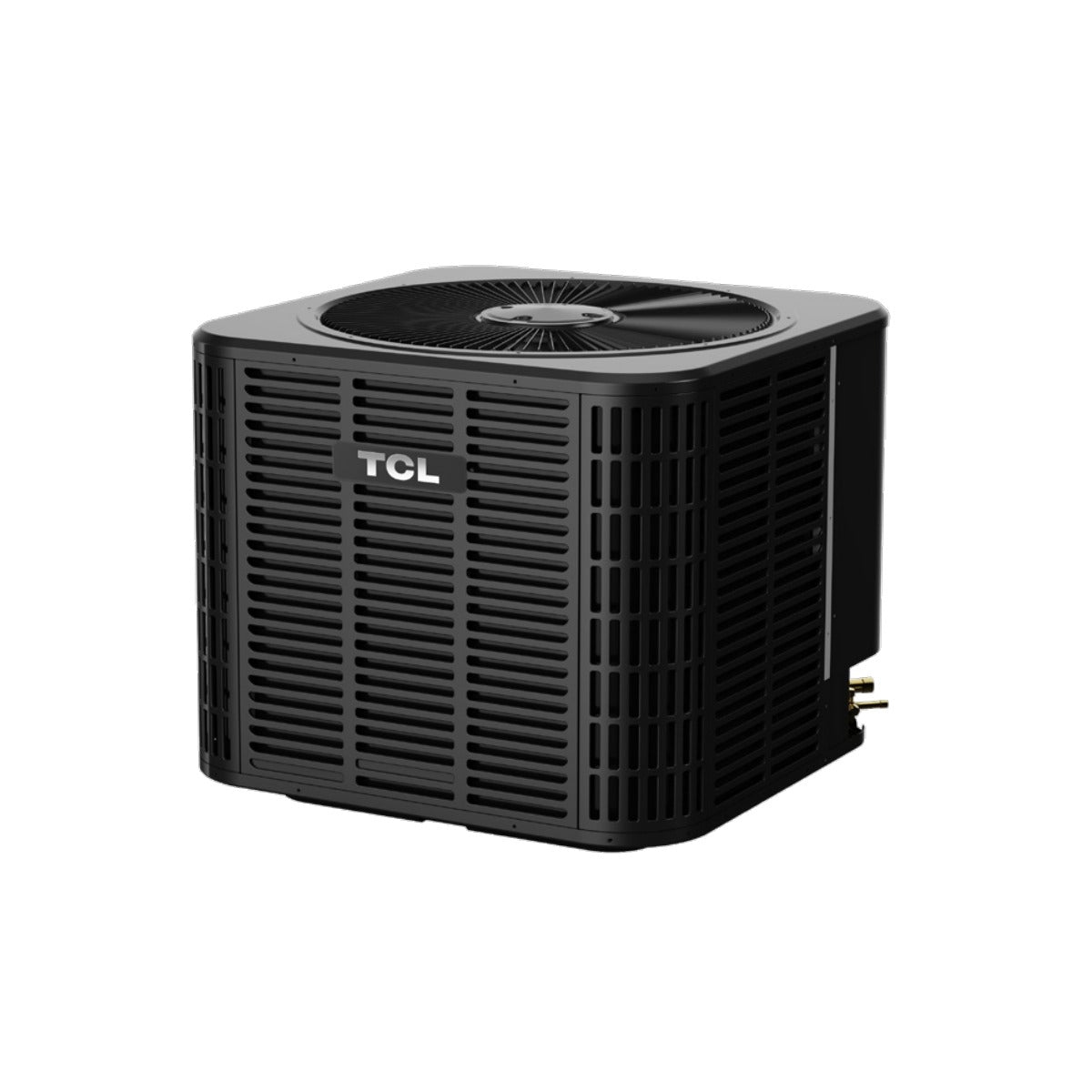

TCL H36TDH18XAC 36K Advantage Inverter Heat Pump Outdoor Unit
Features
-
SMART CONTROL24V
Thermostat-Compatible to all 3rd Party 24vThermostats.RS485 Wired-Controller-To activate smart functions such as dehumidification, energy
-
MULTI-PROTECTION
Pressure protection, temperature protection, and current protection to adapt to various extreme weather conditions
-
R454B REFRIGERANT
Utilizing the advanced R454B eco-friendly refrigerant, it is safe, environmentally sustainable,free of pollutants, and highlyenergy efficient
-
EASY INSTALLATION AND MAINTENANCE
Simplifies both the setup and maintenance of the system which saves time and reduces potential errors
Key Features:
• 34,000 BTU/h rated cooling capacity with 9,000-36,000 BTU/h operating range
• 36,000 BTU/h rated heating capacity at 47°F
• 25,000 BTU/h heating capacity at 17°F
• 26,000 BTU/h heating capacity at 5°F
• 19 SEER2 / 10 EER2 efficiency ratings
• 9 HSPF2 / 3.2 COP
• Cold-climate certified according to the manufacturer's specification sheet
• Variable rotary inverter compressor
• R454B refrigerant
• 208-230V, single-phase, 60Hz system
• Compatible with third-party 24V thermostats
• RS485 wired-controller support for smart functions
• ECM indoor fan motor
• 1,150 CFM indoor airflow
• Up to 0.8 in. W.C. external static pressure
• 3.8 pt/hr dehumidification
• Multiple system protections including pressure, temperature and current protection
• Designed for easier installation and maintenance
TCL 3 Ton 36K BTU Inverter Heat Pump System H36TDH18XAC
This identifies both components and the approximate 3-ton/36,000-BTU class without adding claims not supported by the sheet.

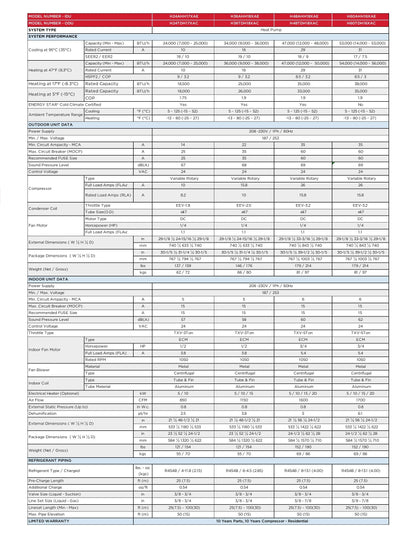

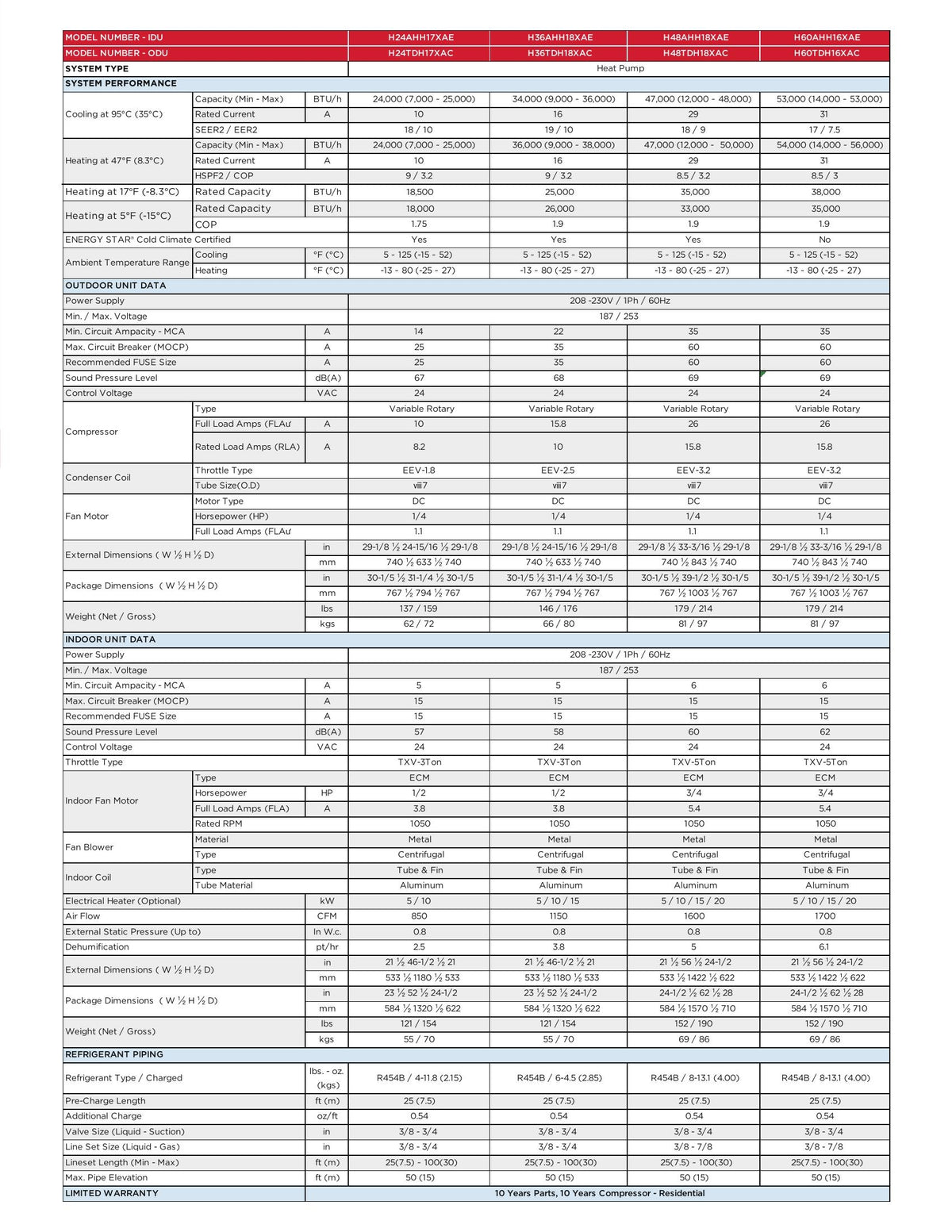

eBay Item Specifics
| Item Specific | Information |
|---|---|
| Brand | TCL |
| Series | Advantage Series |
| System Type | Inverter Heat Pump System |
| Outdoor Model | H36TDH18XAC |
| Indoor Model | H36AHH18XAE |
| Cooling Capacity | 34,000 BTU/h rated |
| Cooling Range | 9,000-36,000 BTU/h |
| Heating Capacity at 47°F | 36,000 BTU/h rated |
| Heating Range at 47°F | 9,000-38,000 BTU/h |
| Heating Capacity at 17°F | 25,000 BTU/h |
| Heating Capacity at 5°F | 26,000 BTU/h |
| SEER2 | 19 |
| EER2 | 10 |
| HSPF2 | 9 |
| COP | 3.2 |
| Refrigerant | R454B |
| Power Supply | 208-230V / 1 Phase / 60Hz |
| Control Voltage | 24V |
| Compressor | Variable Rotary |
| Outdoor Fan Motor | DC |
| Indoor Fan Motor | ECM |
| Indoor Airflow | 1,150 CFM |
| External Static Pressure | Up to 0.8 in. W.C. |
| Dehumidification | 3.8 pt/hr |
| Thermostat Compatibility | Third-party 24V thermostats |
| Cold Climate Certified | Yes |
| Warranty stated by manufacturer | 10 Years Parts / 10 Years Compressor - Residential |
