BRAND: TCL
MODEL: H12SBH22BPC
SKU: SKU:H12SBH22BPC

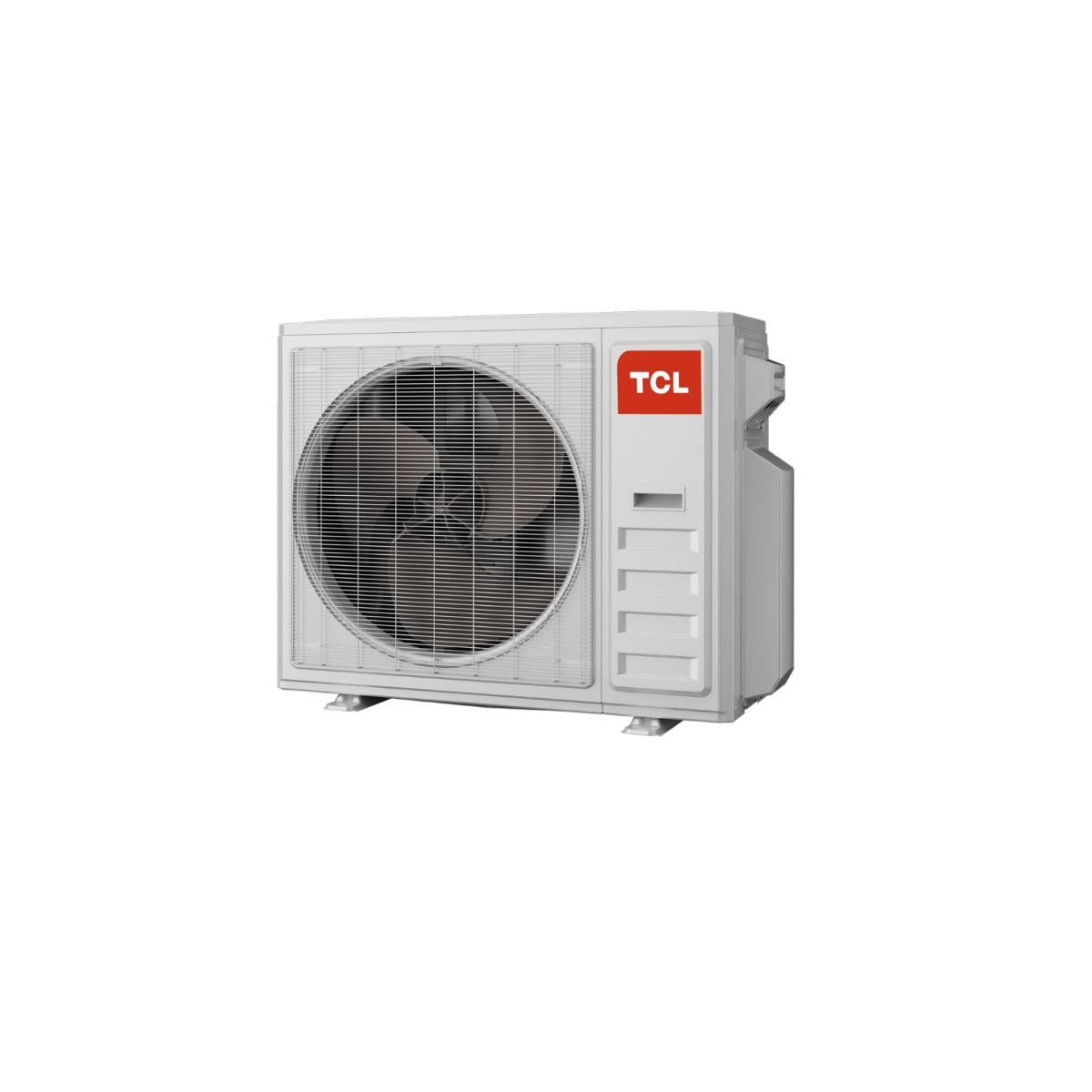

TCL Breezein H12SBH22BPC 12,000 115 Volt 24 Seer 2 Outdoor Unit, 650 sq ft, Smart control compatible with Alexa or Google Assistant
TCL Breezein H12SBH22BPC 12,000 115 Volt 24 Seer 2 Outdoor Unit, 650 sq ft, Smart control compatible with Alexa or Google Assistant
Condition: New
Warranty: 90 Days
Couldn't load pickup availability
Share
NOTE: This TCL 12,000 115 Volt 24 Seer 2 Outdoor unit is compatible with the Indoor model H12SBH22BPE. (Not included)
Additional Information:
This TCL H12SBH22BPC 12,000 115 Volt 24 Seer 2 Outdoor Unit is in Brand New condition.
Included in the Box:
- TCL H12SBH22BPC 12,000 115 Volt 24 Seer 2 Outdoor Unit
- User Manual
Packaging:
The item is securely packaged in Original box.
TCL H12SBH22BPC 12,000 115 Volt 24 Seer 2 Outdoor Unit
Description:
The TCL H12SBH22BPC is an outdoor unit for a single-zone ductless mini-split heat pump system. It is designed to provide both cooling and heating and pairs with the compatible TCL H12SBH22BPE indoor wall-mounted unit.
TCL H12SBH22BPC 12,000 115 Volt 24 Seer 2 Outdoor Unit
Features:
Inverter technology: Adjusts compressor output according to heating and cooling demand.
High energy efficiency: The official TCL specification sheet lists a 23 SEER2 rating for the matched 115V system. Some retailer listings advertise 24 SEER2, so the official matched-system rating is the safer figure to use.
Heating and cooling: Provides year-round comfort with a nominal cooling capacity of 12,000 BTU/h and a rated heating capacity of 12,400 BTU/h.
Smart controls: The compatible BreezeIN system supports TCL Home app control and voice-assistant integration, subject to the supplied equipment and setup.
Air filtration and self-cleaning: The BreezeIN indoor unit includes filter and self-cleaning features; these are indoor-unit functions, not features of the outdoor condenser itself.
Cold-weather heating: The matched system is listed for cold-climate operation, with published heating capacity at low outdoor temperatures.
TCL H12SBH22BPC 12,000 115 Volt 24 Seer 2 Outdoor Unit
Specifications:
General product information
Specification |
Details |
Brand |
TCL |
Outdoor Unit Model (ODU) |
H12SBH22BPC |
System Type |
Heat Pump |
AHRI Certificate Number |
215387258 |
Rated Cooling Capacity |
12,000 BTU/h |
Rated Heating Capacity at 47°F |
12,400 BTU/h |
Compressor Type |
Inverter |
Motor Type |
DC |
Refrigerant |
R454B |
2. Cooling performance
Cooling at 95°F (35°C)
Specification |
Value |
Rated Cooling Capacity |
12,000 BTU/h |
Rated Input Power |
960 W |
Rated Current |
8.3 A |
SEER2 / EER2 |
23 / 13 |
3. Heating performance
Heating at 47°F (8.3°C)
Specification |
Value |
Rated Heating Capacity |
12,400 BTU/h |
Rated Input Power |
890 W |
Rated Current |
8 A |
HSPF2 / COP |
10 / 3.81 |
Heating at 17°F (-8.3°C)
Specification |
Value |
Rated Heating Capacity |
7,800 BTU/h |
Heating at 5°F (-15°C)
Specification |
Value |
Maximum Heating Capacity |
8,900 BTU/h |
COP |
2.1 |
4. Energy efficiency and operating temperatures
Specification |
Value |
ENERGY STAR Certified |
Yes |
cc ENERGY STAR Certified |
Yes |
NEEP Listed |
Yes |
CEE Tier |
2 |
Potential Eligibility for IRA Tax Credit |
Yes – Both |
Cooling Operating Temperature |
5°F to 133°F (-15°C to 55°C) |
Heating Operating Temperature |
-13°F to 86°F (-25°C to 30°C) |
Certification and tax-credit entries reflect the supplied specification sheet, not a current eligibility determination.
5. Electrical specifications
Specification |
Value |
Power Supply |
115 V / 1 Phase / 60 Hz |
Voltage Range (Min–Max) |
97–133 V |
Minimum Circuit Ampacity (MCA) |
18 A |
Maximum Circuit Breaker (MOCP) |
25 A |
Maximum Fuse Size |
25 A |
Main Power Wire Size |
Per Local Code |
Connection Wiring |
16 AWG × 4 stranded, unshielded, TC-ER Type |
6. Refrigerant piping
Specification |
Value |
Refrigerant Type |
R454B |
Factory Refrigerant Charge |
35.27 oz |
Pre-Charged Line Length |
25 ft (7.5 m) |
Additional Refrigerant Charge |
0.11 oz/ft |
Design Pressure |
725 PSIG |
Liquid Line Size |
1/4 in |
Gas Line Size |
3/8 in |
Line Set Length (Min–Max) |
10–65 ft (3–20 m) |
Maximum Pipe Elevation |
33 ft (10 m) |
7. Indoor unit specifications
Indoor Model: H12SBH22BPE
Specification |
Value |
Indoor Motor Type |
DC |
Thermostat Type |
Wireless Remote Controller with Wi-Fi |
Voice Control |
Google Assistant / Amazon Alexa |
Air Flow (Hi/Mid/Lo) |
471 / 382 / 294 CFM |
Sound Pressure Level (Min–Max) |
25–44 dB(A) |
Indoor unit dimensions
Measurement |
Value |
Width |
36 1/4 in (920 mm) |
Height |
12 1/16 in (306 mm) |
Depth |
7 11/16 in (195 mm) |
Net Weight |
23.1 lb (10.5 kg) |
Gross Weight |
30.9 lb (14 kg) |
Indoor unit packaging
Measurement |
Value |
Width |
39 in (990 mm) |
Height |
14 15/16 in (380 mm) |
Depth |
10 7/16 in (265 mm) |
8. Outdoor unit specifications
Outdoor Model: H12SBH22BPC
Specification |
Value |
Compressor Type |
Inverter |
Motor Type |
DC |
Throttle Type |
Capillary |
Maximum Air Flow |
1,170 CFM |
Sound Pressure Level |
53 dB(A) |
Outdoor unit dimensions
Measurement |
Value |
Width |
31 7/8 in (810 mm) |
Height |
21 5/8 in (549 mm) |
Depth |
12 in (305 mm) |
Net Weight |
58.4 lb (26.5 kg) |
Gross Weight |
69.4 lb (31.5 kg) |
Outdoor unit packaging
Measurement |
Value |
Width |
33 9/16 in (852 mm) |
Height |
23 5/8 in (600 mm) |
Depth |
14 1/8 in (358 mm) |
