NOTE: This TCL 9,000 115 Volt 24 Seer 2 Outdoor unit is compatible with the Indoor model H09SBH23BPE. (Not included)
Additional Information:
This TCL 9,000 115 Volt 24 Seer 2 Outdoor Unit is in Brand New condition.
Included in the Box:
- TCL H09SBH23BPC 9,000 115 Volt 24 Seer 2 Outdoor Unit
- User manual
Packaging:
The item is securely packaged in Original box.

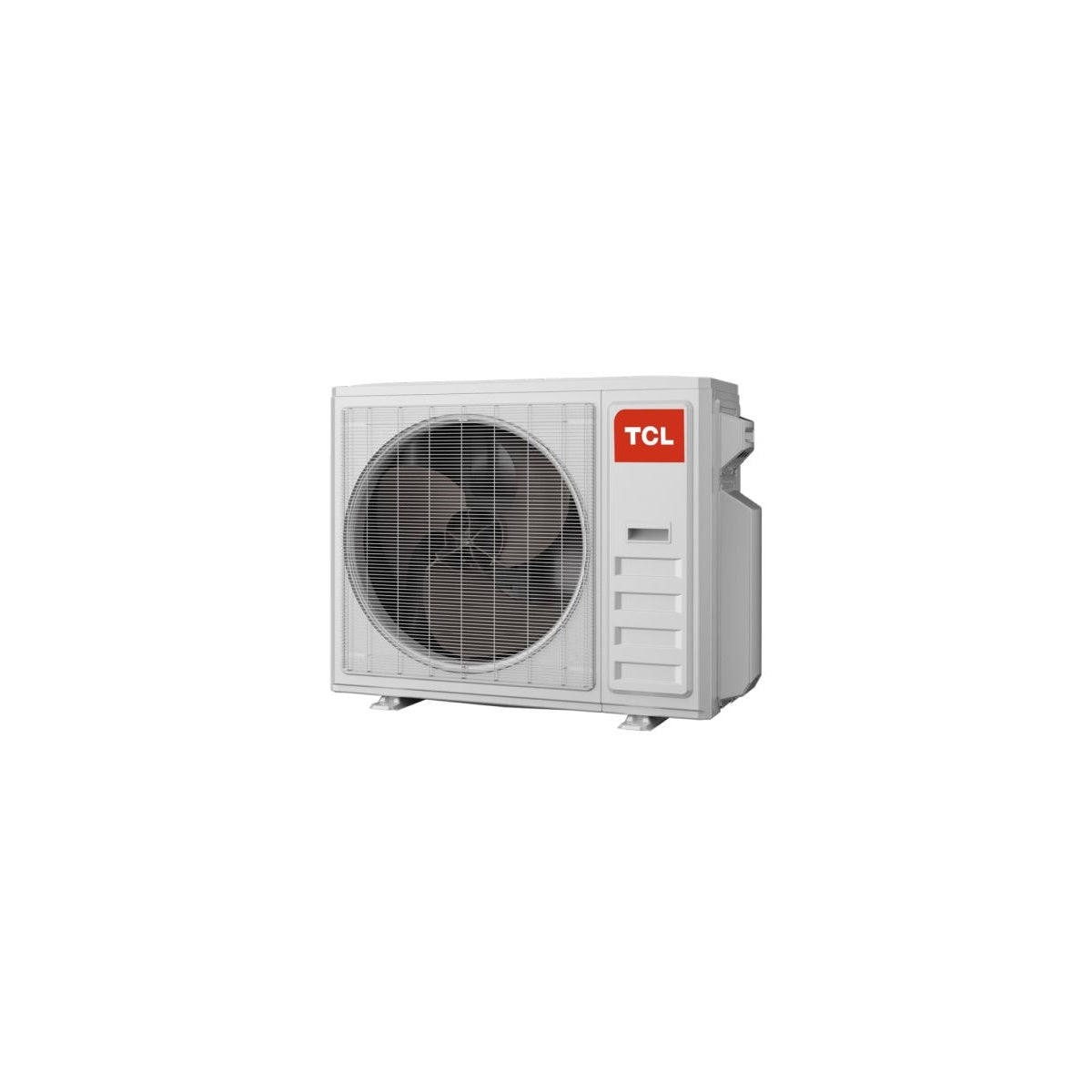

TCL H09SBH23BPC 9,000 115 Volt 24 Seer 2 Outdoor Unit
Features
-
EASY FILTER CLEANING
The top cover filter can be easily removed and put back. There is noneed to open up the front panel. The high-density filter captures the finest dust particles in the air, along with the 6-in-1 healthy filter that can eliminate harmful substances.
-
T-AL ENERGY SAVINGS
The Al energy-saving technology relies on data gathered from indoor temperature fluctuations. This enables the compressor to proactively adjust its operation frequency, allocating most of the cooling power towards temperature regulation rather than unnecessary dehumidification andover cooling
-
SMART CONTROL COMPATIBLE WITH GOOGLE HOME AND ALEXA
Upgrade your home to a truly smart ecosystem with our smart BreezeIN AC. Connect it to your smart TV, smartphone, or Alexa soundbar through TCL HOME or Google Assistant for hands-free voice control & convenient remote control
-
DEEP SELF-CLEANING AND STERILIZATION
From dewing, frosting, defrosting, drying and sterilizing, deep clean utilizes water molecules in the airto clean away dust, dirt, andother impurities
TCL H09SBH23BPC 9,000 115 Volt 24 Seer 2 Outdoor Unit
Specifications:
General product information
Specification |
Details |
Brand |
TCL |
Product Series |
BreezeIN |
Outdoor Unit Model (ODU) |
H09SBH23BPC |
System Type |
Heat Pump |
AHRI Certificate Number |
215387257 |
Cooling Capacity (Rated) |
9,000 BTU/h |
Heating Capacity (Rated at 47°F) |
10,000 BTU/h |
Compressor Type |
Inverter |
Motor Type |
DC |
2. Cooling performance
Cooling at 95°F (35°C)
Specification |
Value |
Rated Cooling Capacity |
9,000 BTU/h |
Rated Input Power |
700 W |
Rated Current |
6.1 A |
SEER2 / EER2 |
24 / 13 |
3. Heating performance
Heating at 47°F (8.3°C)
Specification |
Value |
Rated Heating Capacity |
10,000 BTU/h |
Rated Input Power |
730 W |
Rated Current |
6.5 A |
HSPF2 / COP |
10 / 3.81 |
Heating at 17°F (-8.3°C)
Specification |
Value |
Rated Heating Capacity |
6,200 BTU/h |
Heating at 5°F (-15°C)
Specification |
Value |
Maximum Heating Capacity |
7,500 BTU/h |
COP |
2.1 |
4. Energy efficiency and operating temperatures
Specification |
Value |
ENERGY STAR Certified |
Yes |
cc ENERGY STAR Certified |
Yes |
NEEP Listed |
Yes |
CEE Tier |
2 |
Potential Eligibility for IRA Tax Credit |
Yes – Both |
Cooling Operating Temperature |
5°F to 133°F (-15°C to 55°C) |
Heating Operating Temperature |
-13°F to 86°F (-25°C to 30°C) |
Certification and tax-credit entries reproduce the supplied specification sheet and are not independently verified for current eligibility.
5. Electrical specifications
Specification |
Value |
Power Supply |
115 V / 1 Phase / 60 Hz |
Voltage Range (Min–Max) |
97–133 V |
Minimum Circuit Ampacity (MCA) |
16 A |
Maximum Circuit Breaker (MOCP) |
25 A |
Maximum Fuse Size |
25 A |
Main Power Wire Size |
Per Local Code |
Connection Wiring |
16 AWG × 4 stranded, unshielded, TC-ER Type |
6. Refrigerant piping
Specification |
Value |
Refrigerant Type |
R454B |
Factory Refrigerant Charge |
25.04 oz |
Pre-Charged Line Length |
25 ft (7.5 m) |
Additional Refrigerant Charge |
0.11 oz/ft |
Design Pressure |
725 PSIG |
Liquid Line Size |
1/4 in |
Gas Line Size |
3/8 in |
Line Set Length (Min–Max) |
10–65 ft (3–20 m) |
Maximum Pipe Elevation |
33 ft (10 m) |
7. Indoor unit specifications
Indoor Model: H09SBH23BPE
Specification |
Value |
Indoor Motor Type |
DC |
Thermostat Type |
Wireless Remote Controller with Wi-Fi |
Voice Control |
Google Assistant / Amazon Alexa |
Air Flow (Hi/Mid/Lo) |
283 / 235 / 188 CFM |
Sound Pressure Level (Min–Max) |
24–44 dB(A) |
Indoor unit dimensions
Measurement |
Value |
Width |
32 1/4 in (820 mm) |
Height |
12 1/16 in (306 mm) |
Depth |
7 11/16 in (195 mm) |
Net Weight |
20.7 lb (9.4 kg) |
Gross Weight |
25.1 lb (11.4 kg) |
Indoor unit packaging
Measurement |
Value |
Width |
35 1/16 in (890 mm) |
Height |
14 15/16 in (380 mm) |
Depth |
10 7/16 in (265 mm) |
8. Outdoor unit specifications
Outdoor Model: H09SBH23BPC
Specification |
Value |
Compressor Type |
Inverter |
Motor Type |
DC |
Throttle Type |
Capillary |
Maximum Air Flow |
1,170 CFM |
Sound Pressure Level |
51 dB(A) |
Outdoor unit dimensions
Measurement |
Value |
Width |
31 7/8 in (810 mm) |
Height |
21 5/8 in (549 mm) |
Depth |
12 in (305 mm) |
Net Weight |
53.6 lb (24.3 kg) |
Gross Weight |
60.4 lb (27.4 kg) |
Outdoor unit packaging
Measurement |
Value |
Width |
33 9/16 in (852 mm) |
Height |
23 5/8 in (600 mm) |
Depth |
14 1/8 in (358 mm) |
