BRAND: TCL
MODEL: H12SUH25XGE
SKU: SKU:H12SUH25XGE

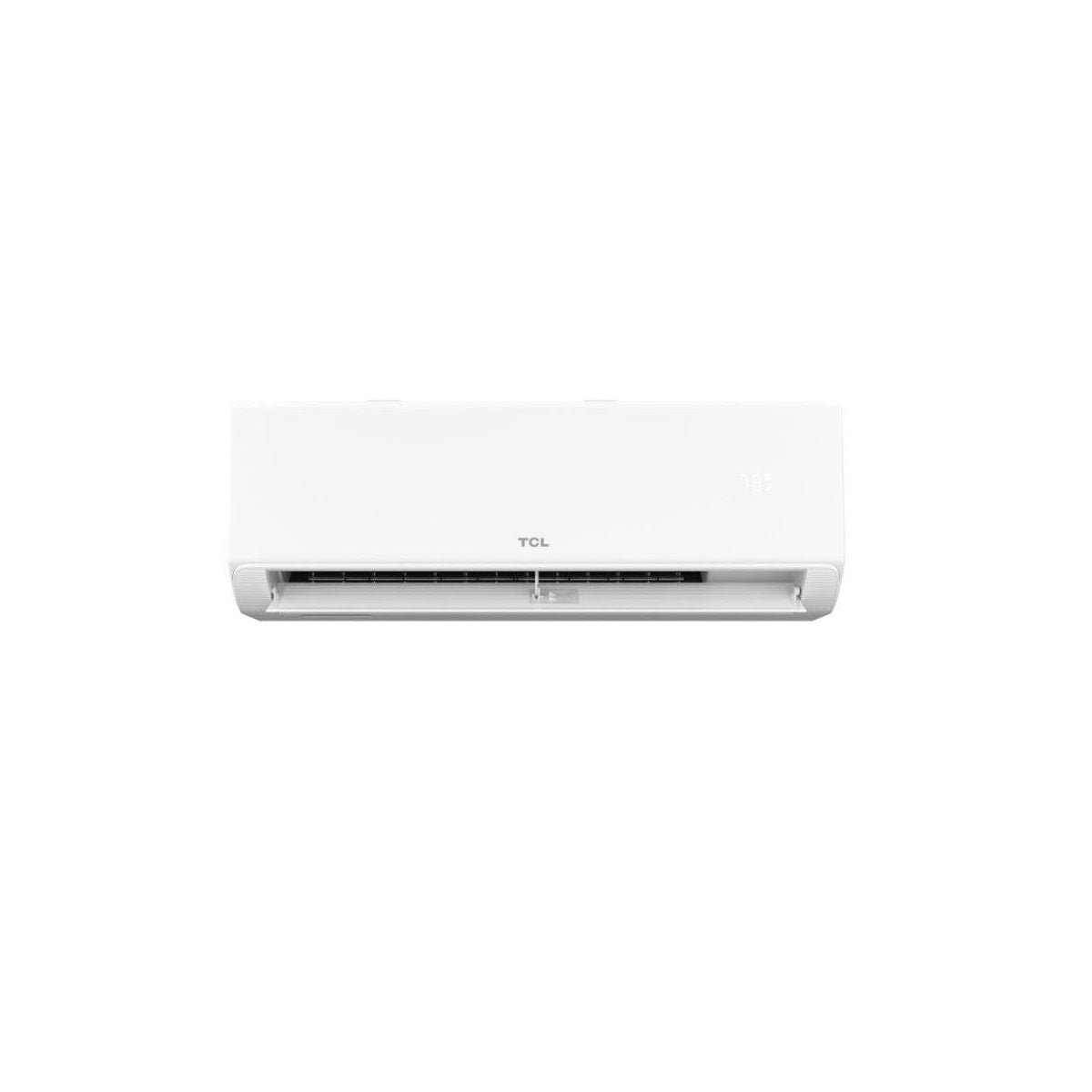

TCL 12,000 Ultimate 25 Series Ductless Split, 25 SEER2, R454B High Wall Mount Indoor Unit H12SUH25XGE
TCL 12,000 Ultimate 25 Series Ductless Split, 25 SEER2, R454B High Wall Mount Indoor Unit H12SUH25XGE
Condition: New
Warranty: 90 Days
Couldn't load pickup availability
Share
Additional Information:
This TCL 12,000 Ultimate 25 Series Ductless Split, 25 SEER2, R454B High Wall Mount Indoor Unit is in New condition.
Included in the Box:
- TCL 12,000 Ultimate 25 Series Ductless Split, 25 SEER2, R454B High Wall Mount Indoor Unit
- User Manual
Packaging:
The item is securely packaged in Original box.
TCL 12,000 Ultimate 25 Series Ductless Split, 25 SEER2, R454B High Wall Mount Indoor Unit H12SUH25XGE
Features:
-
EXTREME LOW TEMPERATURE HEATING
Designed for extreme cold conditions, the Ultimate 25 Series heat pump system will operate efficiently down to -13° F ambient temperature.
-
DEEP SELF-CLEANING AND STERILIZATION
From dewing, frosting, defrosting, drying and sterilizing, deep clean utilizes water molecules in the air to clean away dust, dirt, and other impurities.
-
LISTED ENERGY STAR 2025 MOST EFFICIENT HEAT PUMP
The ENERGY STAR Most Efficient criteria recognizes the most efficient products among those that qualify for ENERGY STAR. These exceptional products represent the leading edge in energy efficient products this year.
-
SMART CONTROL COMPATIBLE WITH GOOGLE HOME AND ALEXA
Upgrade your home to a truly smart ecosystem with our smart Ultimate 25 Series AC. Connectit to your smart TV, smartphone, or Alexa soundbar through TCL HOME or Google Assistant for hands-free voice control & convenient remote control.
TCL 12,000 Ultimate 25 Series Ductless Split, 25 SEER2, R454B High Wall Mount Indoor Unit H12SUH25XGE
General Product Information
| Specification | Details |
|---|---|
Brand |
TCL |
Series |
Ultimate 25 Series |
Indoor Unit Model |
H12SUH25XGE |
|
|
System Type |
Heat Pump |
Cooling Capacity |
12,000 BTU/h |
Heating Capacity (47°F) |
12,000 BTU/h |
Compressor Type |
Inverter |
Refrigerant |
R454B |
AHRI Certificate |
216506201 |
Cooling and Heating Performance
| Specification | Value |
|---|---|
Cooling Capacity at 95°F |
12,000 BTU/h |
Cooling Rated Input Power |
970 W |
Cooling Rated Current |
4.4 A |
SEER2 |
25 |
EER2 |
14 |
Heating Capacity at 47°F |
12,000 BTU/h |
Heating Rated Input Power |
925 W |
Heating Rated Current |
4.2 A |
HSPF2 |
10.5 |
Heating COP at 47°F |
4.0 |
Extreme Cold Heating Performance
| Outdoor Temperature | Heating Capacity |
|---|---|
17°F (-8.3°C) |
7,800 BTU/h (rated) |
5°F (-15°C) |
12,000 BTU/h (maximum) |
-13°F (-25°C) |
9,100 BTU/h (maximum) |
-22°F (-30°C) |
7,100 BTU/h (maximum) |
Operating temperature ranges:
Cooling: 5°F to 131°F (-15°C to 55°C)
Heating: -22°F to 86°F (-30°C to 30°C)
Electrical Specifications
| Specification | Value |
|---|---|
Power Supply |
208–230V / Single Phase / 60Hz |
Voltage Range |
187–253V |
Minimum Circuit Ampacity (MCA) |
12 A |
Maximum Circuit Breaker (MOCP) |
20 A |
Maximum Fuse Size |
20 A |
Main Power Wire Size |
Per local code |
Connection Wiring |
16 AWG × 4, stranded, unshielded, TC-ER type |
Refrigerant and Piping
| Specification | Value |
|---|---|
Refrigerant Type |
R454B |
Factory Refrigerant Charge |
35.27 oz |
Pre-Charged Line Length |
25 ft (7.5 m) |
Additional Refrigerant Charge |
0.11 oz/ft |
Design Pressure |
725 PSIG |
Liquid Line Size |
1/4 in |
Gas Line Size |
3/8 in |
Minimum Line Set Length |
10 ft (3 m) |
Maximum Line Set Length |
50 ft (15 m) |
Maximum Pipe Elevation |
33 ft (10 m) |
Indoor Unit Specifications — H12SUH25XGE
| Specification | Value |
|---|---|
Indoor Motor Type |
DC |
Controller |
Wireless Remote with Wi-Fi and Voice Control |
Airflow — High |
470 CFM |
Airflow — Medium |
411 CFM |
Airflow — Low |
323 CFM |
Noise Level |
32–46 dB(A) |
Width |
36 1/4 in |
Height |
12 1/16 in |
Depth |
7 11/16 in |
Net Weight |
23.1 lb |
Gross Weight |
30.9 lb |
Indoor unit package dimensions: 39 × 10 7/16 × 14 15/16 inches.
Outdoor Unit Specifications — H12SUH25XGC
| Specification | Value |
|---|---|
Compressor |
Inverter |
Motor |
DC |
Throttle Type |
EXV |
Noise Level |
57 dB(A) |
Width |
34 in |
Height |
23 11/16 in |
Depth |
13 3/4 in |
Net Weight |
69.4 lb |
Gross Weight |
78.3 lb |
