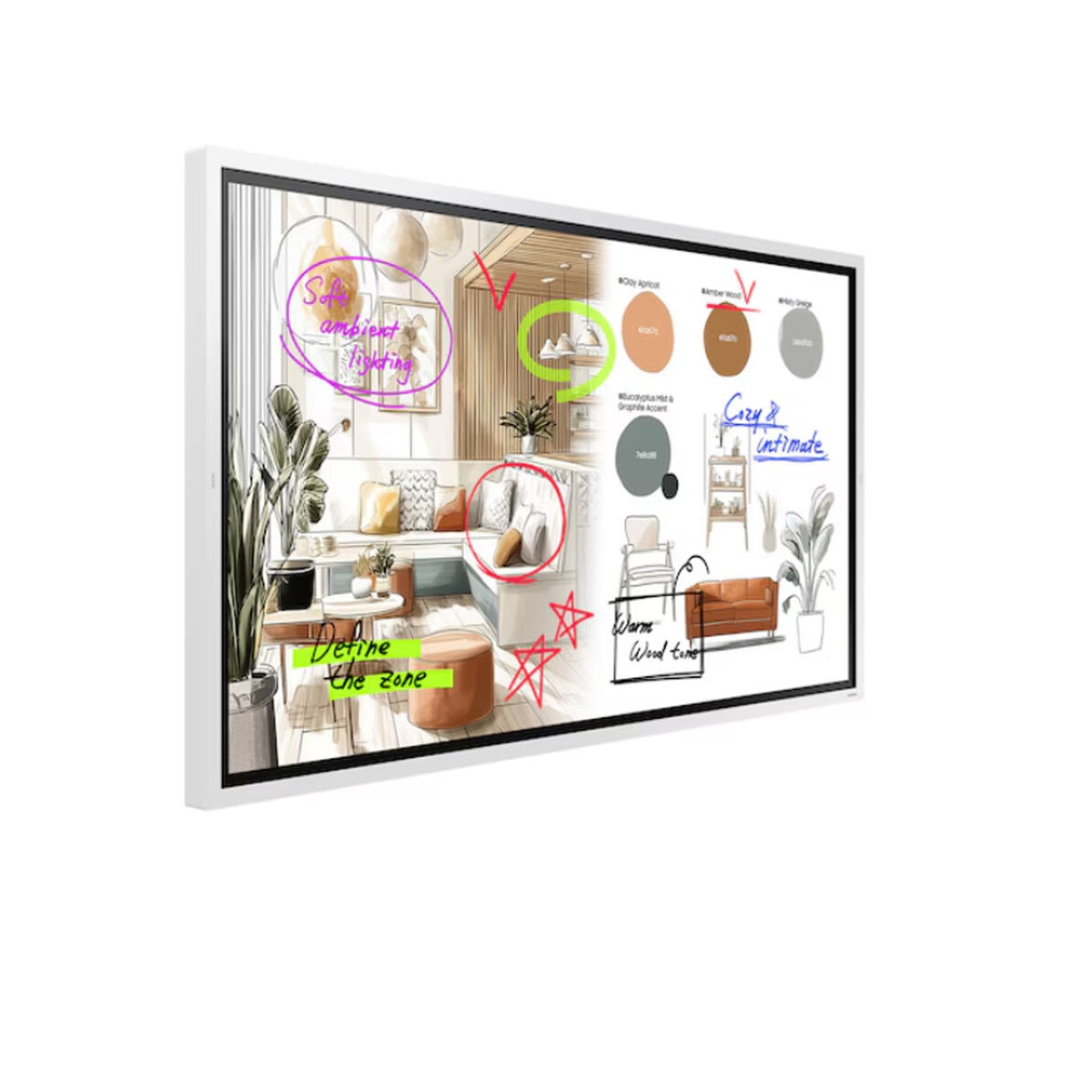

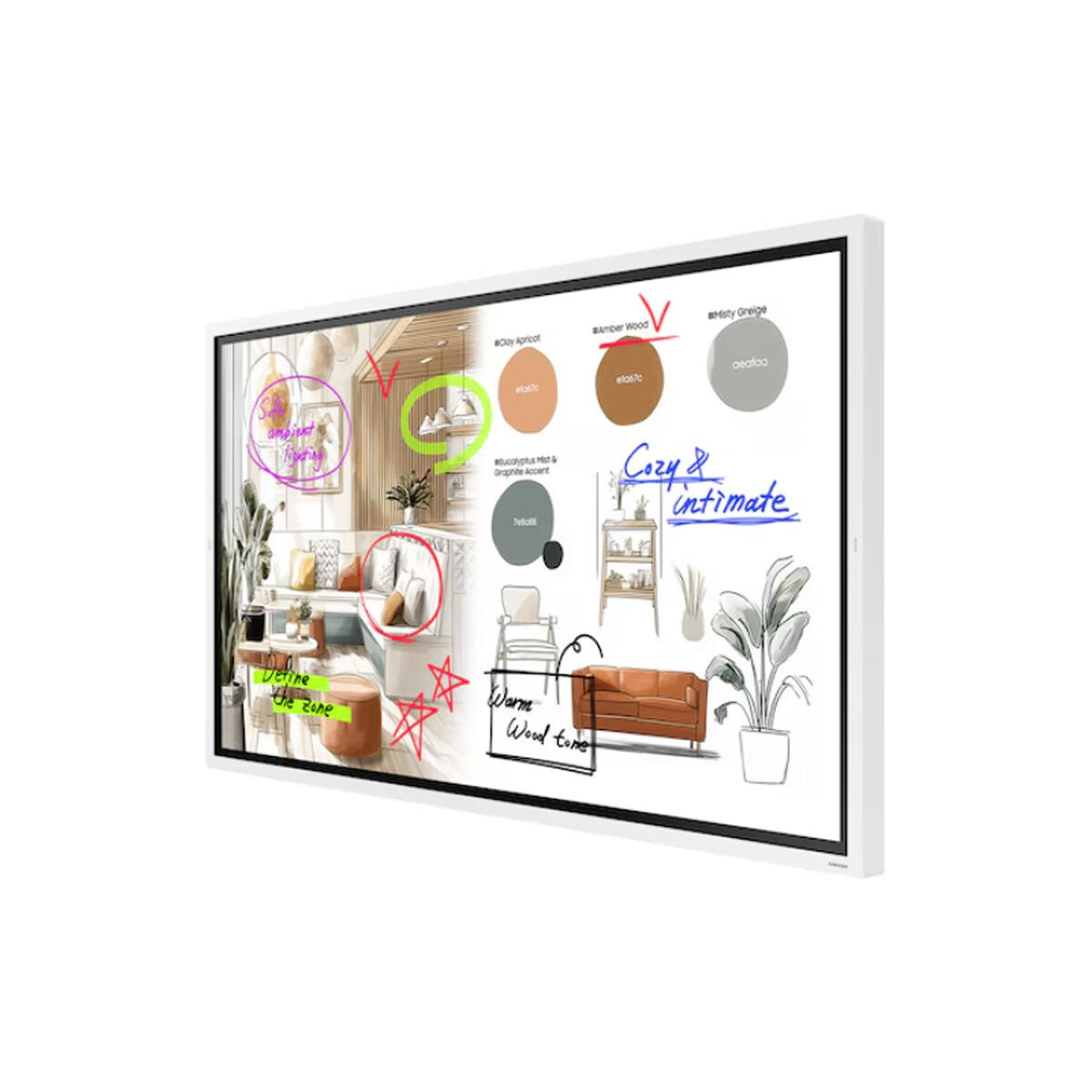

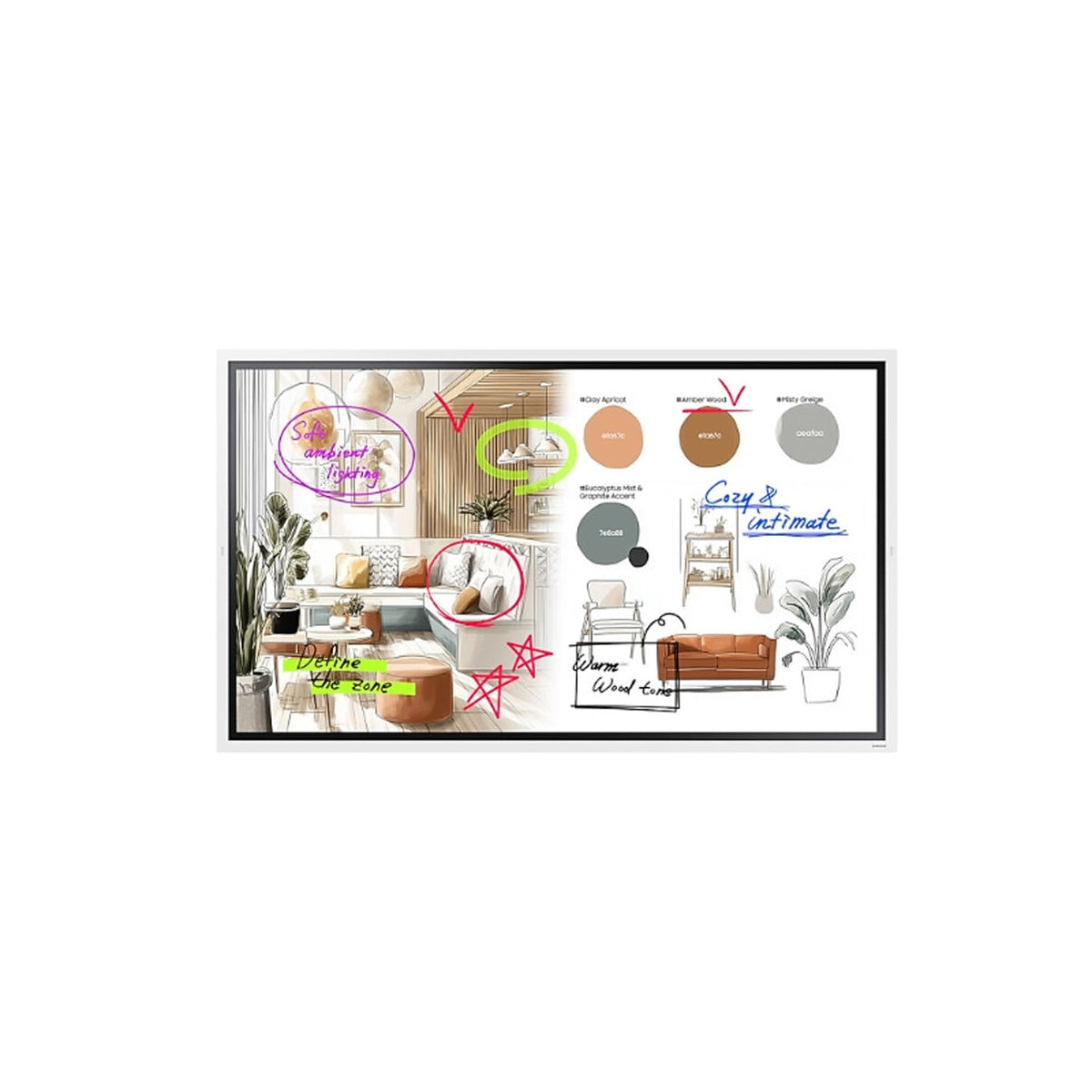

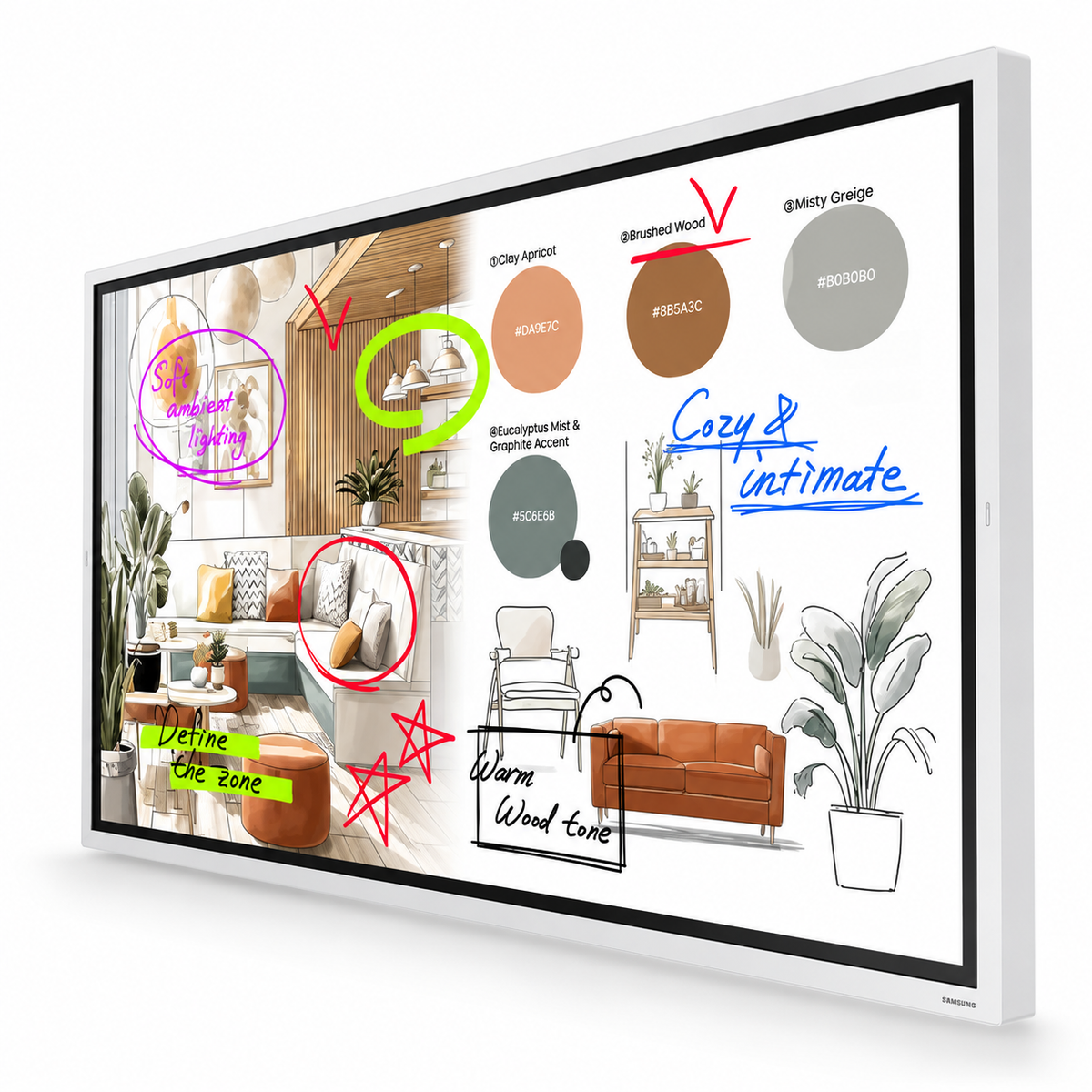

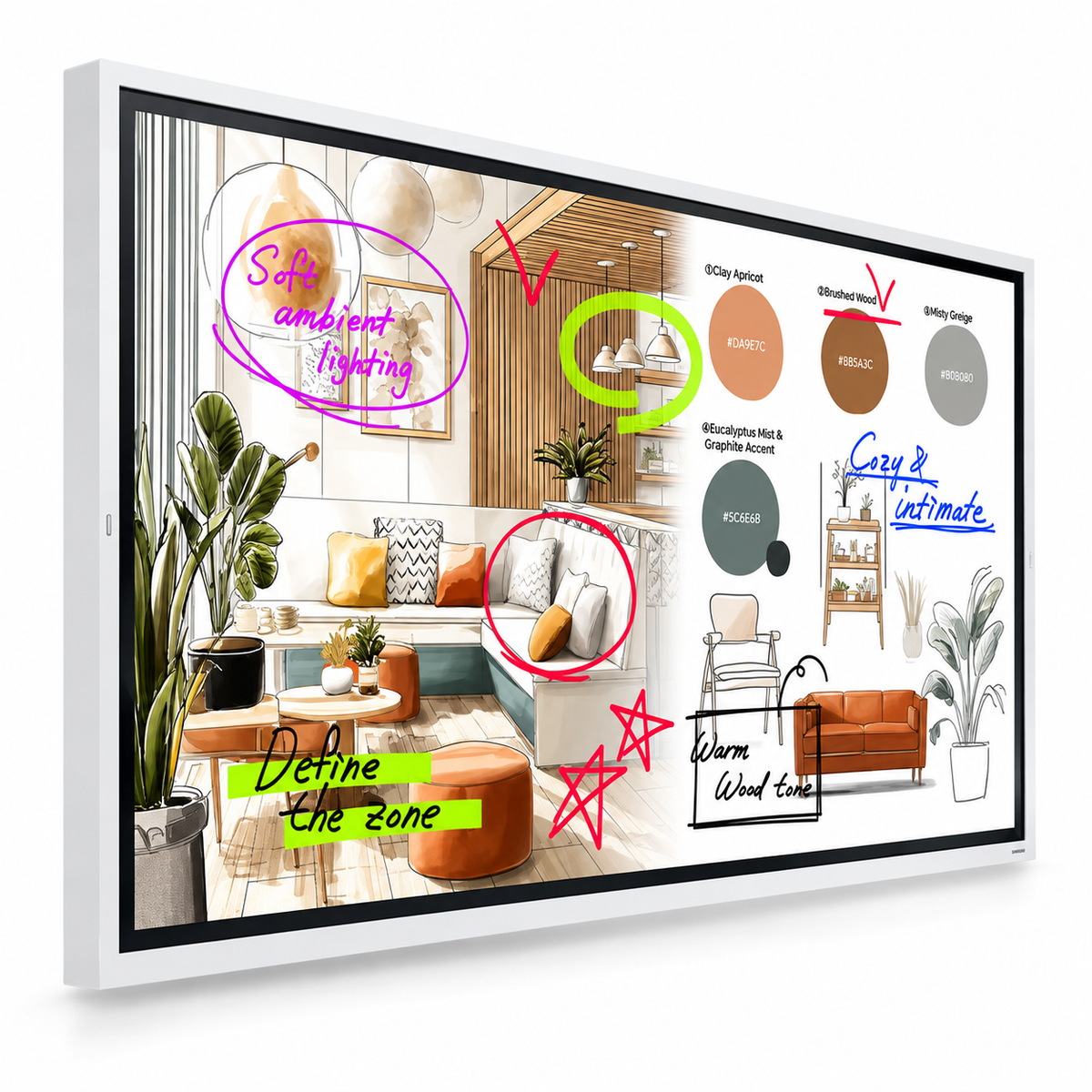

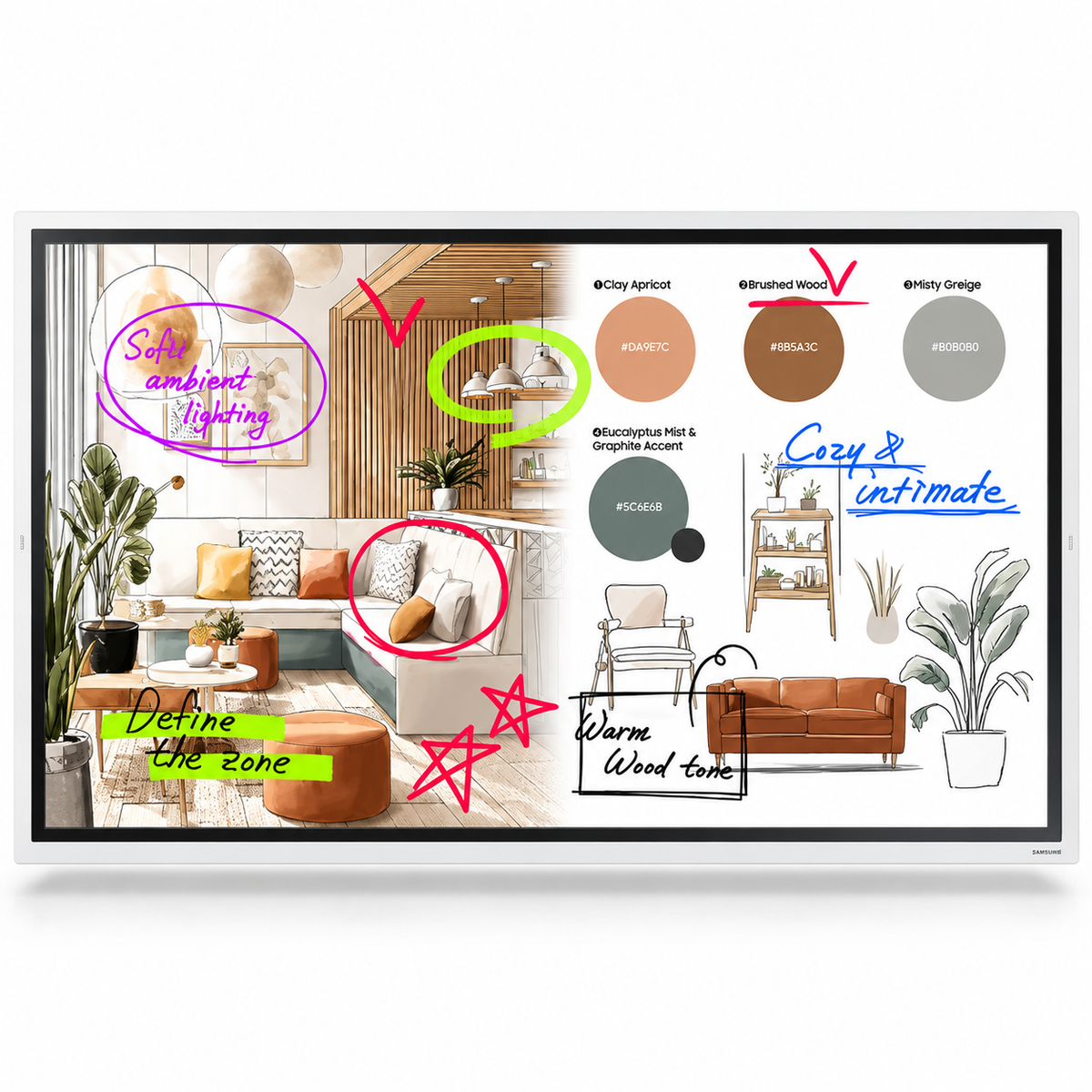

Samsung WM75FX Series 75-Inch 4K 8ms 60Hz UHD Flip Interactive Collaborative Display

Additional Information:

This Samsung WM75FX Series 75-Inch 4K 8ms 60Hz UHD Flip Interactive Collaborative Display is in great working condition.

The unit has been fully tested and is completely functional.

Included in the Box:

• Samsung WM75FX 75-inch interactive display

• Passive magnetic stylus/pen

• Power cable

• Quick Setup Guide

• Remote control

• Batteries for remote control

Packaging:

The item is securely packaged in Original box.

Samsung WM75FX Series 75-Inch 4K 8ms 60Hz UHD Flip Interactive Collaborative Display Description:

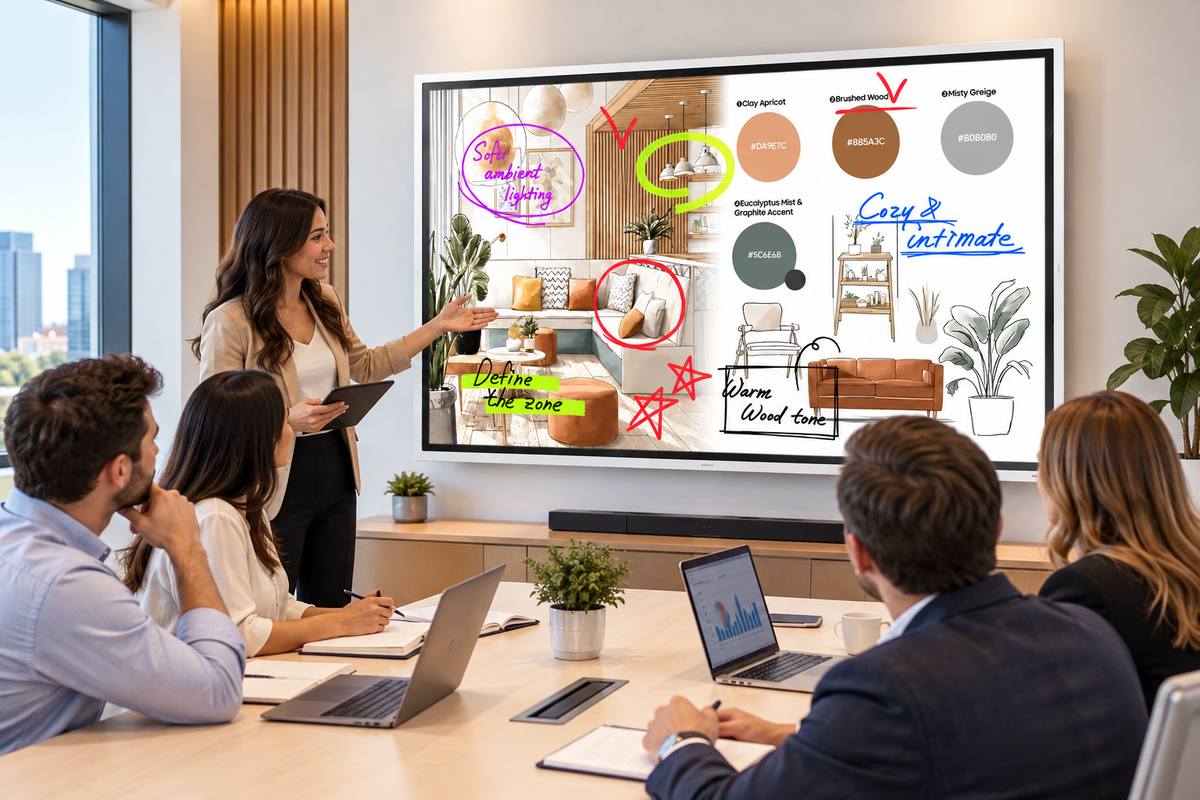

The Samsung WM75FX Series 75-inch Flip Collaborative Display is a large-format 4K interactive display designed for modern meeting rooms, classrooms, training environments, collaboration spaces, and professional presentations.

Combining a 75-inch 4K UHD touchscreen with integrated whiteboarding, wireless content sharing, screen mirroring, and Samsung Tizen OS, the WM75FX enables users to write, annotate, present, share content, and collaborate directly on the display.

The display supports multi-user interaction, precise digital writing, wireless connectivity, and a wide range of wired connections for computers and other presentation devices.

Samsung WM75FX Series 75-Inch 4K 8ms 60Hz UHD Flip Interactive Collaborative Display Features:

• 75-inch 4K UHD interactive display

• 3,840 x 2,160 native resolution

• 16:9 widescreen aspect ratio

• IR-based touchscreen technology

• Up to 20-point multi-touch support

• 2,048 levels of pen pressure sensitivity

• 26 ms writing latency

• 6.7 ms touch response time

• Integrated digital whiteboard and annotation functions

• Samsung Tizen 9.0 operating system

• Built-in Whiteboard, Brush, NoteOn, browser, document viewer, and media applications

• SmartView+ wireless screen-sharing capability

• Screen mirroring and Apple AirPlay support

• USB-C connectivity with up to 65 W Power Delivery

• Built-in Wi-Fi and Bluetooth 5.0

• Integrated 4-channel, 40 W speaker system

• Samsung Knox security features

• HDMI connectivity for external computers and presentation devices

• Ethernet and RS-232C connectivity for network and control applications

• VESA-compatible 400 x 400 mm mounting pattern

• Designed for landscape installation

Samsung WM75FX Series 75-Inch 4K 8ms 60Hz UHD Flip Interactive Collaborative Display Specifications:

Display Specifications

Display Size: 75 inches

Panel Type: VA

Backlight: Edge LED

Resolution: 3,840 x 2,160 pixels

Resolution Standard: 4K UHD

Aspect Ratio: 16:9

Typical Brightness: 450 cd/m²

Typical Contrast Ratio: 4,000:1

Viewing Angle: 178° horizontal / 178° vertical

Response Time: 8 ms GTG

Touch and Writing Specifications

Touch Technology: Infrared

Maximum Touch Points: 20

Touch Response Time: 6.7 ms

Writing Latency: 26 ms

Pressure Sensitivity: 2,048 levels

Pen Type: Passive magnetic pen

The touchscreen is designed to support simultaneous interaction by multiple users, making it suitable for collaborative whiteboarding, annotation, brainstorming, presentations, and interactive instruction.

Operating System and Processing

Operating System: Samsung Tizen 9.0

Processor: CA76 Quad Core, approximately 1.66–1.7 GHz

Memory: 8 GB RAM

Storage: 64 GB

Available Storage: Approximately 54 GB

The integrated operating system allows the display to perform many presentation, whiteboarding, collaboration, and content-viewing functions without requiring a dedicated external computer.

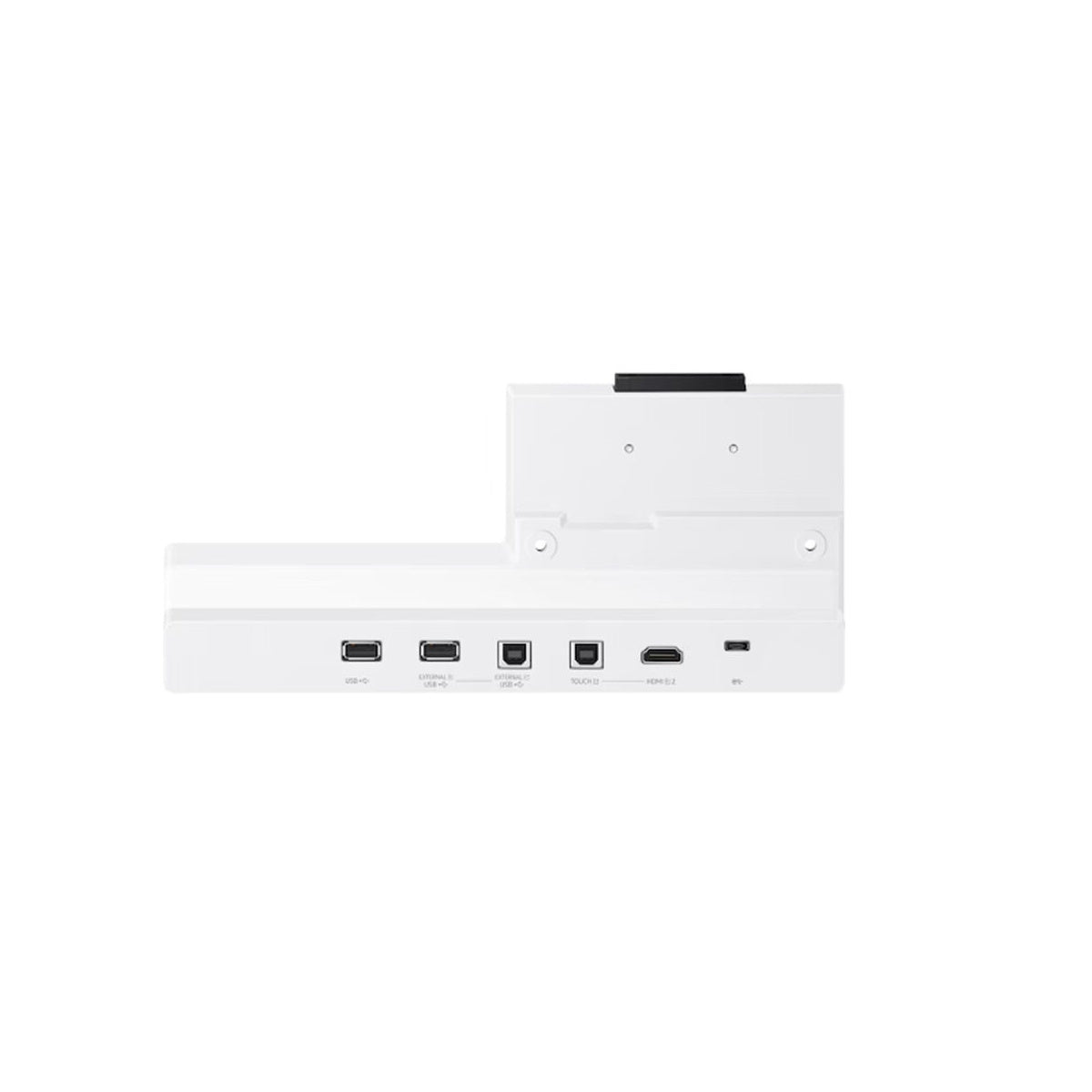

Connectivity

HDMI Inputs: 2

HDMI Output: 1

USB Connectivity: Front and rear USB ports

USB-C: 1 front-facing port

USB-C Power Delivery: Up to 65 W

Ethernet: RJ-45

Audio Output: 3.5 mm stereo

Control Interface: RS-232C and RJ-45

Wireless Connectivity: Wi-Fi and Bluetooth 5.0

Wireless Collaboration: Samsung SmartView+

Screen Mirroring: Supported

Apple AirPlay: Supported

Audio

Speaker Configuration: 4-channel

Speaker Output: 10 W x 4

Total Speaker Power: 40 W

Physical Specifications

Approximate Dimensions:

Width: 68.3 inches

Height: 40.9 inches

Depth: 3.3 inches

Approximate Weight: 118.2 lb

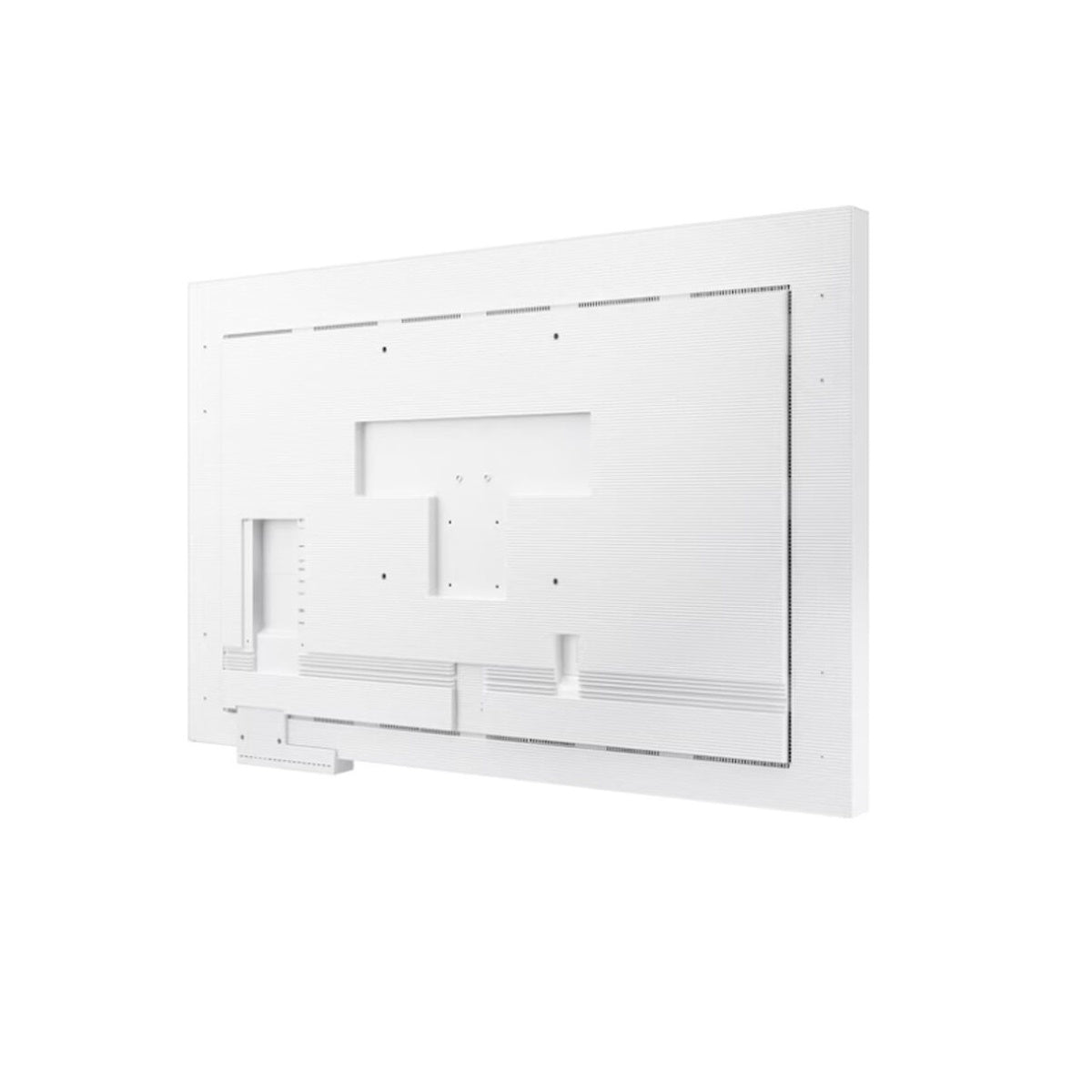

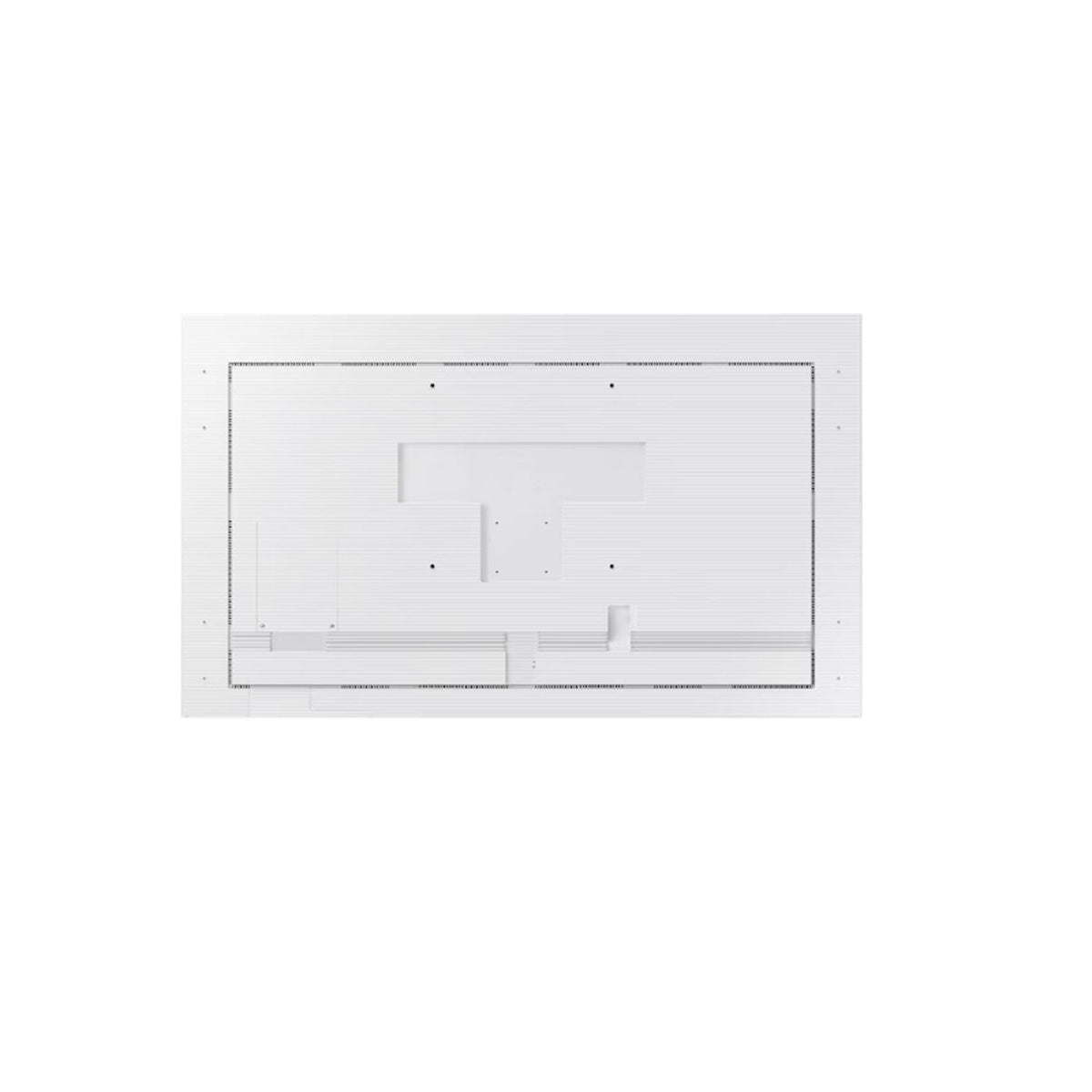

VESA Mounting Pattern: 400 x 400 mm

Installation Orientation: Landscape

Stand: Not included with the display

Recommended Applications

The Samsung WM75FX is designed for a variety of professional and educational environments, including:

• Corporate conference rooms

• Executive meeting rooms

• Training and learning centers

• Classrooms

• Higher-education facilities

• Collaboration rooms

• Government and institutional environments

• Presentation spaces

• Creative brainstorming environments

• Hybrid and wireless meeting spaces
