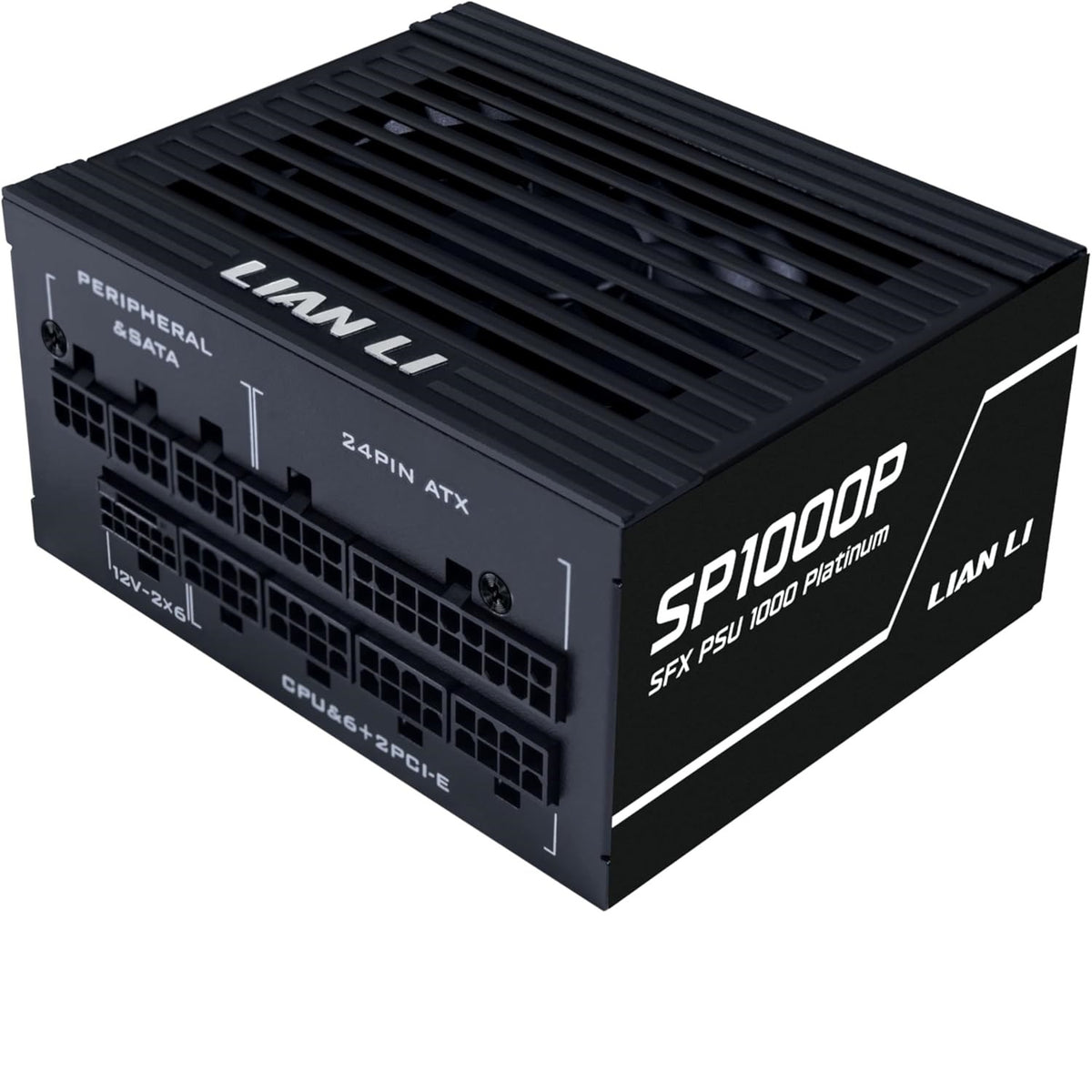

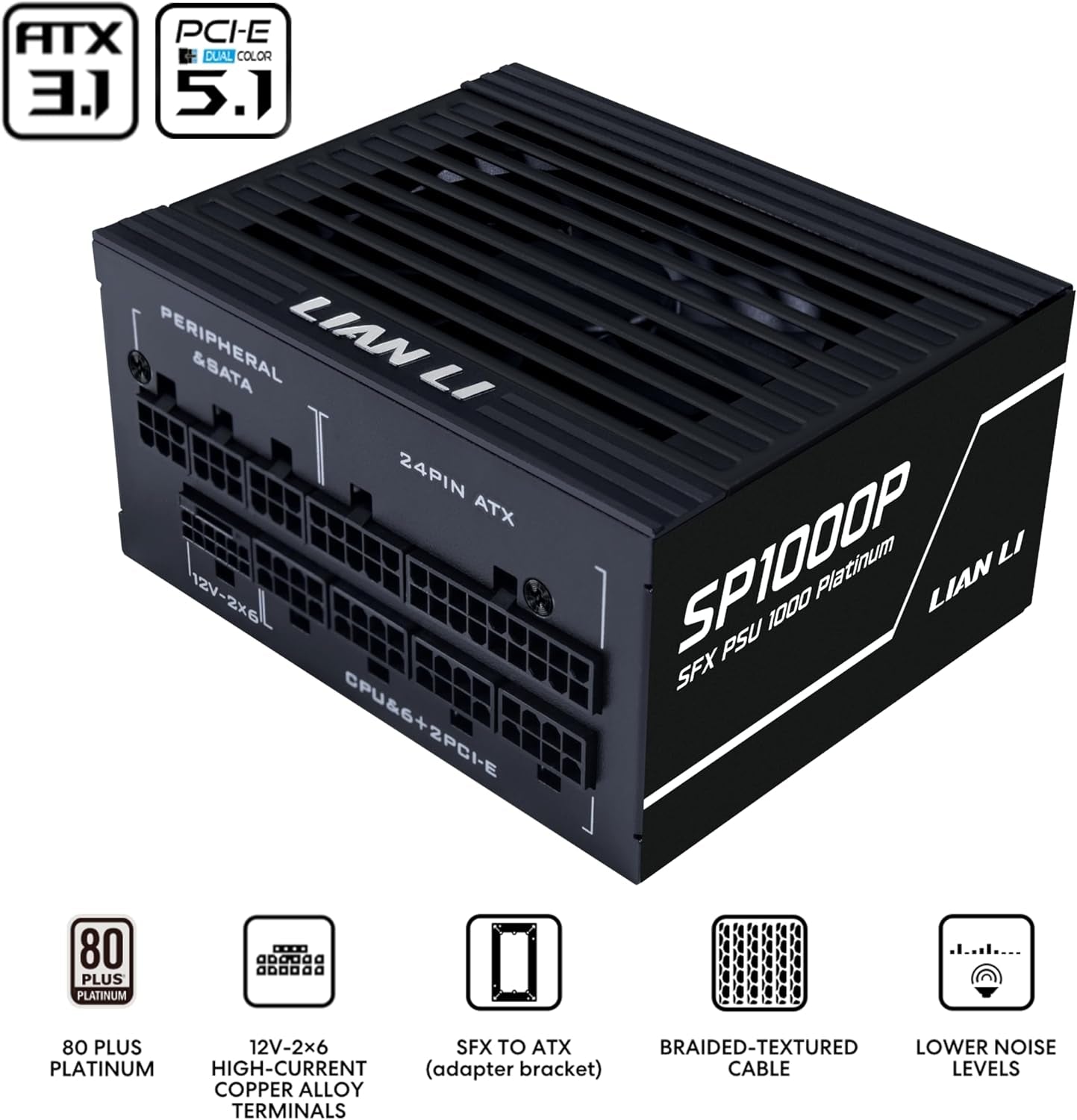

Lian Li 1000W Platinum Power Supply-SFX Form Factor-Black-SP1000P.B

Additional Information:

This Lian Li 1000W Platinum Power Supply-SFX Form Factor is in great working condition.

The unit has been fully tested and is completely functional.

Included in the Box:

• SFX Power Supply (PSU)
• SFX-to-ATX Bracket
• AC Power Cord
• Motherboard Cable
• 2 x CPU Cables
• 2 x PCIe Cables
• 16-pin Cable
• SATA Cable
• SATA + PATA Cable

Packaging:

The item is securely packaged in Original box.

Lian Li 1000W Platinum Power Supply-SFX Form Factor-Black-SP1000P.B Description:

The compact footprint makes it a perfect fit for small-form-factor cases, and the included SFX-to-ATX bracket extends compatibility to mid-tower and full tower builds as well.

Lian Li 1000W Platinum Power Supply-SFX Form Factor-Black-SP1000P.B Features:

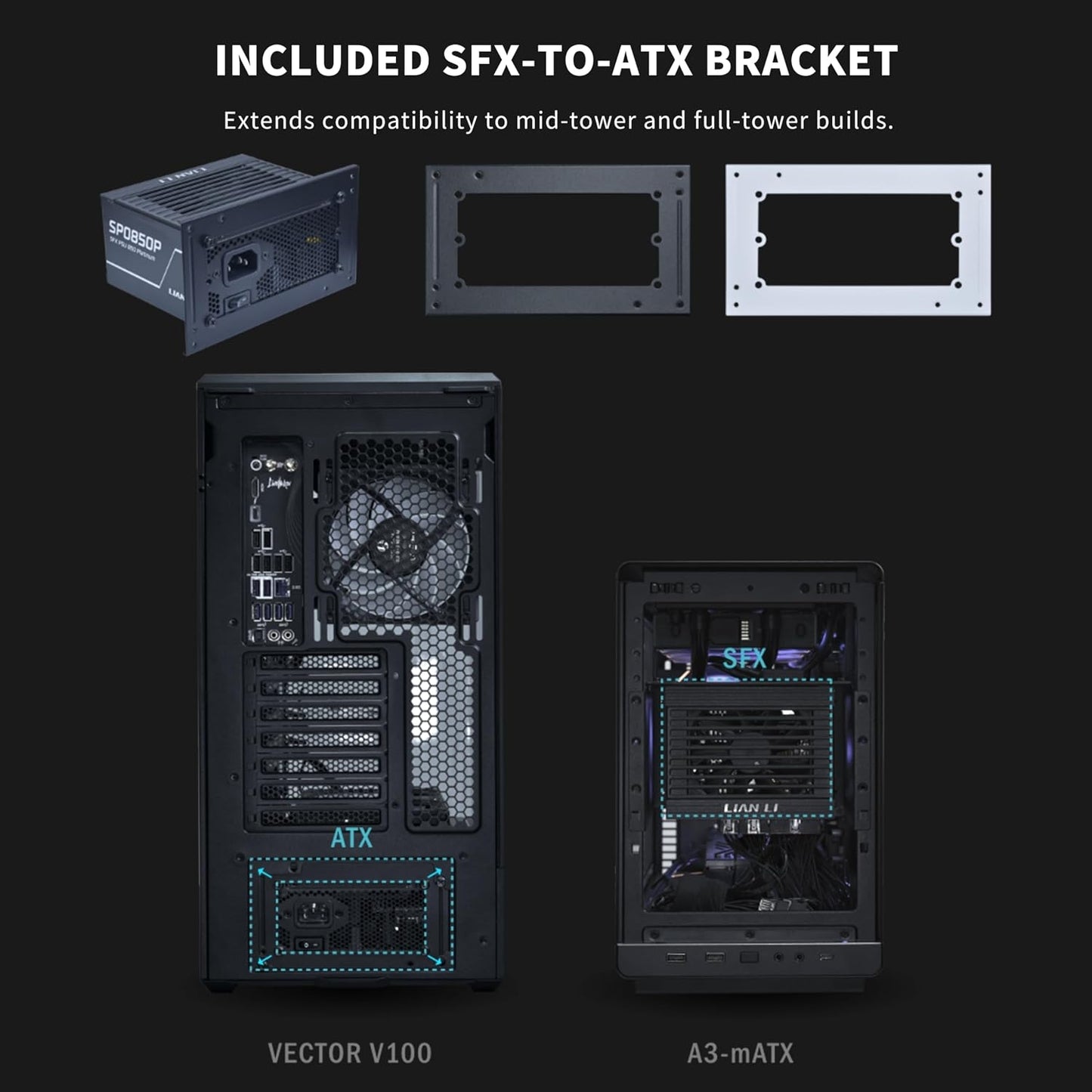

• Versatile Bracket for SFX and ATX Cases

  SFX-to-ATX Bracket (included): The included bracket allows seamless installation in both compact SFX and standard ATX cases, offering versatile compatibility.

• Color

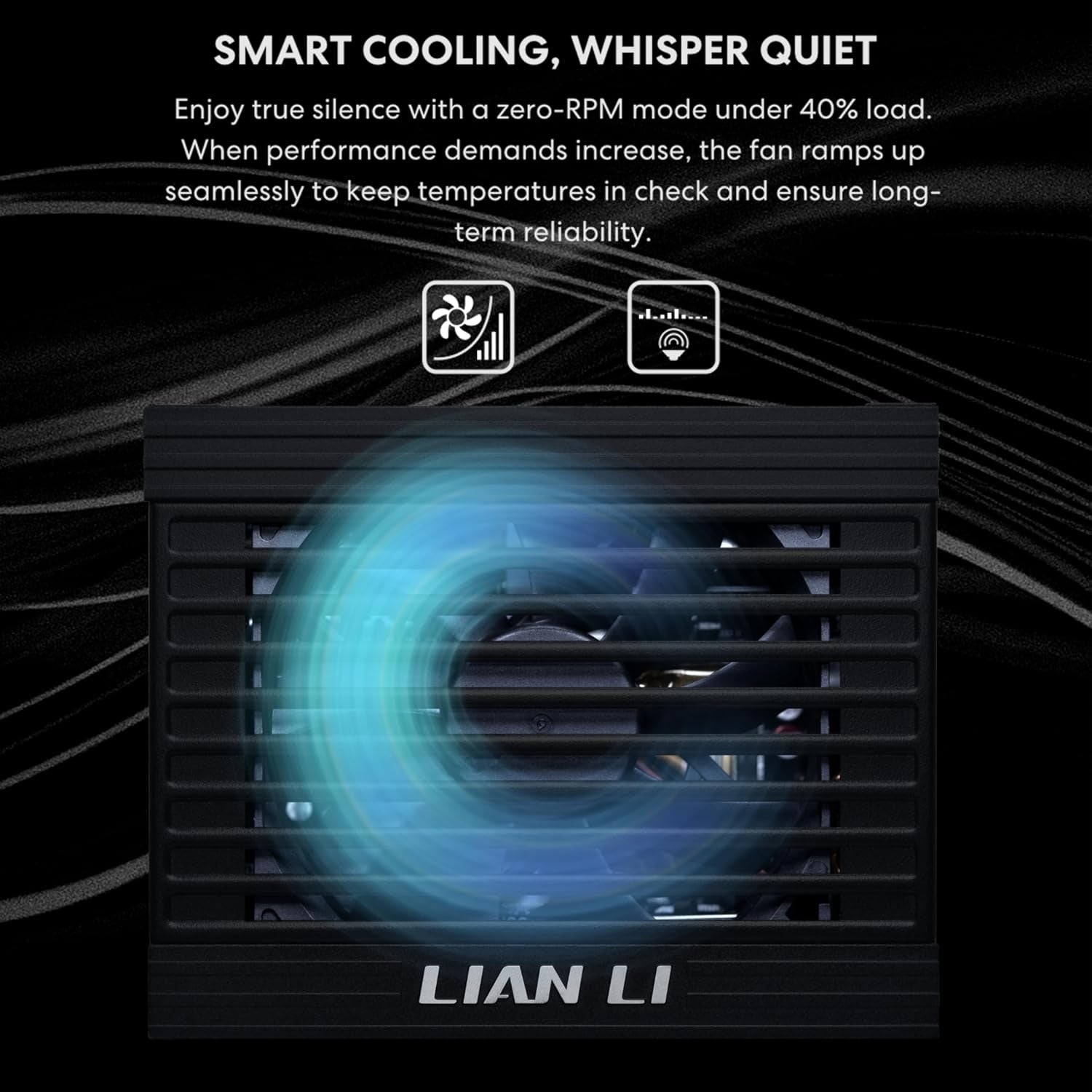

  Smart Cooling: The fanless mode activates at 40% load for silent operation and extended fan life, engaging the fan only when needed.

• Maximum Power

  Flexible Cables: Super flexible DC cables simplify cable routing for a clean, clutter-free build and improved airflow.

• MPN

  80Plus Platinum Certified: Delivers up to 92% efficiency, ensuring a cooler, quieter, and more energy-efficient system with rock-solid stability.

• Type

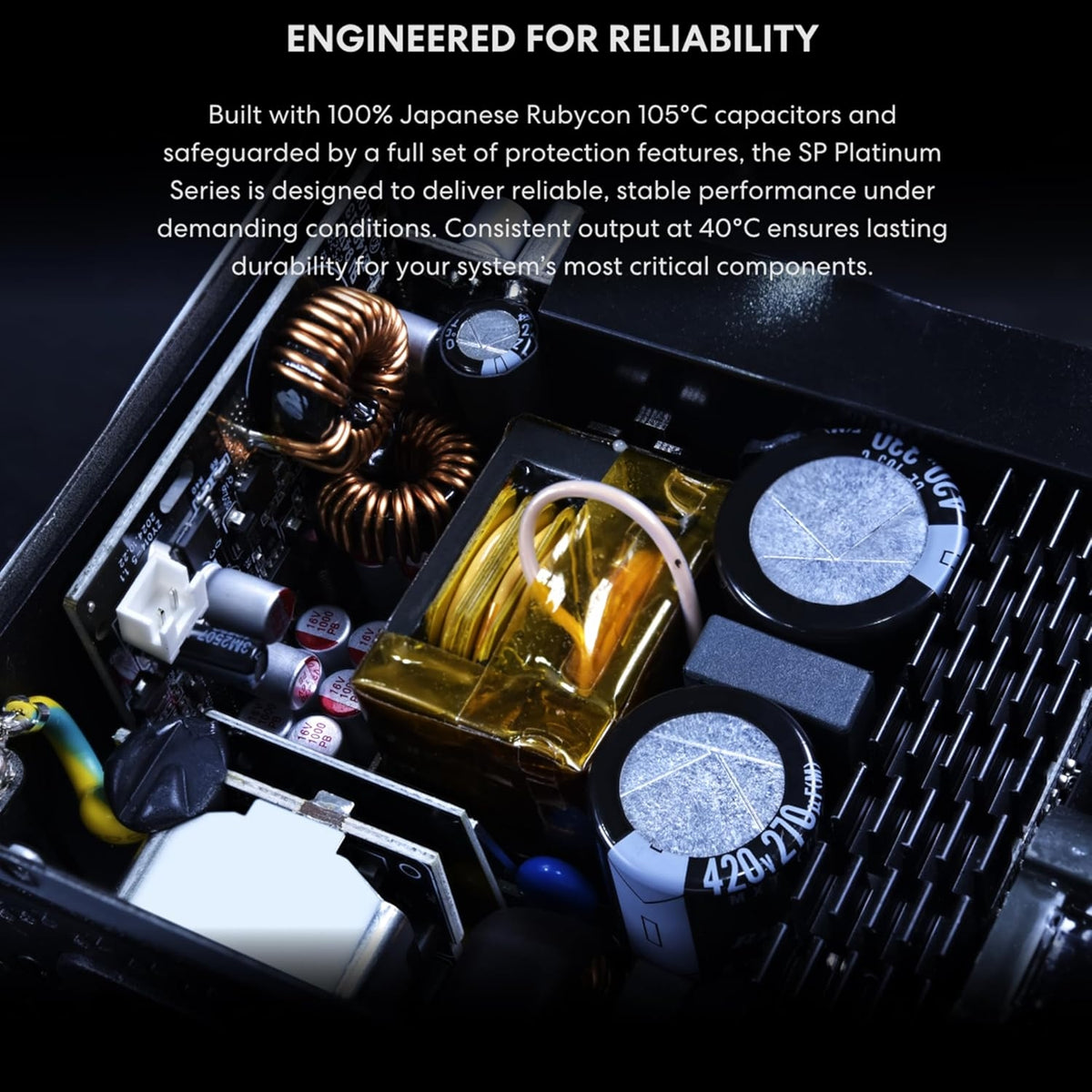

  100% Japanese Capacitors: Built with premium 105°C-rated capacitors for superior durability, stable performance, and a longer lifespan.

Lian Li 1000W Platinum Power Supply-SFX Form Factor-Black-SP1000P.B Specifications:

GENERAL SPECIFICATIONS

• Wattage: 1,000 Watts
• Form Factor: SFX
• Color: Black
• AMD/ATI CrossFire: Compatible
• NVIDIA SLI: Compatible
• Modular Design: Fully Modular

DRIVE & POWER CONNECTORS

• ATX Connector: 20+4-pin
• ATX 12V Connector: 2 x 4+4-pin

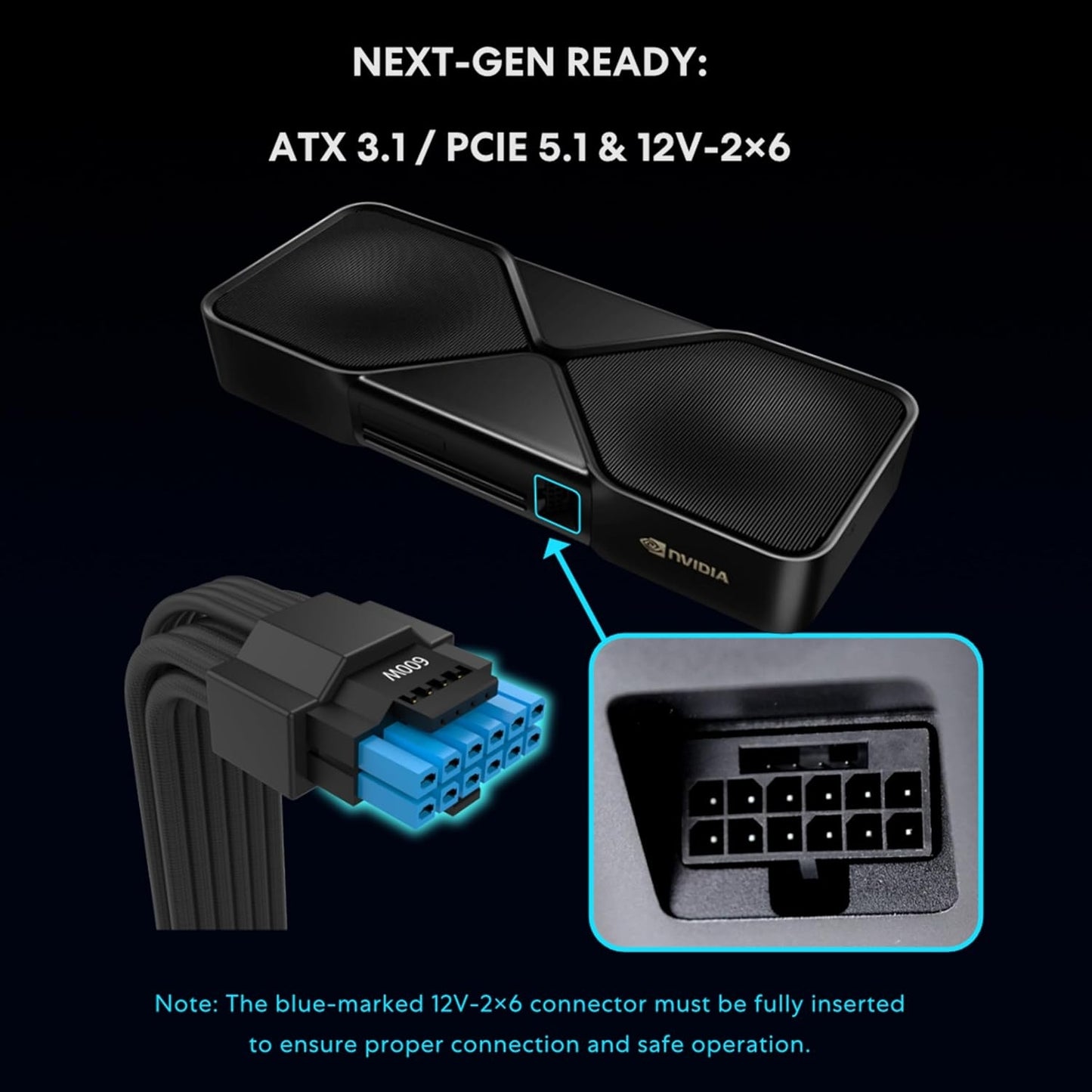

• Graphics Connectors: 3 x 6+2-pin, 1 x 12+4-pin
• Molex Connectors: 2
• SATA Connectors: 5

POWER SPECIFICATIONS

• Efficiency Rating: 80 PLUS Platinum Certified
• PFC: Active
• Input Voltage: 100V–240V
• Input Frequency Range: 50Hz–60Hz
• +12V Rails: 1
• +12V Output: 999.6 Watts / 83.3 Amps
• -12V Output: 3.6 Watts / 0.3 Amps
• +5V Output: 100.0 Watts / 20.0 Amps
• +5VSB Output: 15.0 Watts / 3.0 Amps
• +3.3V Output: 100.0 Watts / 20.0 Amps
• ATX Compliance: ATX 3.1

PROTECTION

• Over Power Protection (OPP)
• No Load Protection (NLP)
• Over Voltage Protection (OVP)
• Short Circuit Protection (SCP)
• Under Current Protection (UCP)
• Over Temperature Protection (OTP)
• Under Voltage Protection (UVP)
• Surge & Inrush Protection (SIP)

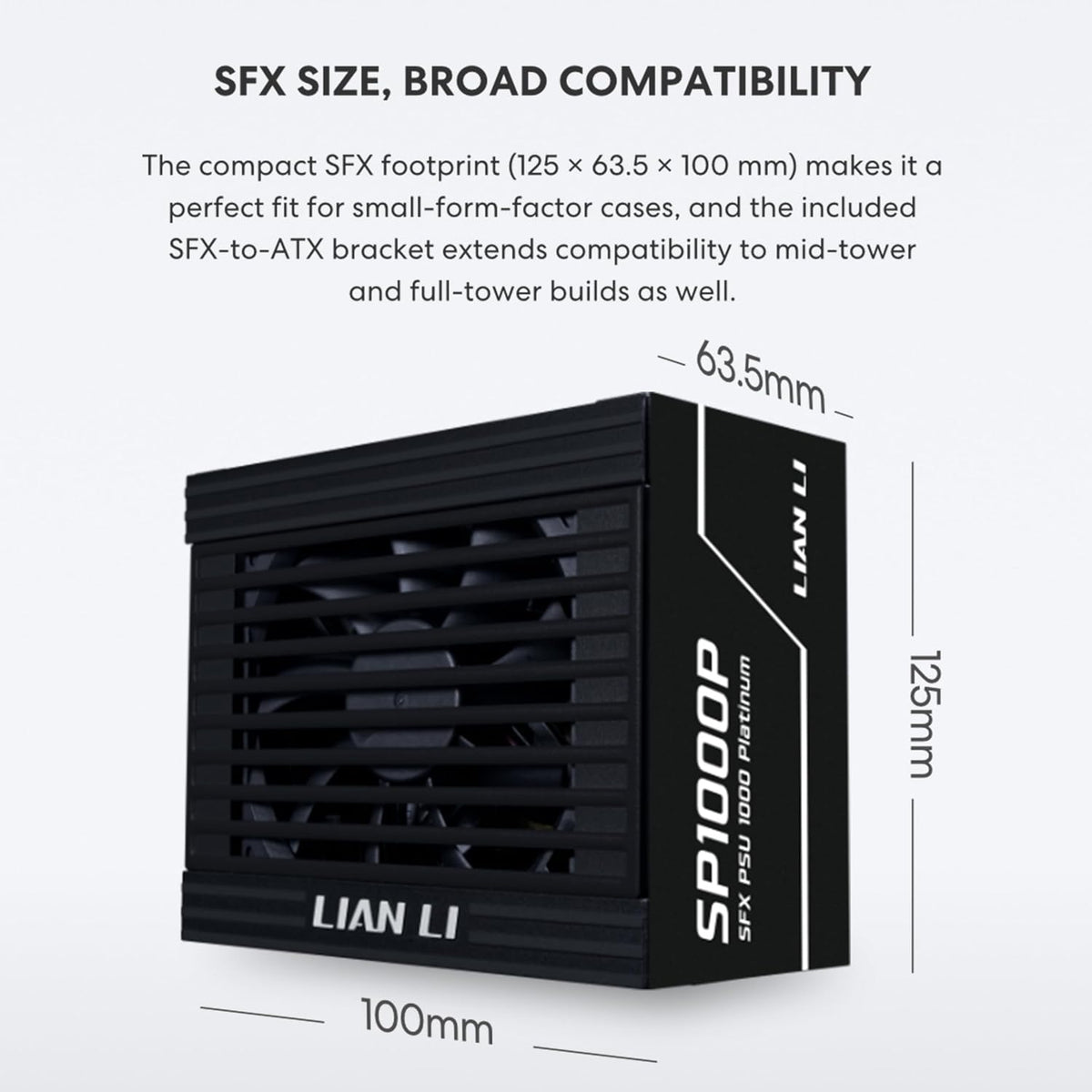

PHYSICAL SPECIFICATIONS

• Depth: 3.94 in. (100.00 mm)
• Width: 4.92 in. (125.00 mm)
• Height: 2.50 in. (63.50 mm)
• MTBF: 100,000 Hours

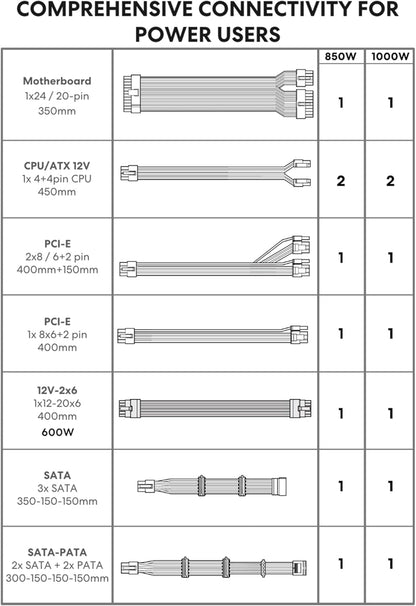

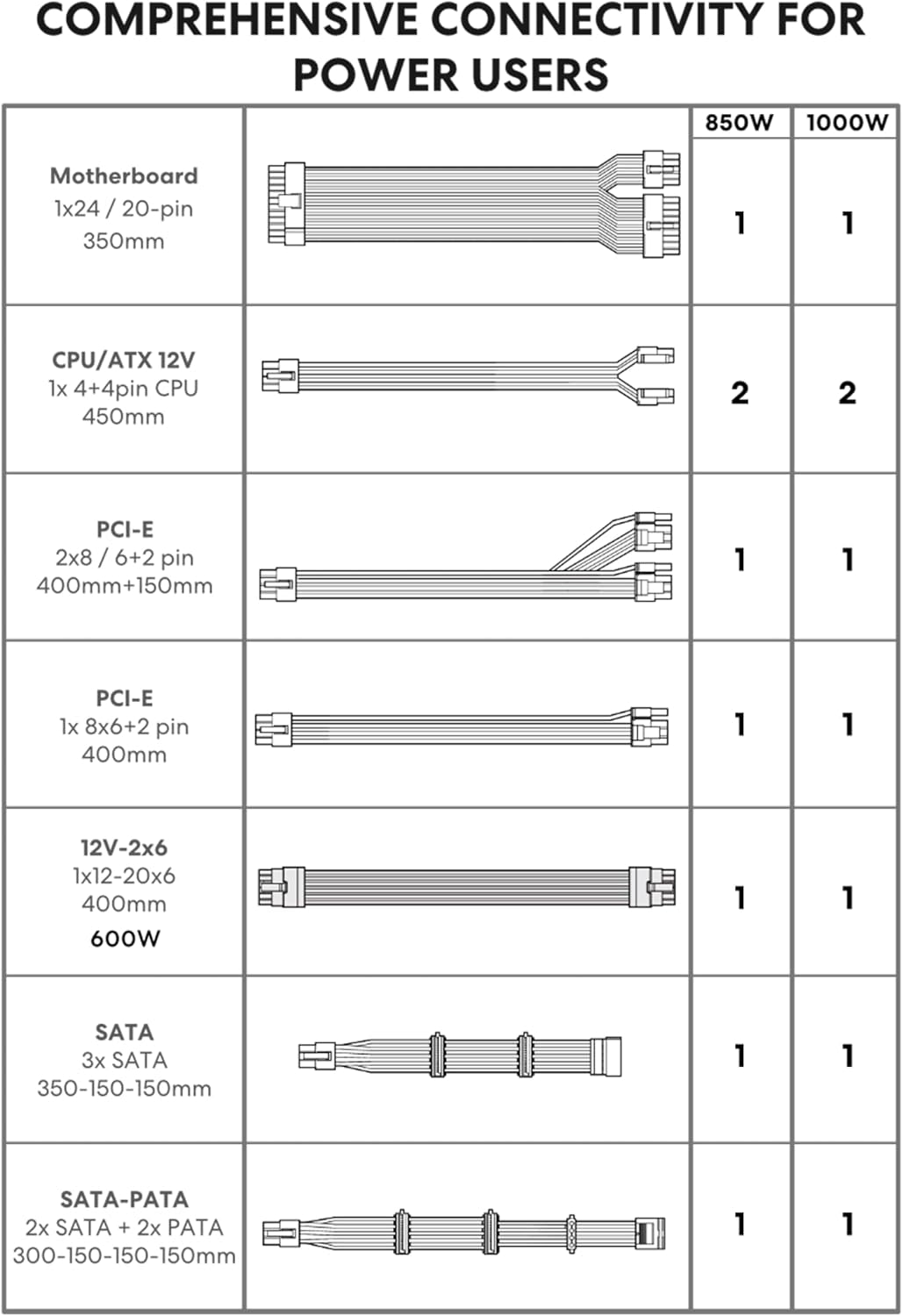

CABLE LENGTHS

• ATX Cable: 1 x 350 mm
• CPU Cables: 1 x 450 mm
• SATA Cable: 1 x 350 + 150 + 150 mm
• Peripheral Cable: 1 x 300 + 150 + 150 + 150 mm
• PCIe Cables:
  • 1 x 400 mm
  • 1 x 400 + 150 mm

PACKAGE CONTENTS

• SFX Power Supply (PSU)
• SFX-to-ATX Bracket
• AC Power Cord
• Motherboard Cable
• 2 x CPU Cables
• 2 x PCIe Cables
• 16-pin Cable
• SATA Cable
• SATA + PATA Cable
