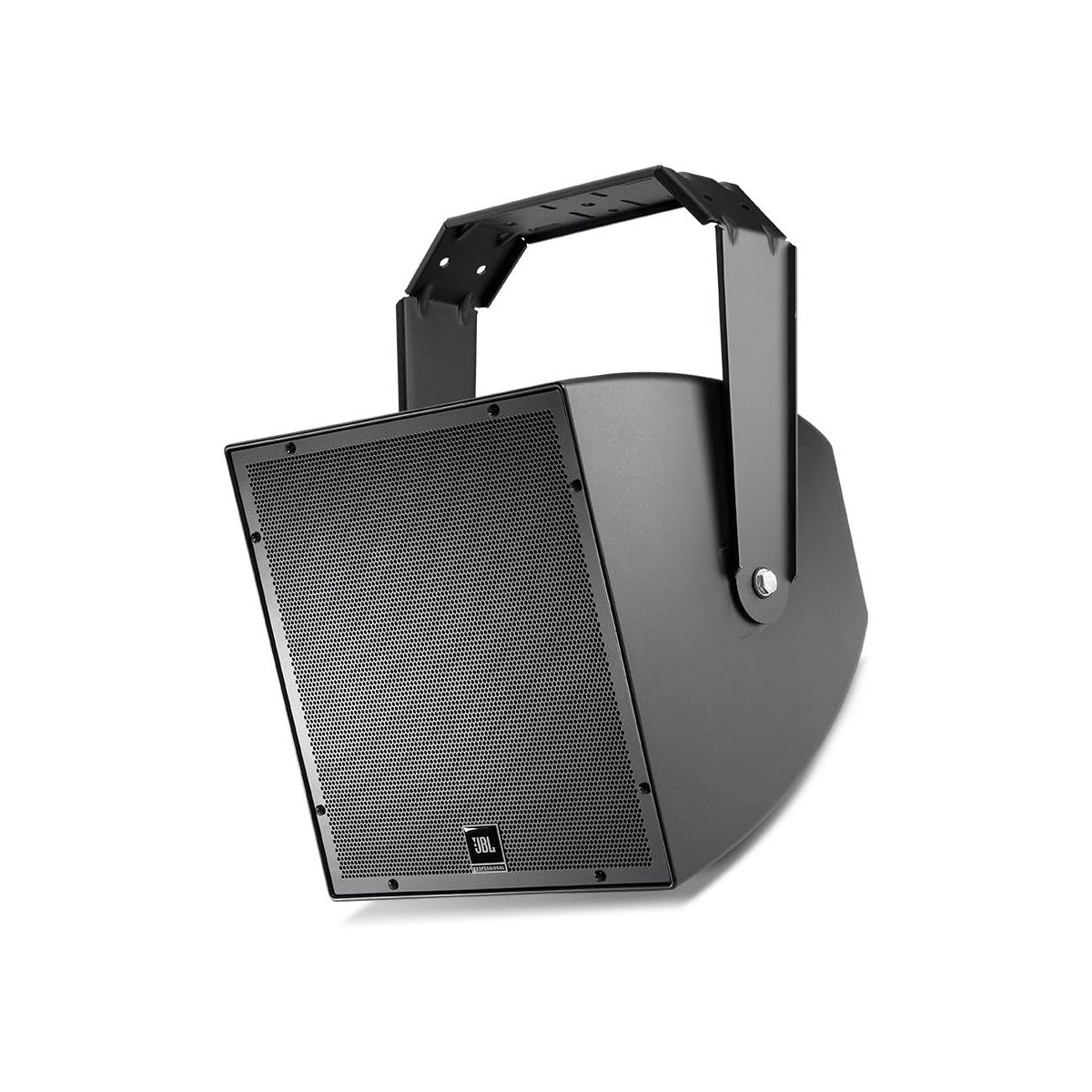

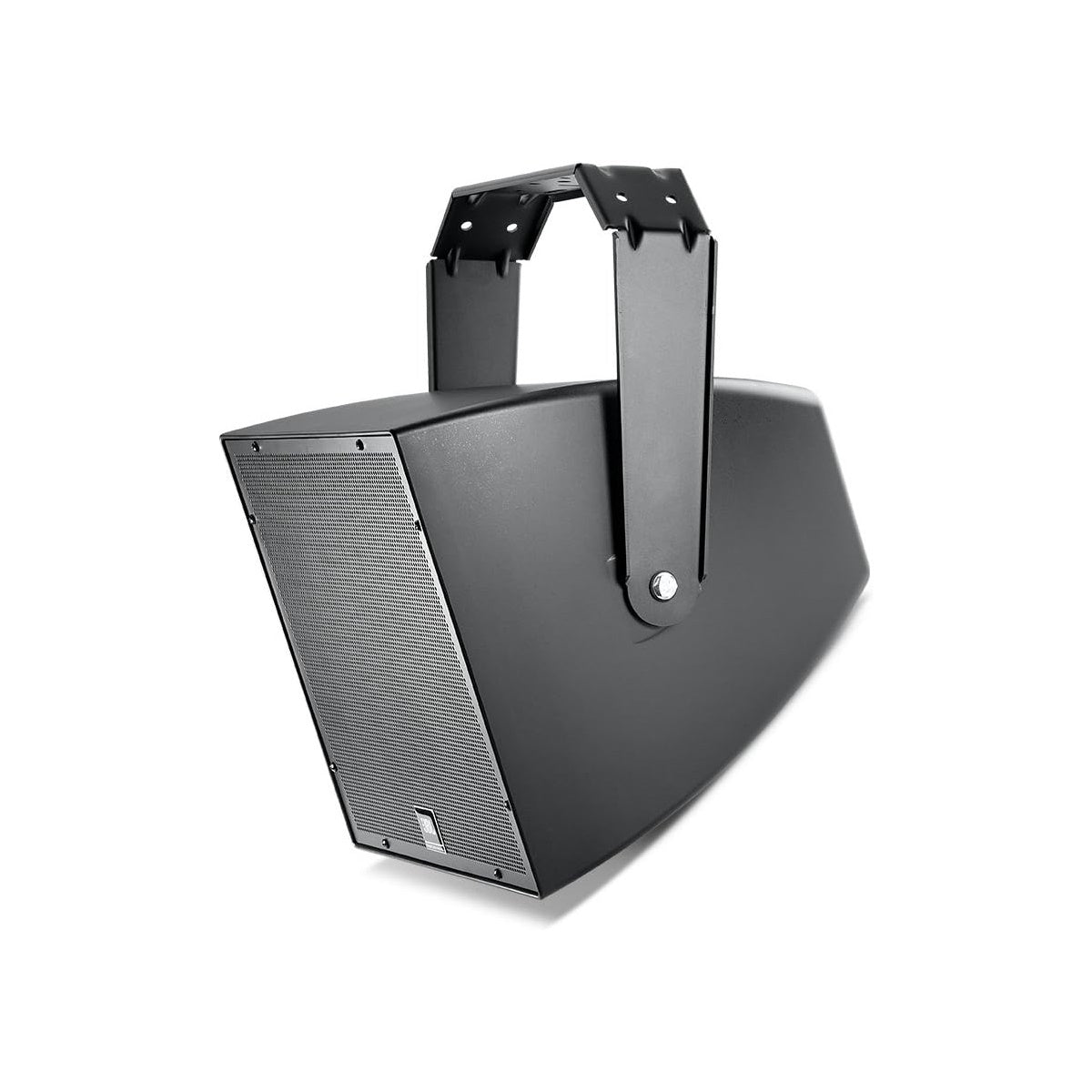

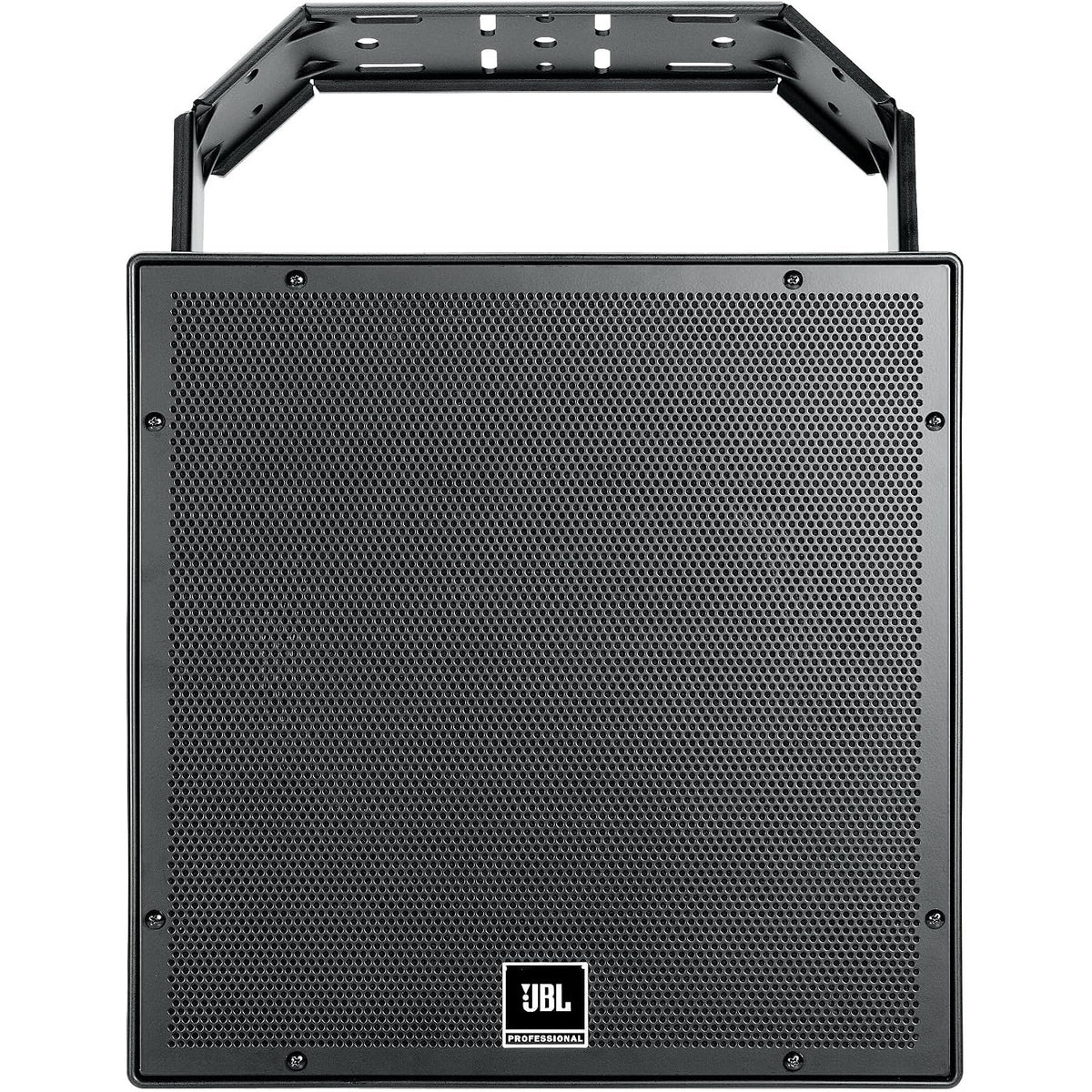

JBL Professional AWC129-BK All-Weather Compact 2-Way Coaxial Loudspeaker with 12-Inch LF, Black

Additional Information:

This JBL Professional AWC129-BK All-Weather Compact 2-Way Coaxial Loudspeaker is in New Open Box condition.

Included in the Box:

• 1 × JBL Professional AWC129-BK Loudspeaker
• 1 × Heavy-Duty U-Bracket
• Mounting Hardware
• Installation/Documentation Materials

Packaging:

The item is securely packaged in Original box.

JBL Professional AWC129-BK All-Weather Compact 2-Way Coaxial Loudspeaker with 12-Inch LF, Black Description

The JBL Professional AWC129-BK is a compact, full-range, 2-way coaxial loudspeaker designed for demanding indoor and outdoor applications. It combines a 12-inch Kevlar-reinforced low-frequency driver with a 1-inch high-frequency compression driver for clear speech reproduction, extended music response, and consistent broadband coverage.

With an IP56 weather-resistant rating, high power handling, and integrated 70V/100V transformer taps, the AWC129-BK is well suited for sports facilities, stadiums, racetracks, fairgrounds, water parks, swimming pools, themed entertainment venues, outdoor paging systems, and other permanent installations.

JBL Professional AWC129-BK All-Weather Compact 2-Way Coaxial Loudspeaker with 12-Inch LF, Black Features:

• Highly weather-resistant IP56-rated enclosure
• 2-way coaxial full-range loudspeaker design
• 12-inch (300 mm) Kevlar-reinforced woofer
• 75 mm (3-inch) low-frequency voice coil
• 1-inch (25 mm) high-frequency compression driver
• High-temperature polymer HF diaphragm with fluid cooling
• 90° x 90° broadband coverage pattern
• 400 W system power handling
• Up to 1,600 W peak power handling
• High sensitivity for high-SPL applications
• 55 Hz – 20 kHz frequency range
• Advanced high-slope passive crossover network
• Built-in 200 W 70V/100V multi-tap transformer
• Direct 8-ohm low-impedance operation
• SonicGuard HF overload protection
• Corrosion-resistant, powder-coated steel grille
• Heavy-duty ABS/fiberglass enclosure
• Includes matching U-bracket mounting hardware

JBL Professional AWC129-BK All-Weather Compact 2-Way Coaxial Loudspeaker with 12-Inch LF, Black Specifications:

Audio Performance

• Frequency Range (-10 dB): 55 Hz – 20 kHz
• Frequency Response (±3 dB): 80 Hz – 20 kHz
• Coverage Pattern: 90° x 90°
• Sensitivity: 96 dB, 2.83 V @ 1 m
• Maximum SPL: 122 dB
• Peak SPL: 128 dB
• Nominal Impedance: 8 Ohms
• Crossover Frequency: 1.5 kHz
• Crossover Type: Passive

Power Handling

• System Power Rating: 400 W
• Peak Power: 1,600 W
• 100-Hour Power Rating: 250 W
• 100-Hour Peak Rating: 1,000 W

Transformer

• Transformer Power: 200 W
• 70V Taps: 200 W, 100 W, 50 W, 25 W
• 100V Taps: 200 W, 100 W, 50 W
• Direct Low-Impedance Operation: 8 Ohms

Drivers

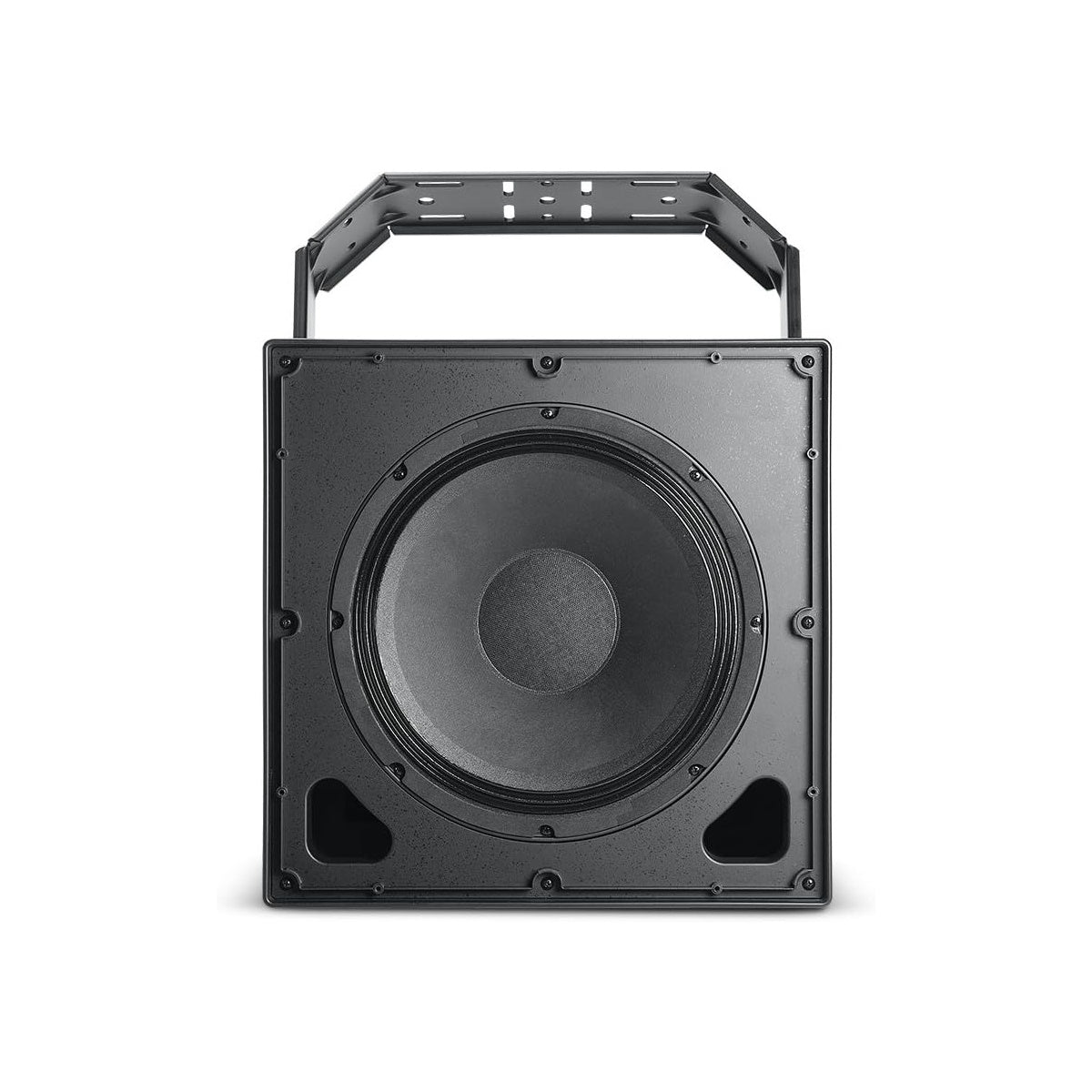

• Low-Frequency Driver: 12-inch (300 mm) woofer
• LF Cone: Kevlar-reinforced, weather-treated
• LF Voice Coil: 3-inch (75 mm)
• High-Frequency Driver: 1-inch (25 mm) compression driver
• HF Diaphragm: High-temperature polymer
• HF Protection: SonicGuard overload protection

Construction

• Enclosure: Heavy-duty ABS/fiberglass construction
• Grille: Corrosion-resistant, powder-coated steel
• Environmental Rating: IP56
• Color: Black
• Mounting: Heavy-duty U-bracket included
• Mounting Points: M10 attachment points
• Safety Attachment: M6 secondary safety point

Dimensions and Weight

• Width: 15.8"
• Height: 15.8"
• Cabinet Depth: 17.5"
• Depth with Gland Nut: 18.5"
• Overall Depth with Bracket: 21.4"
• Net Weight: 35.0 lb
• Weight with U-Bracket: 41.5 lb
• Shipping Weight: 51.5 lb
