BRAND: HP
MODEL: 4Y1E2UT
SKU: SKU:4Y1E2UT-O

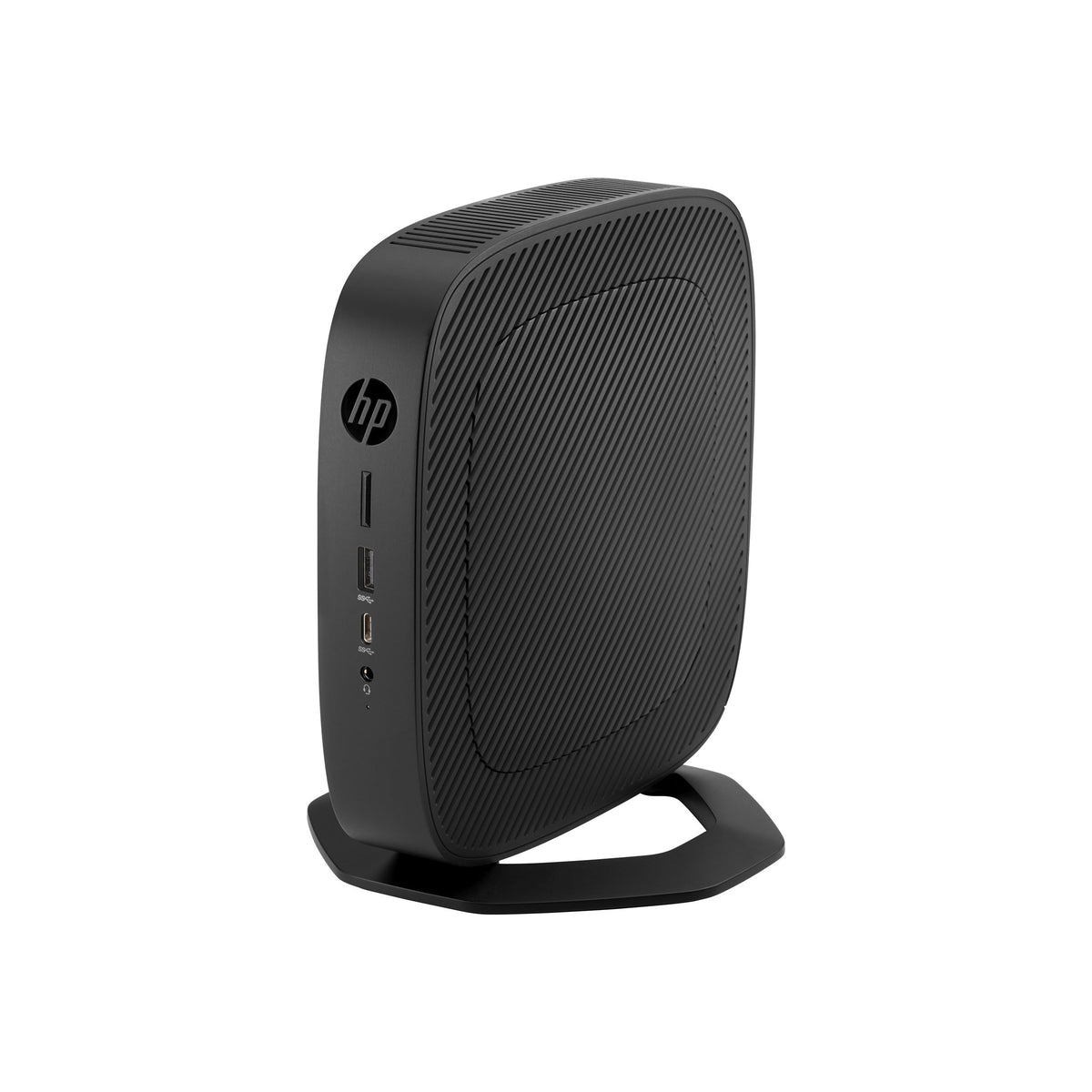

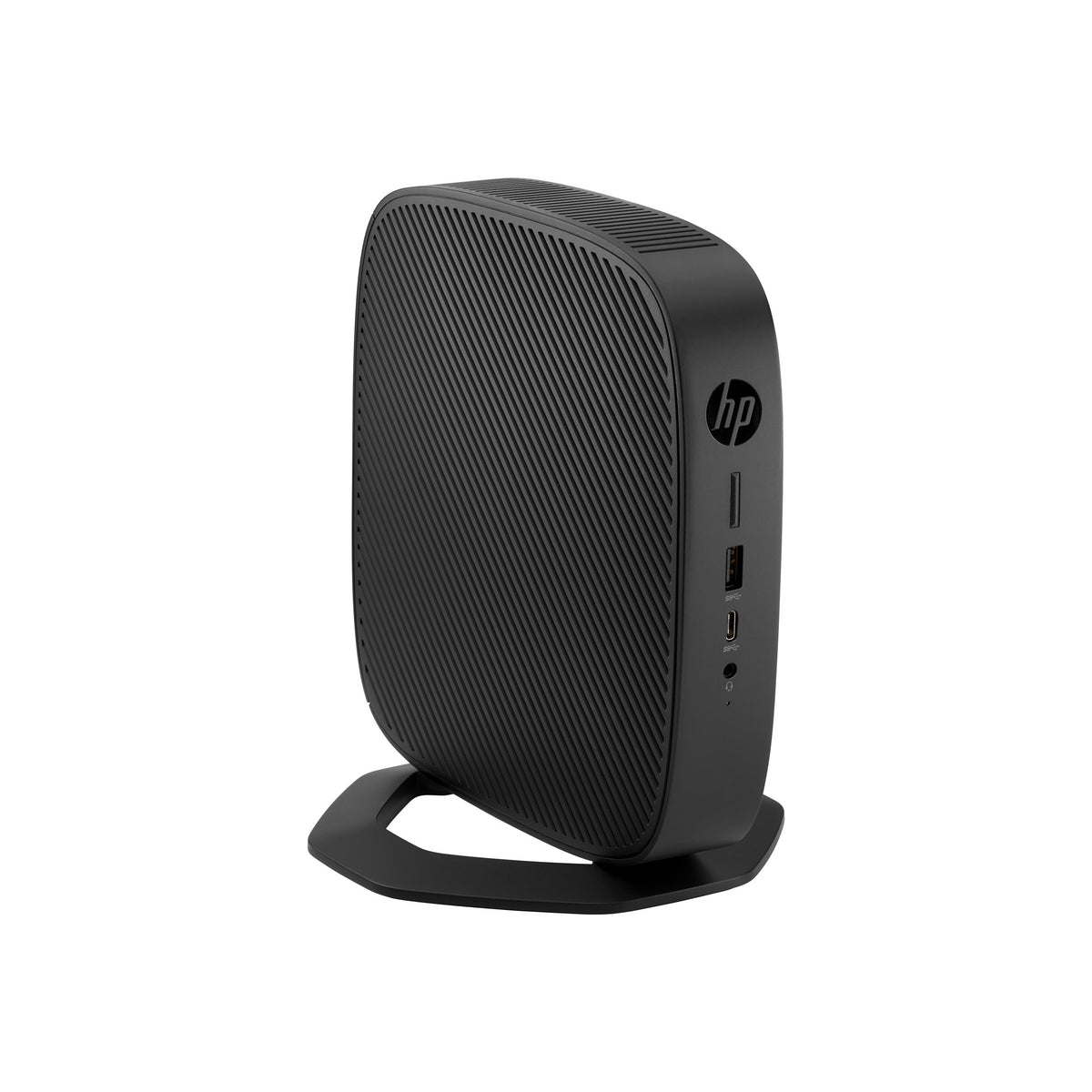

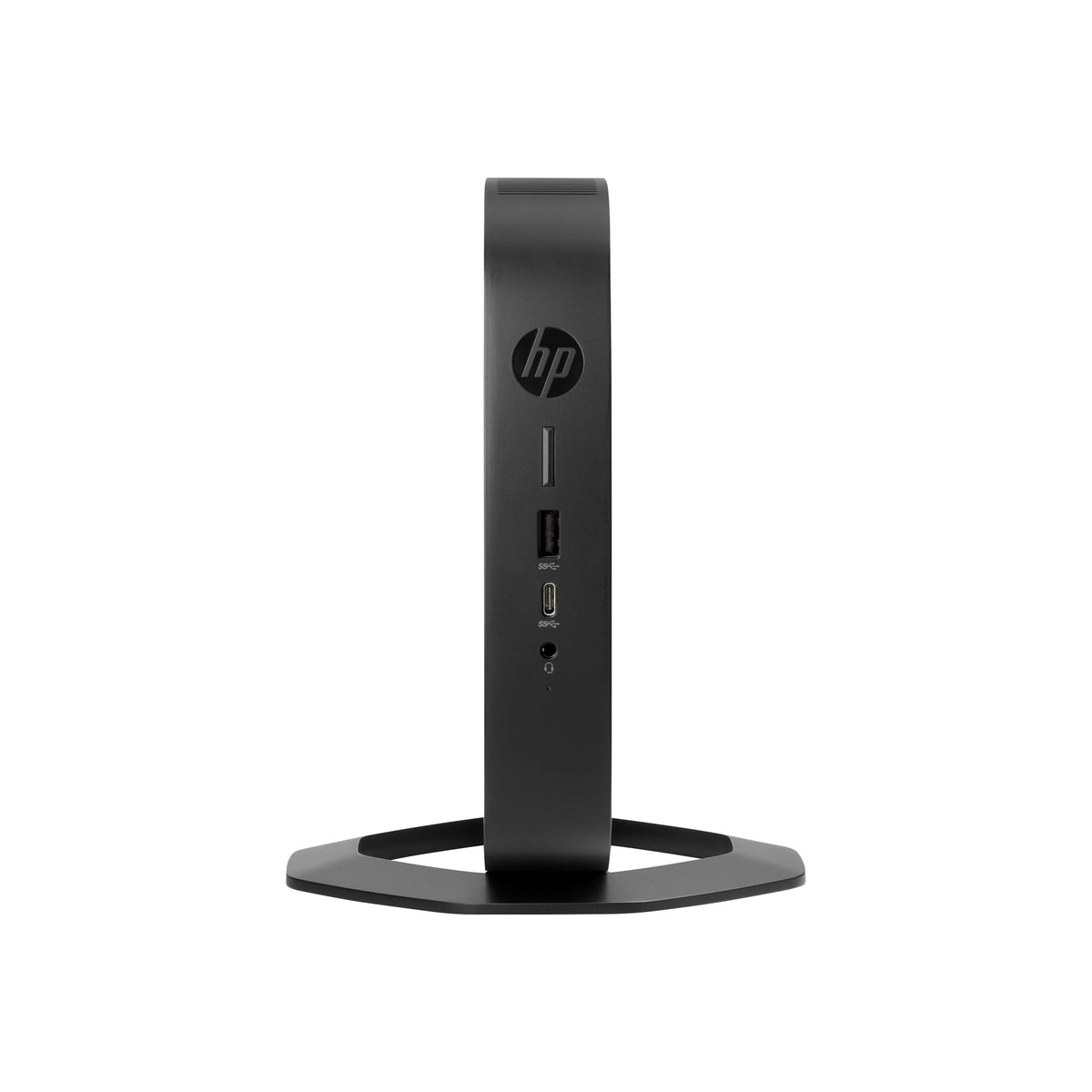

HP t540 Thin Client, AMD Ryzen R1305G, 1.50GHz, 8GB RAM/64GB Flash, Win10IoT - 4Y1E2UT
HP t540 Thin Client, AMD Ryzen R1305G, 1.50GHz, 8GB RAM/64GB Flash, Win10IoT - 4Y1E2UT
Condition: New Open Box
Warranty: 90 Days
Couldn't load pickup availability
Share
Additional Information:
This HP t540 Thin Client is in New Open Box condition.
Included in the Box:
HP t540 Thin Client desktop unit
External AC power adapter
Power cord
Documentation and setup information
Packaging:
The item is securely packaged in Original box.
HP t540 Thin Client, AMD Ryzen R1305G, 1.50GHz, 8GB RAM/64GB Flash, Win10IoT - 4Y1E2UT Description:
The HP t540 Thin Client is a compact desktop computing device designed primarily for business environments, virtual desktop infrastructure (VDI), cloud-based applications, and centralized IT management.
It features an AMD Ryzen Embedded R1305G dual-core processor, 8 GB of DDR4 memory, 64 GB of flash storage, and integrated AMD Radeon Vega 3 graphics. Its compact design makes it suitable for offices, call centers, healthcare facilities, educational institutions, and other organizations that use centrally managed computing environments.
Unlike a traditional desktop computer, a thin client is primarily intended to access applications and desktops hosted on remote servers or virtual desktop platforms. It can also perform certain local computing tasks, depending on the installed operating system and software.
The HP t540 supports dual-display connectivity, Gigabit Ethernet, multiple USB ports, and configurable video and connectivity options.
HP t540 Thin Client, AMD Ryzen R1305G, 1.50GHz, 8GB RAM/64GB Flash, Win10IoT - 4Y1E2UT Features:
Processor: AMD Ryzen Embedded R1305G
Dual-core, 4-thread processor.
1.50 GHz base speed, up to 2.80 GHz boost.
Memory: 8 GB DDR4 RAM
Supports everyday thin-client workloads.
Upgradeable up to 16 GB, subject to configuration.
Storage: 64 GB Flash
- Compact storage for the operating system and essential applications.
Graphics: AMD Radeon Vega 3
Integrated graphics.
Supports up to two displays.
Operating System: Windows 10 IoT Enterprise
- Designed for business environments and managed computing.

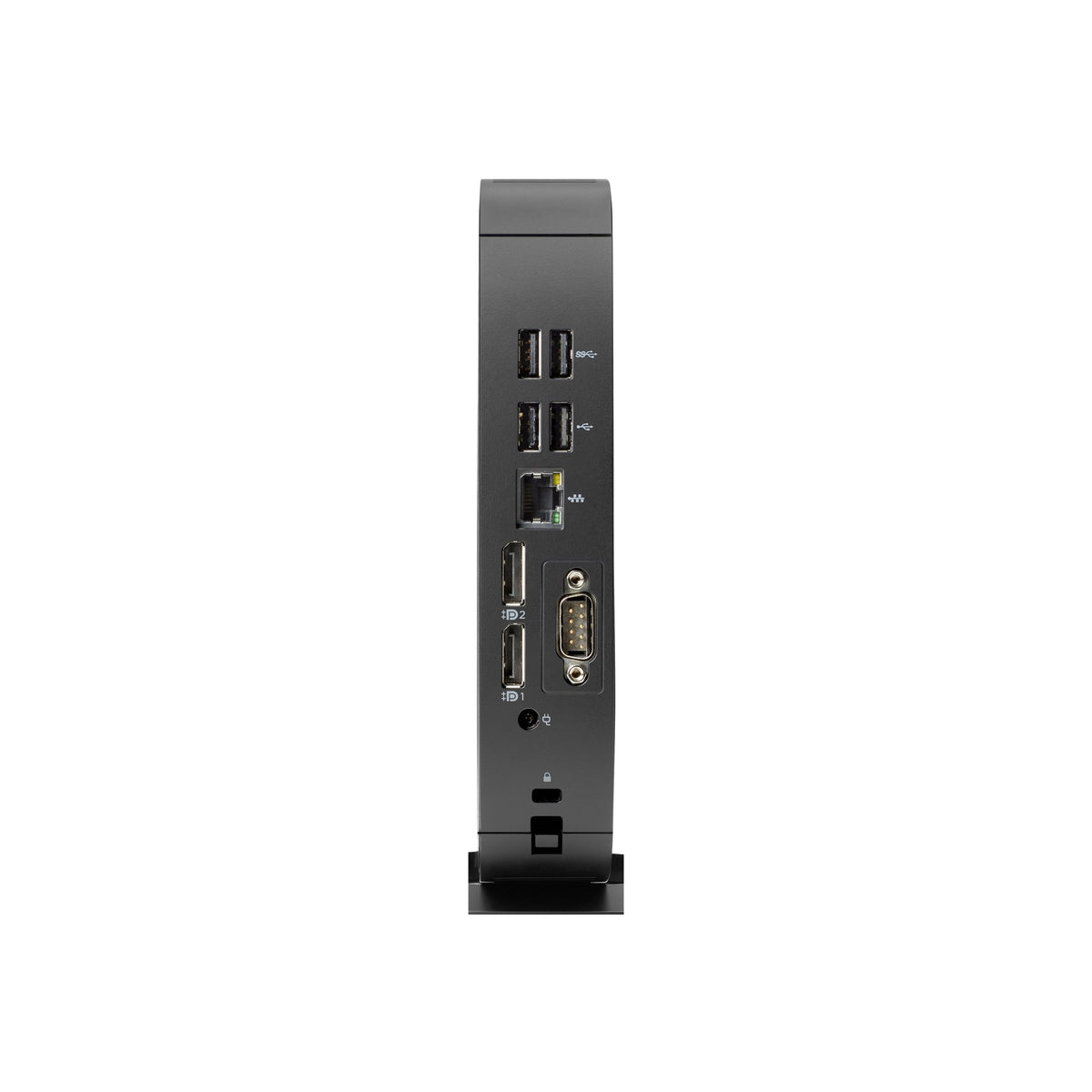

Connectivity
Gigabit Ethernet.
USB-C and USB-A ports.
Two DisplayPort 1.2 outputs.
Headphone/microphone combo jack.
Compact Design
Space-saving desktop form factor.
Designed for virtual desktops, remote applications, and centralized IT management.
HP t540 Thin Client, AMD Ryzen R1305G, 1.50GHz, 8GB RAM/64GB Flash, Win10IoT - 4Y1E2UT Specifications:
| General Information | |
|---|---|
| Category | Thin client or diskless workstations |
| Description | HP t540 - Thin client - USFF 1 x Ryzen Embedded R1305G / up to 2.8 GHz - RAM 8 GB - flash - eMMC 64 GB - Radeon Vega 3 - Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) - Win 10 IoT Enterprise 2019 LTSC for Thin Clients 64-bit - monitor: none - keyboard: US - Smart Buy - TAA Compliant |
| Manufacturer | HP, Inc. |
| UNSPSC | 43211506 |
| Main Specifications | |
| Chassis / Form Factor | Ultra small form factor |
| Dimensions & Weight / Depth | 20 cm |
| Dimensions & Weight / Height | 20 cm |
| Dimensions & Weight / Weight | 969 g |
| Dimensions & Weight / Width | 3.5 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 64 GB |
| Header / Brand | HP |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color | Black |
| Networking / Data Link Protocol |
|
| Networking / Wireless LAN Supported | Yes |
| Networking / Wireless Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 10 IoT Enterprise 2019 LTSC for Thin Clients 64-bit Edition |
| Packaged Quantity | 1 |
| Processor / Clock Speed | 1.5 GHz |
| Processor / Manufacturer | AMD |
| Processor / Number of Cores | Dual-Core |
| Processor / Processor Number | R1305G |
| Processor / Type | Ryzen Embedded |
| RAM / Data Integrity Check | Non-ECC |
| RAM / Form Factor | SO-DIMM 260-pin |
| RAM / Memory Speed | 2400 MHz |
| RAM / Technology | DDR4 SDRAM |
| Service & Support / Type | 3-year warranty |
| System / Hard Drive Capacity | 64 GB |
| System / Type | Thin client |
| Video Output / Graphics Processor | AMD Radeon Vega 3 |
| Cache Memory | |
| Cache Per Processor | 4 MB |
| Installed Size | L3 cache - 4 MB |
| Dimensions & Weight | |
| Depth | 20 cm |
| Height | 20 cm |
| Weight | 969 g |
| Width | 3.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.879 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| Slots | 1 (total) / 0 (free) x M.2 Card (for internal storage) |
| General | |
| Localization | Language: English / region: United States |
| Product Form Factor | USFF |
| Type | Thin client |
| Graphics Controller | |
| Graphics Processor | AMD Radeon Vega 3 |
| Max Monitors Supported | 2 |
| Video Interfaces | DisplayPort |
| Hard Drive | |
| Capacity | 1 x 64 GB |
| Type | Flash - eMMC |
| Input Device | |
| Type | Mouse, keyboard |
| Keyboard | |
| Interface | USB |
| Keyboard Name | HP USB Business Slim Keyboard |
| Localization & Layout | US |
| Manufacturer Warranty | |
| Service & Support | |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, UL, BSMI, GS, CB, CCC, ICES Class B, WEEE, KCC Class B, AS/NZS, ERP, RoHS2, VCCI Class B, CP65, CISPR Class B, SEPA, low halogen, HP GSE, EN, CNS, IEEE 1680.1 |
| Manufacturer Selling Program | HP Smart Buy |
| Security Slot Type | Kensington security slot |
| TAA Compliant | Yes |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Monitor | |
| Monitor Type | None. |
| Mouse | |
| Interface | USB |
| Technology | Optical |
| Networking | |
| Compliant Standards | IEEE 802.1x |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Ethernet Controller | Realtek RTL8111HSH |
| Features | Dual stream (2x2) |
| Wireless LAN Supported | Yes |
| Wireless NIC | Realtek RTL8852AE |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 2019 LTSC for Thin Clients 64-bit Edition English |
| Software | Microsoft Internet Explorer, Citrix ICA, Microsoft RDP, Microsoft Windows Media Player, HP Device Manager, LogOn Manager, Windows Defender, VMware Horizon View, Citrix HDX, Microsoft RemoteFX, HP ThinUpdate, HP Easy Shell, Microsoft SCCM/EDM-agent, HP USB Port Manager, HP Write Manager, Microsoft Bitlocker Encryption, Microsoft Unified Write Filter |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power adapter |
| Power Device Name | HP Smart AC Adapter |
| Power Provided | 45 watt |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| Clock Speed | 1.5 GHz |
| CPU | AMD Ryzen Embedded R1305G |
| CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| L2 cache | 2 x 512 KB |
| Max CPU Qty | 1 |
| Max Turbo Speed | 2.8 GHz |
| Number of Cores | Dual-Core |
| RAM | |
| Configuration Features | 1 x 8 GB |
| Effective Memory Speed | 2400 MHz |
| Form Factor | SO-DIMM 260-pin |
| Installed Size | 8 GB (installed) / 16 GB (max) |
| Rated Memory Speed | 2400 MHz |
| Slots | 1 (total) / 0 (empty) |
| Technology | DDR4 SDRAM - non-ECC |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| EPEAT Compliant | EPEAT Silver |
| TCO Certified | TCO Certified Desktops 9 |
