BRAND: ERG
MODEL: 45-272-216
SKU: SKU:45-272-216-O

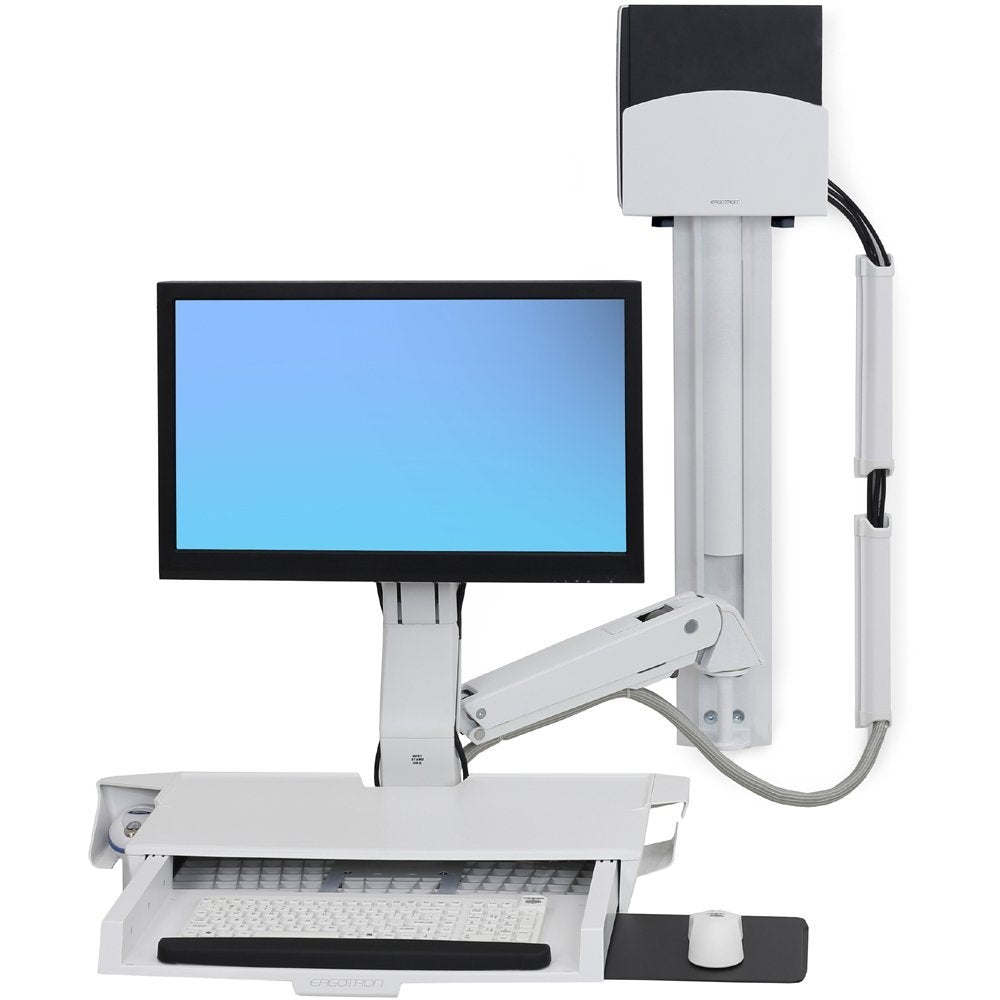

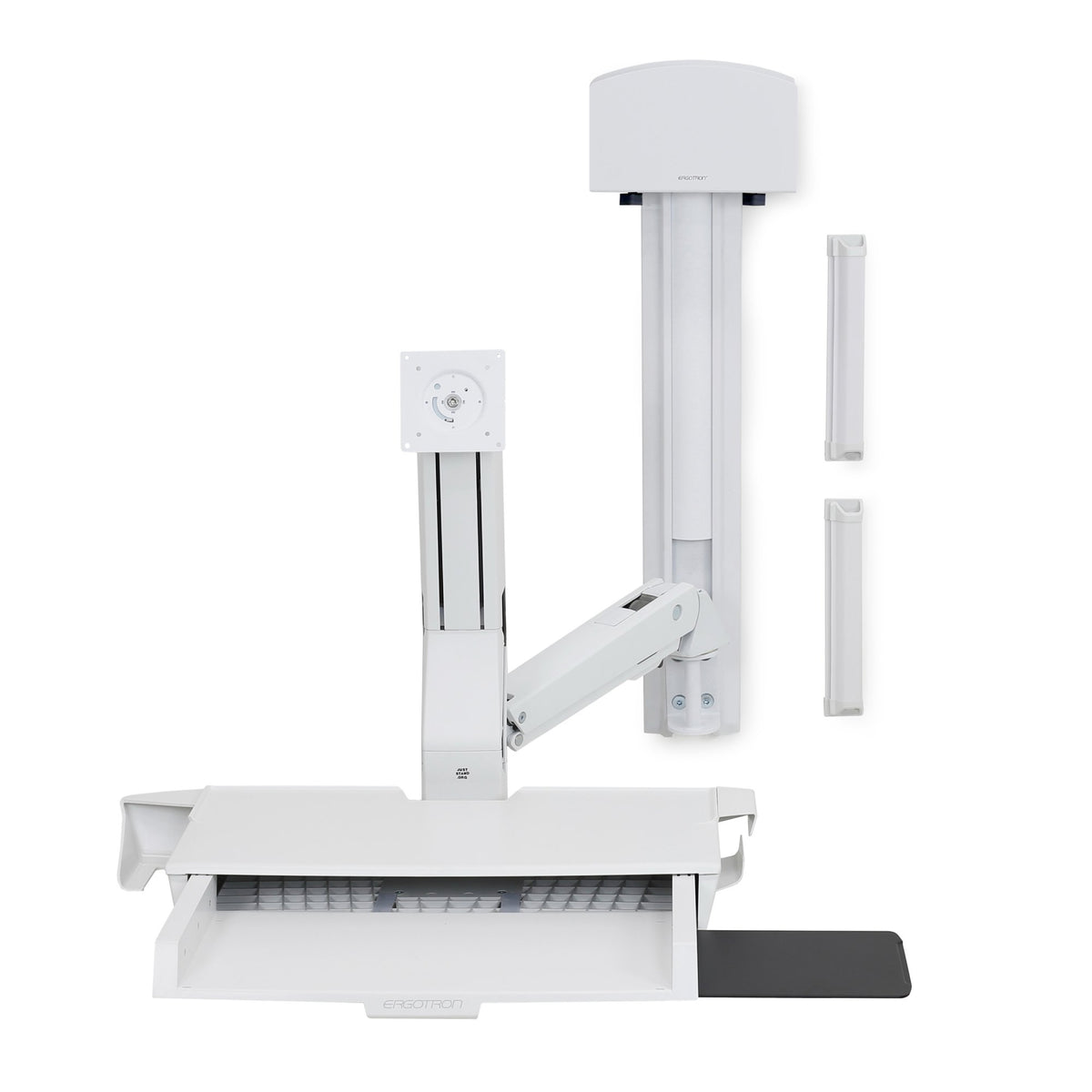

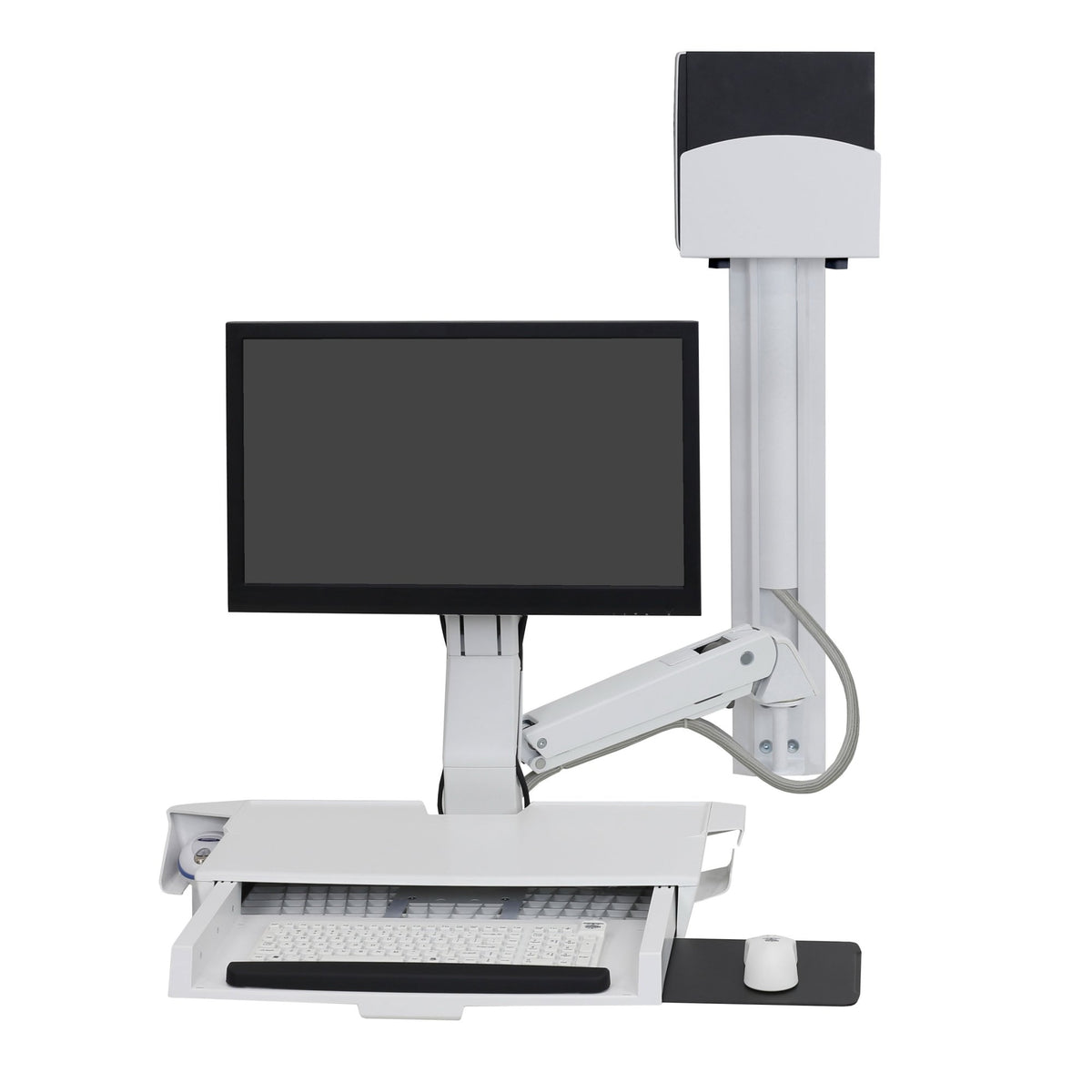

Ergotron StyleView Combo System with Worksurface, Small CPU Holder White 45-272-216
Ergotron StyleView Combo System with Worksurface, Small CPU Holder White 45-272-216
Condition: New Open Box
Warranty: 90 Days
Couldn't load pickup availability
Share

Additional Information:
This Ergotron StyleView Combo System with Worksurface is in New Open Box condition.
Included in the Box:
StyleView Sit-Stand Combo Arm with worksurface
34-inch wall track
Two black wall-track covers
Small CPU holder
CPU spacer
Two 10-inch cable channels
CPU track-mount bracket kit
Arm track-mount bracket kit
Wall-track fasteners for concrete and wood
CPU direct wall-mount kit
Height-adjustable LCD monitor mount
Integrated keyboard tray
Slide-out mouse tray
Mouse holder
Barcode scanner holder
Wrist rest
Handle
VESA monitor mounting kit
Cable ties
Packaging:
The item is securely packaged in Original box.
Ergotron StyleView Combo System with Worksurface, Small CPU Holder White 45-272-216 Description:
The Ergotron StyleView Sit-Stand Combo System with Worksurface, Model 45-272-216, is a wall-mounted ergonomic workstation designed for healthcare and point-of-care computing environments.
The system combines a height-adjustable monitor arm, integrated worksurface, pull-out keyboard tray, small CPU holder, mouse holder, barcode scanner holder, and wrist rest into a single workstation. The monitor, keyboard, mouse, and scanner can be repositioned together in a single motion, allowing caregivers to work comfortably from seated or standing positions.
The system features a white finish, durable aluminum and high-grade plastic construction, integrated cable management, and a space-saving design that folds against the wall when not in use.
Ergotron StyleView Combo System with Worksurface, Small CPU Holder White 45-272-216 Features:
Wall-mounted sit-stand workstation designed for healthcare environments
White finish

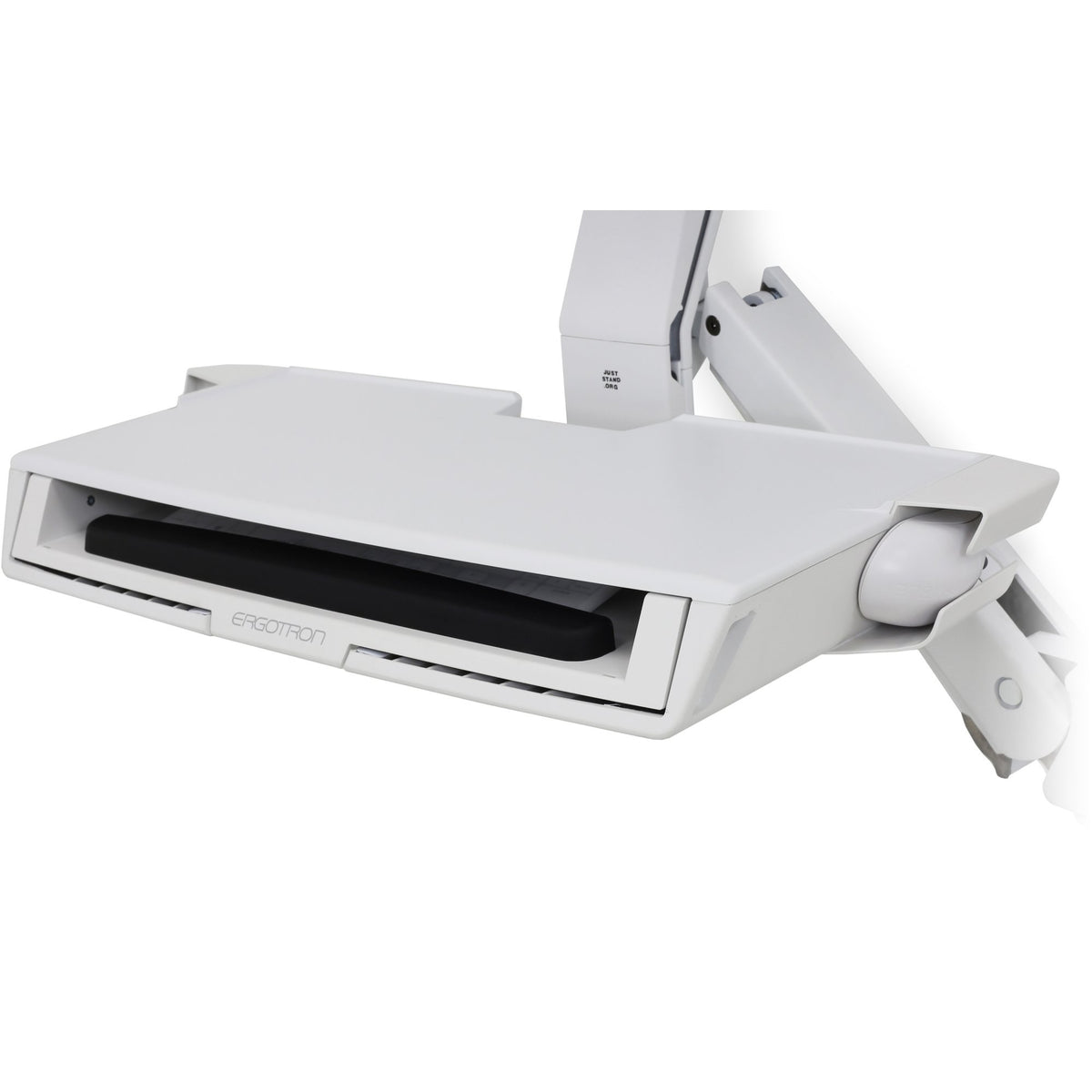

Integrated worksurface with pull-out keyboard tray
Small CPU holder included
Supports monitors up to 24 inches
Supports displays weighing 6–18 lb (2.7–8.2 kg)
20-inch (51 cm) tandem height adjustment for the LCD and keyboard
Additional 5-inch (13 cm) independent LCD adjustment
Maximum LCD height adjustment of 25 inches (64 cm)
360-degree monitor pan
90-degree monitor rotation
30-degree total monitor tilt
Integrated mouse and barcode scanner holders
Integrated wrist rest
Fold-down worksurface and keyboard tray
Keyboard tray provides ergonomic back tilt
Worksurface supports up to 10 lb (4.5 kg)
Keyboard, mouse and barcode scanner support up to 4 lb (1.8 kg) combined
Small CPU holder supports CPUs up to 40 lb (18 kg) according to Ergotron's specification sheet
CPU holder accommodates computers approximately 1-3/8 to 3-3/4 inches (35–95 mm) wide
34-inch wall track included
Integrated cable-management channels
Workstation can extend up to 43 inches (109 cm) from the wall
Folds to approximately 8 inches (20.3 cm) deep
Ergotron StyleView Combo System with Worksurface, Small CPU Holder White 45-272-216 Specifications:
| Specification | Details |
|---|---|
| Manufacturer | Ergotron |
| Product Family | StyleView |
| Product Type | Wall-Mounted Sit-Stand Workstation |
| Model / Part Number | 45-272-216 |
| Product Name | StyleView Sit-Stand Combo System with Worksurface |
| Configuration | Small CPU Holder |
| Color | White |
| Mounting Type | Wall Mount |
| Maximum Monitor Size | 24 inches |
| Display Weight Capacity | 6–18 lb (2.7–8.2 kg) |
| Worksurface Capacity | 10 lb (4.5 kg) |
| Keyboard, Mouse and Scanner Capacity | 4 lb (1.8 kg) |
| CPU Capacity | 40 lb (18 kg) |
| Combined LCD/Keyboard Lift | 20 inches (51 cm) |
| Independent LCD Adjustment | 5 inches (13 cm) |
| Maximum LCD Height Adjustment | 25 inches (64 cm) |
| Monitor Tilt | 30° total (+25° / -5°) |
| Monitor Pan | 360° |
| Monitor Rotation | 90° |
| VESA Standard | MIS-D |
| VESA Mounting Patterns | 75 x 75 mm and 100 x 100 mm |
| Worksurface Dimensions | 22.75 W x 10.6 D inches (57.8 x 26.9 cm) |
| Keyboard Tray Dimensions | 18.6 W x 9 D inches (47.2 x 22.8 cm) |
| Maximum Keyboard Height | 1.35 inches (34 mm) |
| CPU Width Range | 1-3/8 to 3-3/4 inches (35–95 mm) |
| Wall Track Length | 34 inches |
| Maximum Extension | 43 inches (109 cm) |
| Folded Depth | 8 inches (20.3 cm) |
| Product Weight | 41 lb (19 kg) |
| Shipping Dimensions | 37.1 W x 26.1 D x 10 H inches |
| Shipping Weight | 51 lb (23 kg) |
