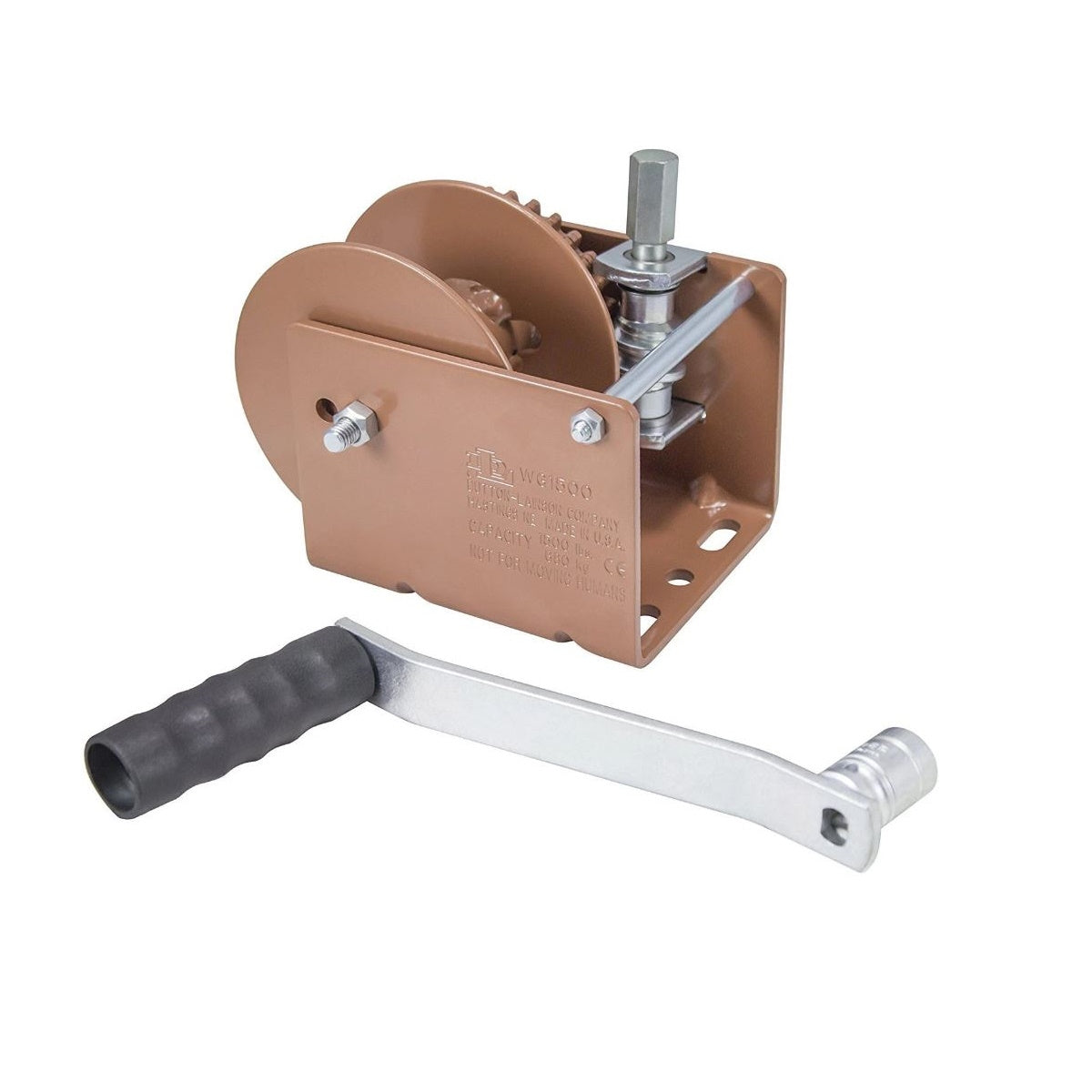

Dutton-Lainson Company WG1500HD 1500 lbs Worm Gear Winch with Hex Drive

 Additional Information:

This Dutton-Lainson Company WG1500HD 1500 lbs Worm Gear Winch with Hex Drive is in great working condition.

The unit has been fully tested and is completely functional.

Included in the Box:

• Dutton-Lainson Company WG1500HD 1500 lbs Worm Gear Winch with Hex Drive

Packaging:

The item is securely packaged in Brown box.

Dutton-Lainson Company WG1500HD 1500 lbs Worm Gear Winch with Hex Drive Description:

The Dutton-Lainson WG1500HD is a heavy-duty 1,500 lb capacity worm gear winch designed for controlled horizontal pulling and vertical lifting applications. It features a standard reel, 5/8-inch hex drive, and a removable 7-inch handle with an ergonomic grip.

The worm gear design automatically holds the load in position whenever cranking is stopped, eliminating the need for a freewheel mode or separate locking mechanism. The winch can also be operated with a standard electric drill connected directly to the hex drive for faster operation.

Manufactured in the USA, the WG1500HD is constructed with high-carbon steel gears, a rigid welded reel, permanently lubricated bearings, and a reinforced steel base for durability and dependable operation.

Dutton-Lainson Company WG1500HD 1500 lbs Worm Gear Winch with Hex Drive Features:

• 1,500 lb rated capacity
• 5/8-inch hex drive for manual or drill-assisted operation
• Removable 7-inch handle with ergonomic grip
• Standard reel design
• Automatic load-holding capability when cranking stops
• No freewheel mode required
• Laminated high-carbon steel gears
• Heat-treated gears for increased strength
• Permanently lubricated, maintenance-free drive-shaft bearings
• Rigid, welded steel reel construction
• Heavy-gauge embossed and reinforced steel base
• Slotted mounting holes for easier installation
• Powder-coated matte black finish
• Zinc-plated TUFFPLATE finish on hardware
• Made in the USA

Dutton-Lainson Company WG1500HD 1500 lbs Worm Gear Winch with Hex Drive Specifications:

Brand: Dutton-Lainson
Model: WG1500HD
Part Number: 11011
Product Type: Worm Gear Winch
Rated Capacity: 1,500 lb / 680 kg
Reel Type: Standard Reel
Drive Type: 5/8-inch Hex Drive
Handle Length: 7 inches
Gear Ratio: 30:1
Drum Hub Diameter: 1.5 inches
Maximum Mechanical Advantage: 240
Finish: Powder-Coated Matte Black
Hardware Finish: Zinc-Plated TUFFPLATE
Construction: High-Carbon Steel Gears and Reinforced Steel Base
Manufacturing: Made in the USA
