Dell USB 3.0 Ultra HD/4K Triple Display Docking Station D3100

Additional Information:

This Dell USB 3.0 Ultra HD/4K Triple Display Docking Station is in great working condition.

The unit has been fully tested and is completely functional.

Included in the Box:

• Dell Docking Station
• USB 3.0 Cable (2ft.)
• AC Power Adapter
• HDMI-DVI Adapter
• Installation Driver CD
• Documentation

Packaging:

The item may be packaged in an Original or Brown box.

Dell USB 3.0 Ultra HD/4K Triple Display Docking Station D3100 Description:

The Dell Docking Station - USB 3.0 connects your laptop to up to three additional monitors, various external devices and the Internet with a single cable. It's a convenient way to expand the capabilities of your portable PC and customize your desktop computing environment. This sleek, compact dock unlocks enhanced productivity and entertainment options with high-speed connectivity and support for Ultra HD 4K displays. Designed for Ultra HD 4K resolution, this USB 3.0 universal docking station enables compatible PC's to display 4K resolution when connected.

Dell USB 3.0 Ultra HD/4K Triple Display Docking Station D3100 Features:

• Easily connect

  The Dell Docking Station - USB 3.0 connects your laptop to up to three additional monitors, various external devices and the Internet with a single cable. Easily connect laptops to an Ultra HD 4K display, Full HD displays and other external devices

• High-speed data transfer with USB 3.0

  Ultra-fast data transfer speeds among connected devices. Three USB 3.0 ports and two USB 2.0 connections, ensuring compatibility with a vast array of peripherals. Provides USB charging to peripherals but does not charge your laptop.

• Expand productivity with peripherals

  With a single cable, the Dell Docking Station - USB 3.0 connects your laptop to various devices, such as printers, scanners and external hard drives. There's also a Gigabit Ethernet port, headphone jack and audio output to connect external speakers.

• Advanced networking and security for enterprise use

  The Dell Docking Station - USB 3.0 is a great choice for corporate environments with Wake-On-LAN. There's also an integrated cable lock slot (lock sold separately), so the dock can be secured to a desk or workstation.

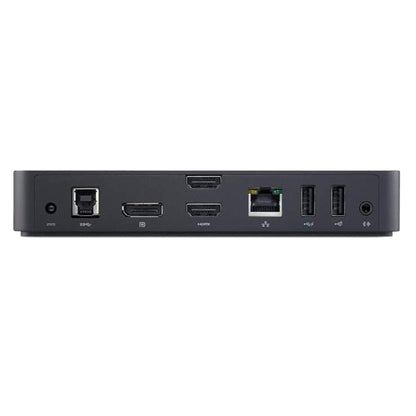

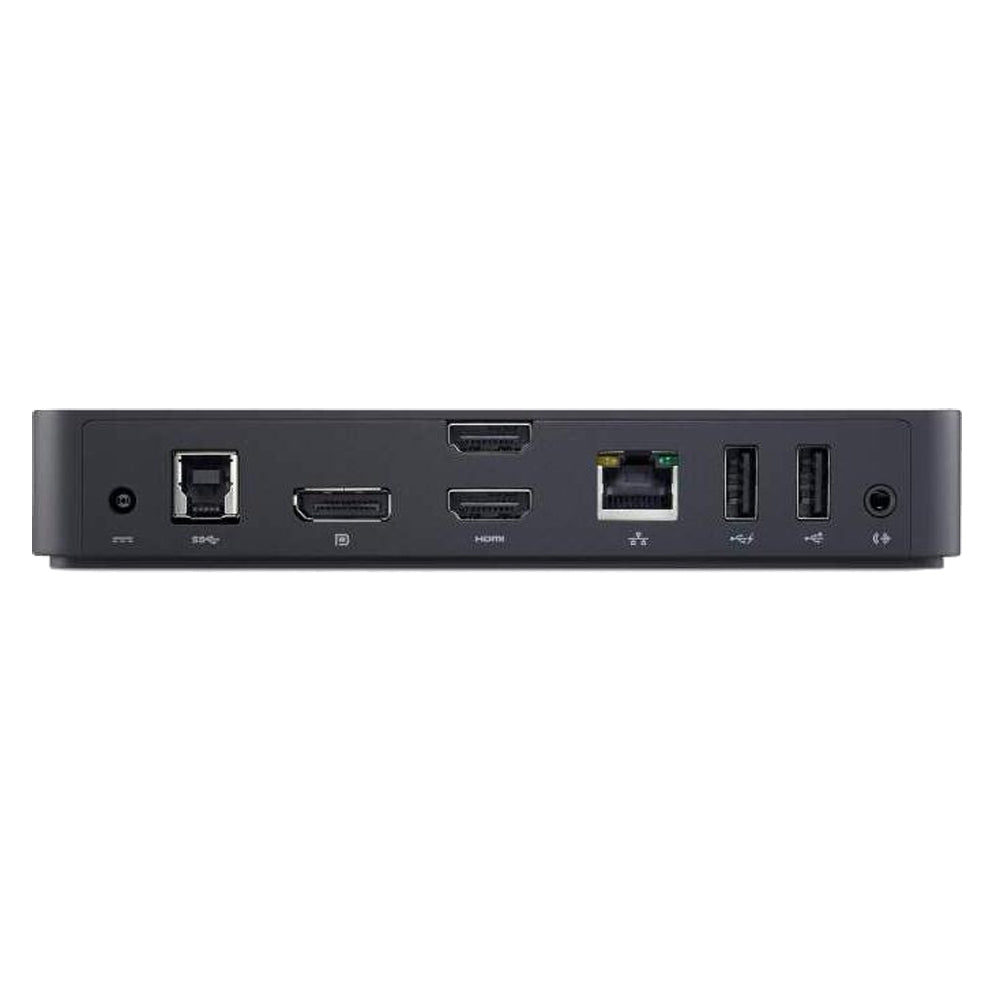

• Interfaces

  2 x USB 2.0 - 4 pin USB Type A; 3 x SuperSpeed USB 3.0 - 9 pin USB Type A; 2 x display / video - HDMI - 19 pin HDMI Type A; 1 x display / video - DisplayPort - 20 pin DisplayPort; 1 x network - RJ-45; 1 x SuperSpeed USB 3.0 - 9 pin USB Type B

• Headphone and Audio Connectivity

  1 x headphones - output - mini-phone 3.5 mm; 1 x audio - output - mini-phone 3.5 mm;

• Cables Included

  1 x HDMI-DVI adapter - external; 1 x SuperSpeed USB cable - external - 2 ft

Dell USB 3.0 Ultra HD/4K Triple Display Docking Station D3100 Specifications:

General Information

• Brand: Dell

• Model Number: D3100

• Product Name: Dell D3100 USB 3.0 Docking Station

• Color: Black

• Product Type: USB Docking Station

• Connectivity: HDMI, DisplayPort, VGA, Ethernet, USB-A, Headphone Output

• Installation: Plug and Play

Key Specifications

• Maximum Number of Displays Supported: 3

• DisplayPort Outputs: 1

• HDMI Ports: 2

• VGA Ports: 1

• Total USB Ports: 6

• Ethernet Ports: 1

• Headphone Jack: Yes

• Passthrough Power: No

Display Specifications

• Display Connectors:

  • 1 × DisplayPort

  • 2 × HDMI

  • 1 × VGA

• Maximum Displays Supported: Up to 3 displays

Ports and Connectivity

• USB Ports: 6 total

  • 2 × USB-A ports

  • 3 × USB 3.0 Type-A ports

• Ethernet Port: 1

• Headphone Output: Yes

• Microphone Input: No

• Memory Card Slot: No

Power Specifications

• Powered Device: Yes

• Power Supply Included: No

• Power Input: USB 3.0

• Maximum Input Power: 60 watts

• Power Passthrough: No

Compatibility

• Brand Compatibility: Universal

• Device Compatibility: Most models with a USB port

• Connectivity Requirement: USB connection

• Setup: Plug and Play

Additional Features

• Security Slot: Kensington Security Slot (K-Slot)

• Indicator Lights: Yes

Physical Specifications

• Height: 1.1 inches

• Length: 6.50 inches

• Width: 3 inches

• Weight: 0.63 ounces
