BRAND: CROWN

MODEL: DCI2X600-UUSFX

SKU: DCI2X600-UUSF-R

Crown Audio DCI 2|600N DriveCore Install 2-Channel 600W Network Amplifier with BLU Link

Crown Audio DCI 2|600N DriveCore Install 2-Channel 600W Network Amplifier with BLU Link

Condition: New Open Box

Warranty: 90 Days

$1,599.99 USD
$0.00 USD $1,599.99 USD
Sale Sold out
View full details

Additional Information:

This Crown Audio DCI 2|600N DriveCore Install 2-Channel 600W Network Amplifier is in great working condition.

The unit has been fully tested and is completely functional.

Included in the Box:

  • Crown Audio DCI 2|600N DriveCore Install 2-Channel 600W Network Amplifier with BLU Link
  • Power Cord

Packaging:

The item is securely packaged in Original box.

Crown Audio DCI 2|600N DriveCore Install 2-Channel 600W Network Amplifier with BLU Link Description:

The Crown Audio DCI 2|600N is a 600W, DriveCore Install 2-channel BLU Link network amplifier with advanced features and flexibility that's required by system integrators for challenging 21st century installed sound applications.

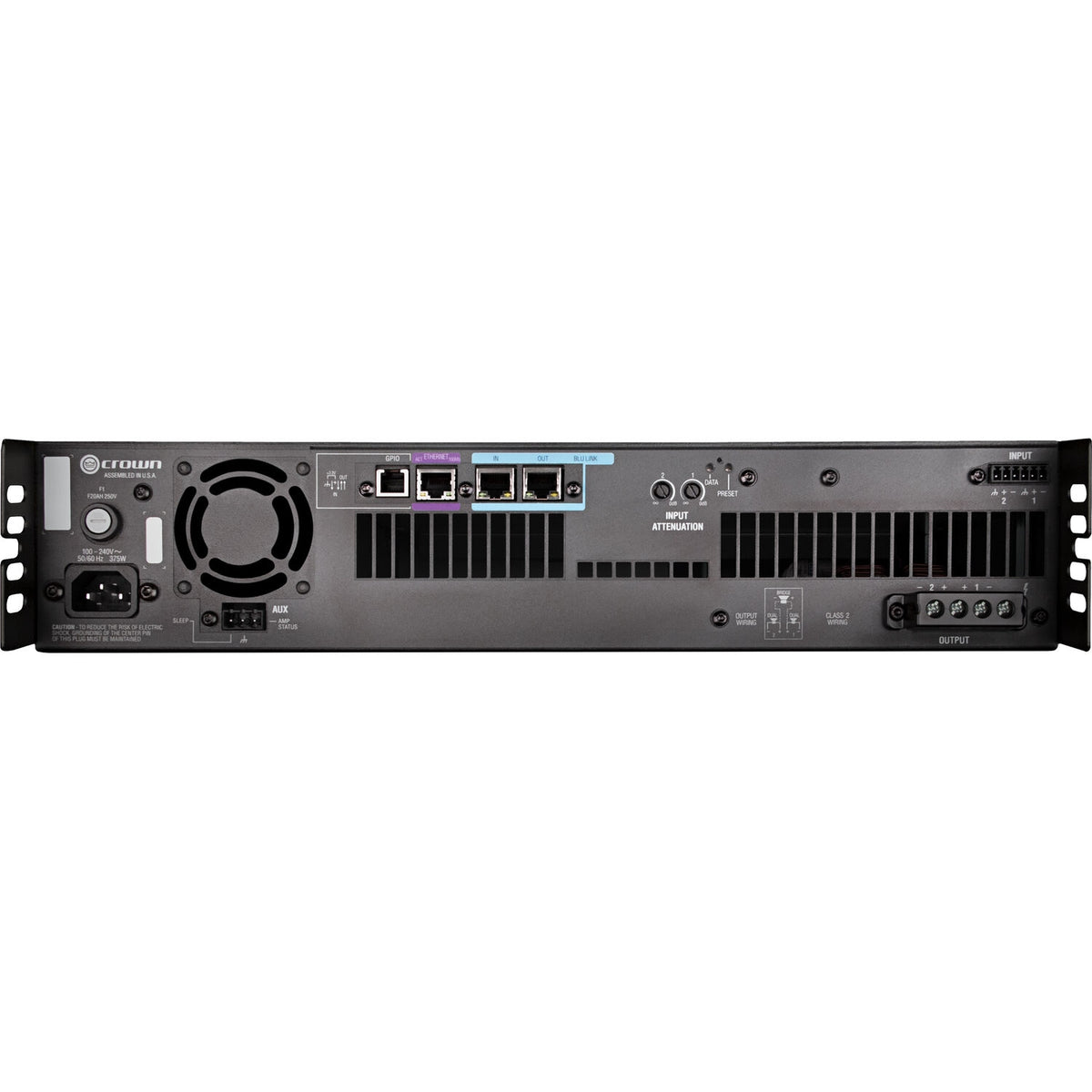

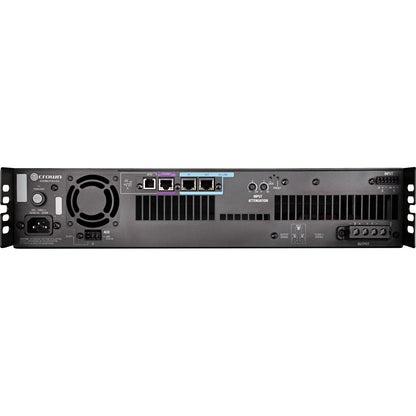

The 2/600N can produce up to 600W of output per channel at 2, 4, 8 or 16 ohms or 70 or 100 Vrms. It is compatible with Harman's BLU Link digital audio transport and accepts digital inputs via its rear-panel RJ45 connectors. This digital control allows for networked monitoring, recallable presets, and the setup of secondary inputs that engage if the primary inputs fail. The 2|600N also has built-in DSP capabilities including limiting, input/output EQs, delay, and a matrix mixer.

Its two channels can be bridged for powering higher power applications such as a subwoofer. The 2|600N also has channel-independent high- or low-impedance output that is selectable from the rear-panel DIP switches. This allows you to integrate the amplifier into a variety of different setups. Each of its 2 channels additionally features independent attenuators with an attenuation range from 0 to -80 dB.

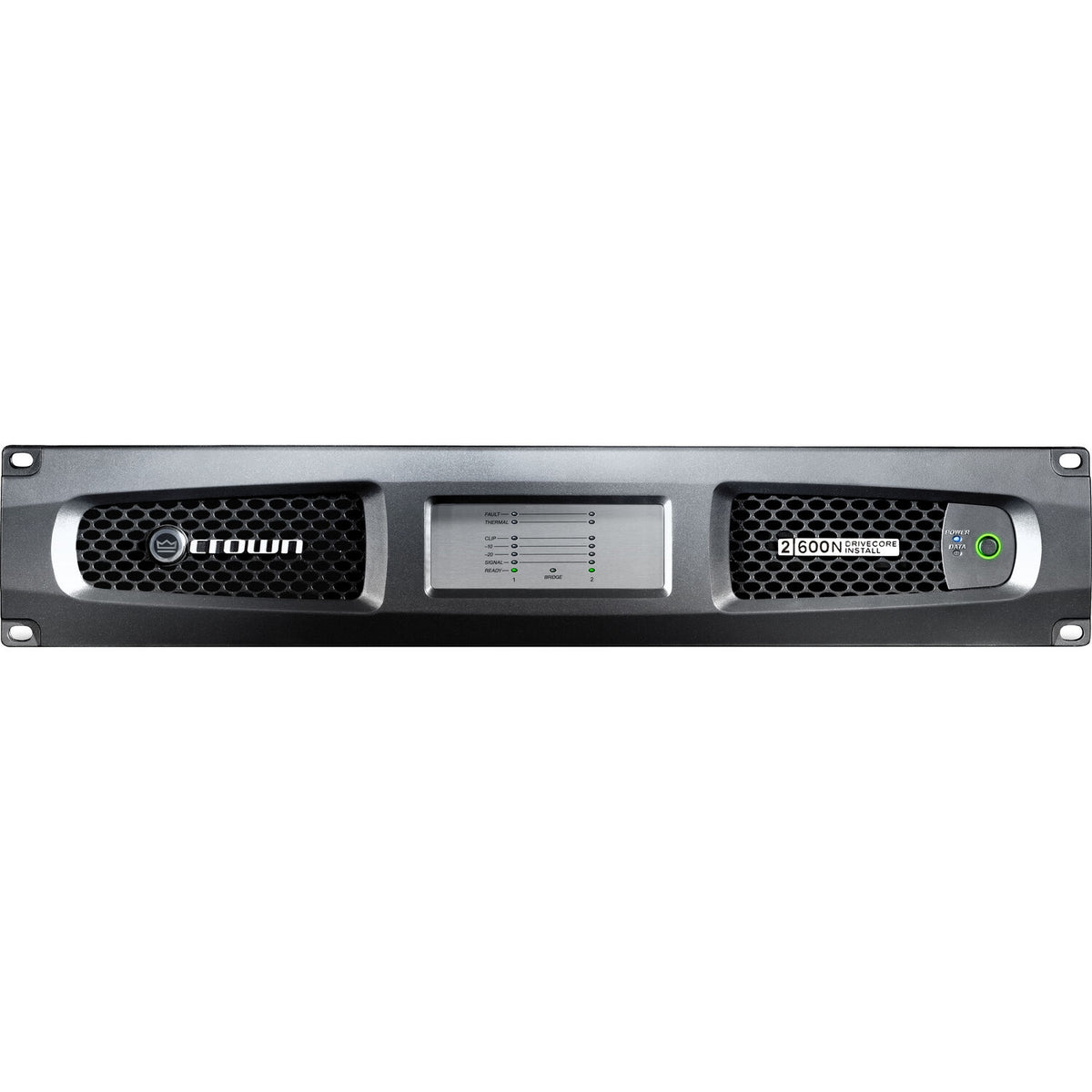

The front panel of the 2|600N provides a series of system indicators, including level and signal, ready, clip, thermal, and fault alerts for quick visual monitoring of the system. The unit can be integrated into a control system for powering on and off as well as engaging its sleep mode for saving energy when not in use. The 2|600N is rack-mountable and requires 2 RU of space.

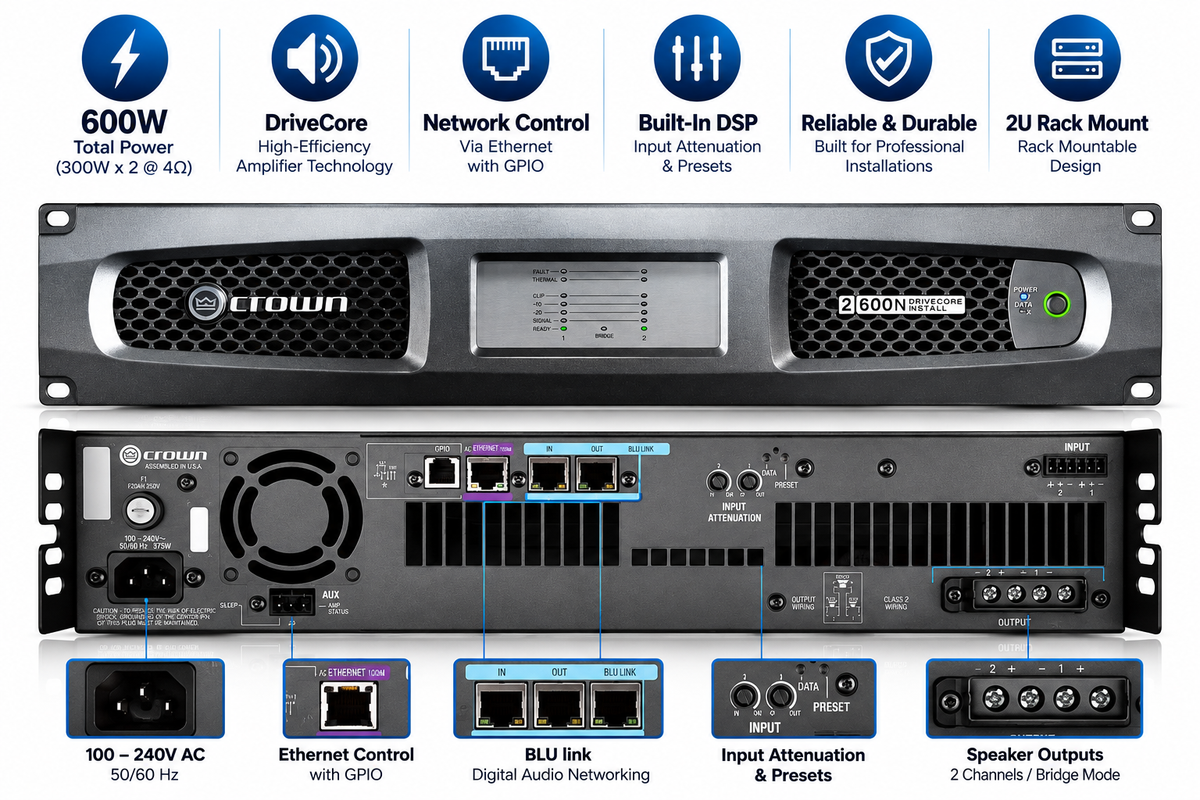

Crown Audio DCI 2|600N DriveCore Install 2-Channel 600W Network Amplifier with BLU Link Features:

Network Monitoring & Control
Monitoring, control, and audio manipulation are provided with the HiQnet protocol that's over standard TCP/IP. Remotely see how all networked DCi amplifiers are performing and control them as needed. In addition, this allows Audio Architect software and the Powered by Crown app to work with DCi amplifiers.
Programmable General Purpose Input/Output Ports
GPIO ports can be configured in many different ways, such as volume controls, recall presets, or to report errors to a master computer.
DSP
DSP includes LevelMAX limiters, input/output EQ, delay, matrix mixer, and speaker line monitoring.
Direct Drive Constant Voltage
You can use smaller-gauge wiring to drive the speakers using either 70/100 Vrms. With no need for a step-up transformer at the output, the DCi produces audio more efficiently.
Channel-Independent Hi-Z/Low-Z Selection
Drive either one or two speakers in low-Z mode, or literally hundreds of speakers in hi-Z mode (70 or 100 Vrms). This means design flexibility since DCi powers all loads on a channel-by-channel basis.
Bridgeable Channel Pairs
The DriveCore Install Series channels are bridgeable, even in 100 Vrms mode, allowing them to be used to for higher-power applications like subwoofers.
Remote On/Off Interface
The 2|600N can be integrated into a control system for remote on/off control.
Efficient Cooling Design
Efficient internal cooling fans provide airflow to the most heat-generating parts. Incorporating the fans into the amplifier brick design maximizes cooling while minimizing wasted energy and noise.
Auto Standby
The 2|600N automatically goes into sleep mode after 30 minutes of no input signal.
TLC Protection
The amp has built-in protection from excessive heat by applying gain reduction when necessary.
Advanced Protection Circuits
Amplifier and loads are protected against shorted outputs, DC, mismatchedloads, overheating, overvoltage or undervoltage, and high-frequency overload

Crown Audio DCI 2|600N DriveCore Install 2-Channel 600W Network Amplifier with BLU Link Specifications:


Form Factor/Type
Rackmount
Number of Amplifier Channels
2
Load Impedance/Voltage Support
2 / 4 / 8 / 16 Ohms
70 / 100 / 140 / 200 V
Power Rating per Channel
2x 300 W at 2/16 Ohms
2x 600 W at 4/8 Ohms
2x 600 W at 70/100 V
Channel Bridging & Power Sharing
1x 600 W Bridged at 4 Ohms
1x 1200 W Bridged at 8 Ohms
1x 1200 W Bridged at 16 Ohms
1x 1200 W Bridged at 140/200 V
Performance
Protections
DC Fault, Low Impedance, Overvoltage, Short Circuit, Thermal, Ultrasonic, Undervoltage
Frequency Response
20 Hz to 20 kHz ±0.25 dB
Damping Factor
> 1000
SNR/Noise
> 104 dB SNR (Analog at 8 Ohms)
> 108 dB SNR (BLU Link at 8 Ohms)
THD/Distortion
≤ 0.35% THD (Full Range, at Rated Power)
≤ 0.35% IMD
Crosstalk
> 80 dB (20 Hz to 1 kHz, Below Rated Power)
Signal Processing
DSP
Yes
Audio Delay
No
Dynamics
Limiter
Connectivity
Analog Audio I/O
1x Block 6-Pin Balanced Input
1x Barrier Strip Output
Digital Audio I/O
No
Network I/O
1x RJ45 Ethernet
2x RJ45 BLU LINK
Other I/O
1x RJ11 Control
USB I/O
No
Phantom Power
No
Wireless
No
Power
Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power Connector
1x IEC 15 A / NEMA 5-15
Current Consumption
0.8 to 2.2 A (1/8 Power)
1.6 to 4.8 A (1/3 Power)
Power Consumption
86 to 102 W (1/8 Power)
106 to 161 VA (1/3 Power)
Physical
Display
Single-LED Indicators Only
Rackmount Size
2 U
Cooling
Fan (Variable Speed)
Dimensions
19 x 14.3 x 3.5" / 48.3 x 36.3 x 8.9 cm
Weight
18.7 lb / 8.5 kg
