BRAND: CROWN
MODEL: NCDI2000
SKU: SKU:NCDI2000-O

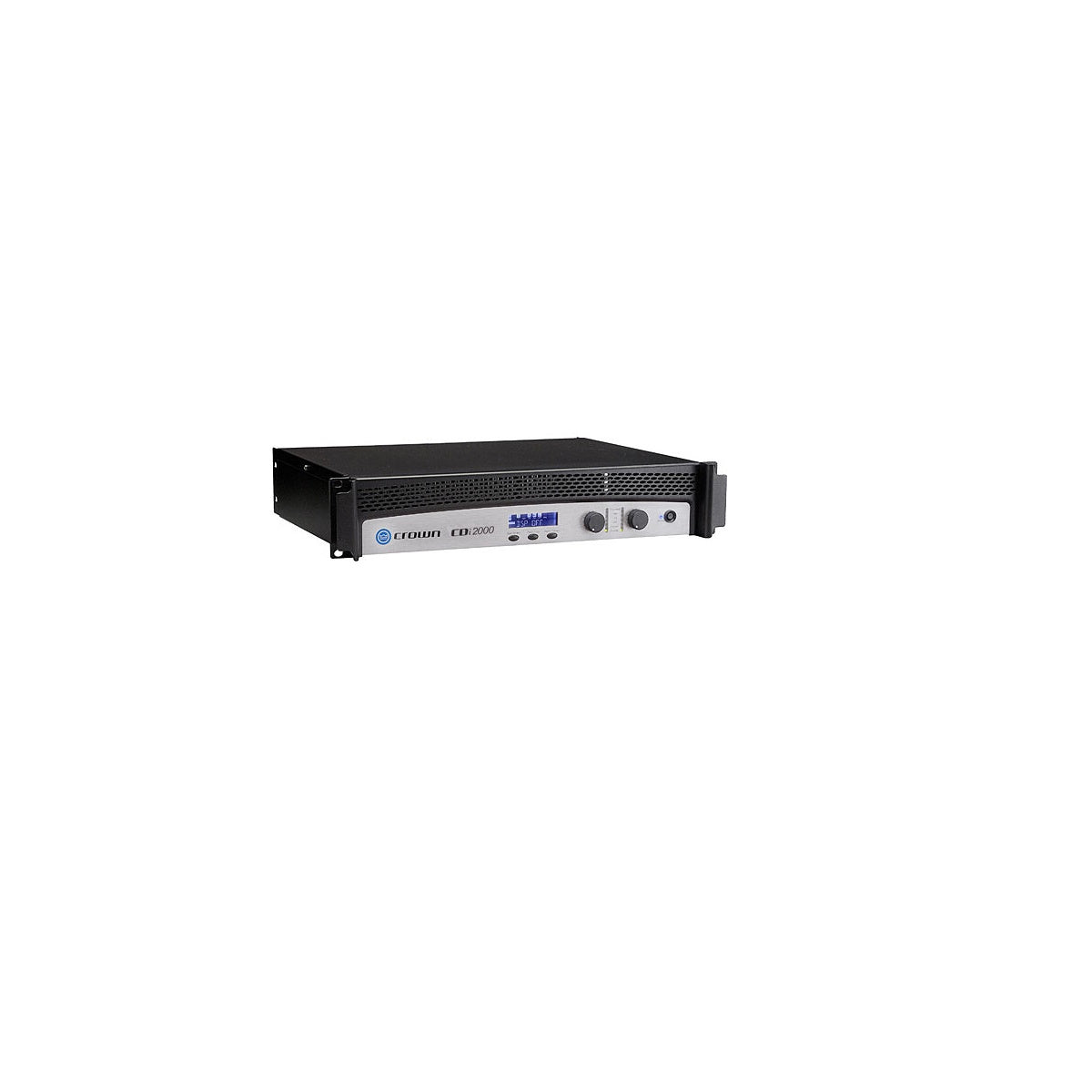

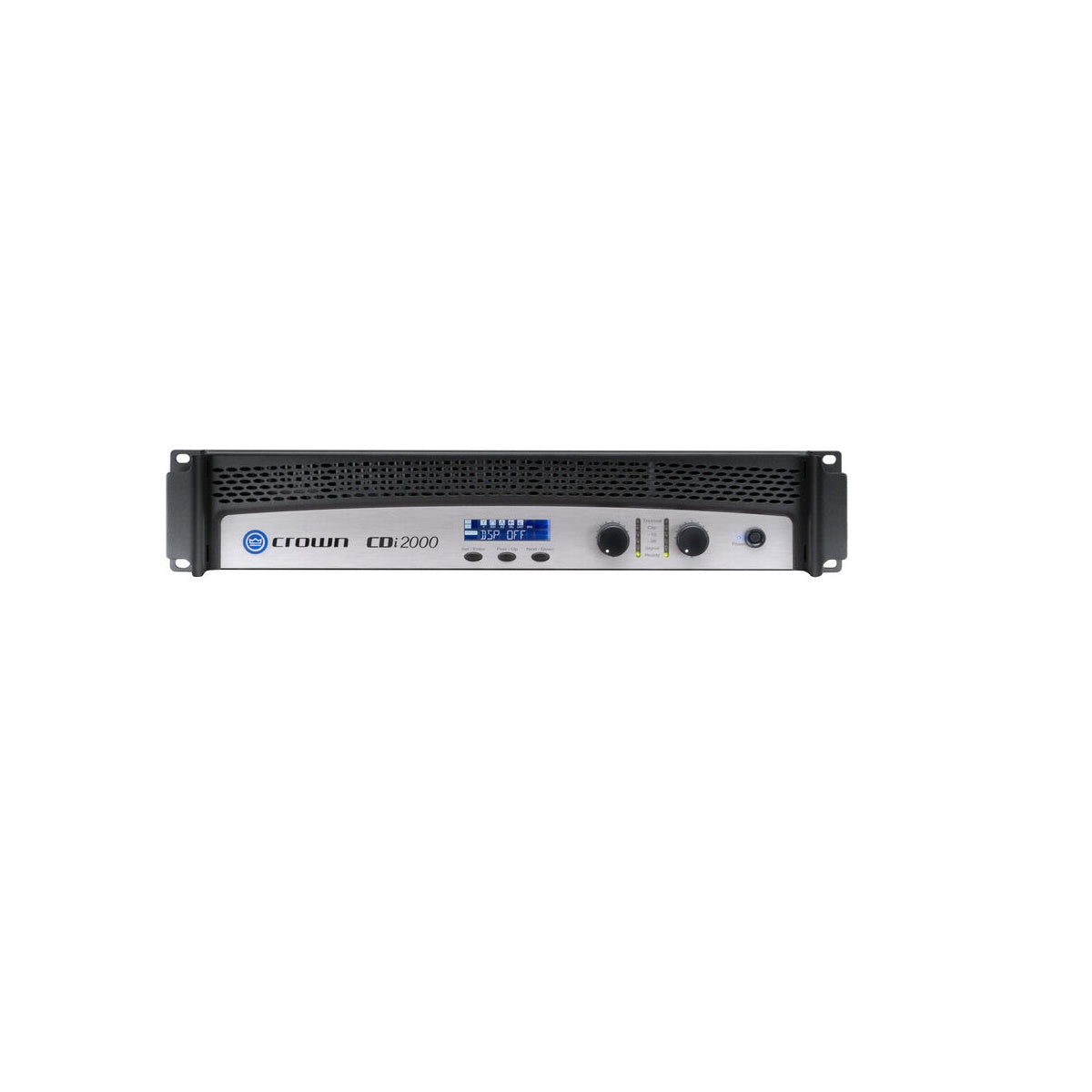

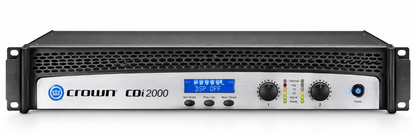

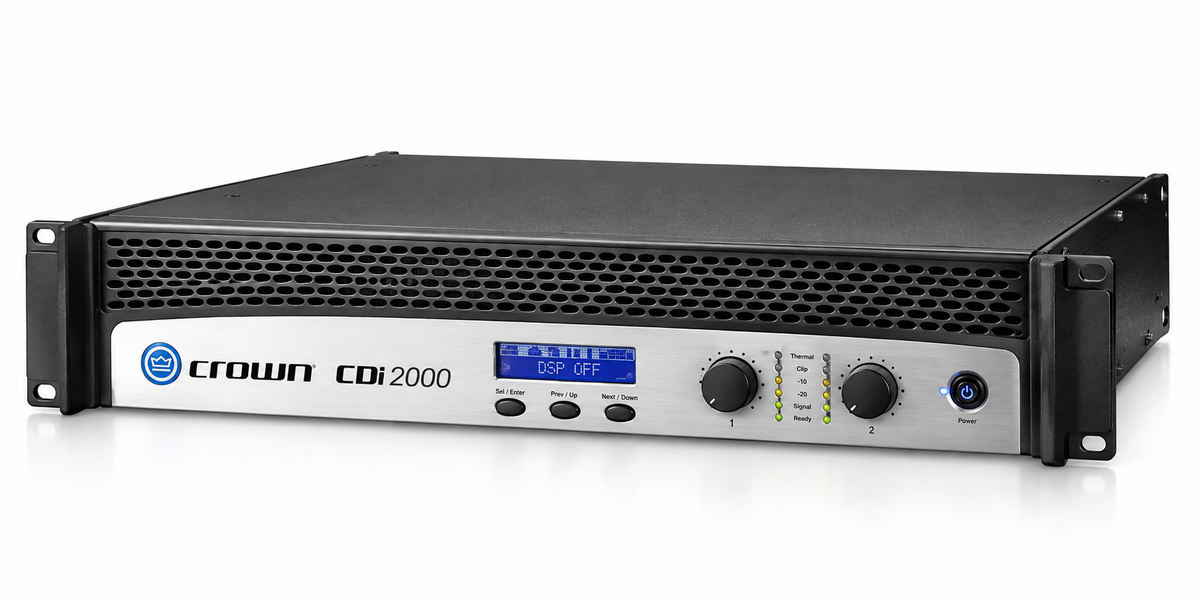

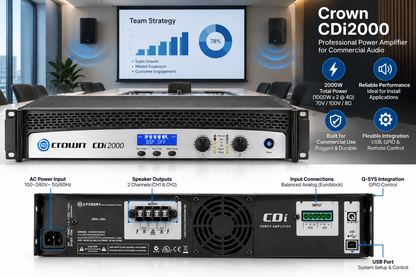

Crown Audio CDi 2000 Two-Channel Commercial Amplifier 800W/Channel at 4 Ohms, 70V/140V
Crown Audio CDi 2000 Two-Channel Commercial Amplifier 800W/Channel at 4 Ohms, 70V/140V
Condition: New Open Box
Warranty: 90 Days
Couldn't load pickup availability
Share
Additional Information:
This Crown Audio CDi 2000 Two-Channel Commercial Amplifier is in New Open Box condition.
Included in the Box:
- Crown Audio CDi 2000 Two-Channel Commercial Amplifier (800W/Channel at 4 Ohms, 70V/140V)
- IEC Power Cable
Packaging:
The item is securely packaged in Original box.
- 2 RU Rackmount Design
- 800W per Channel at 4 Ohms
- Low-Z, 70V, or 140V Operation
- Dual-Channel or Bridge-Mono Mode
- Protection Circuitry
- Integrated DSP
- Universal Power Supply

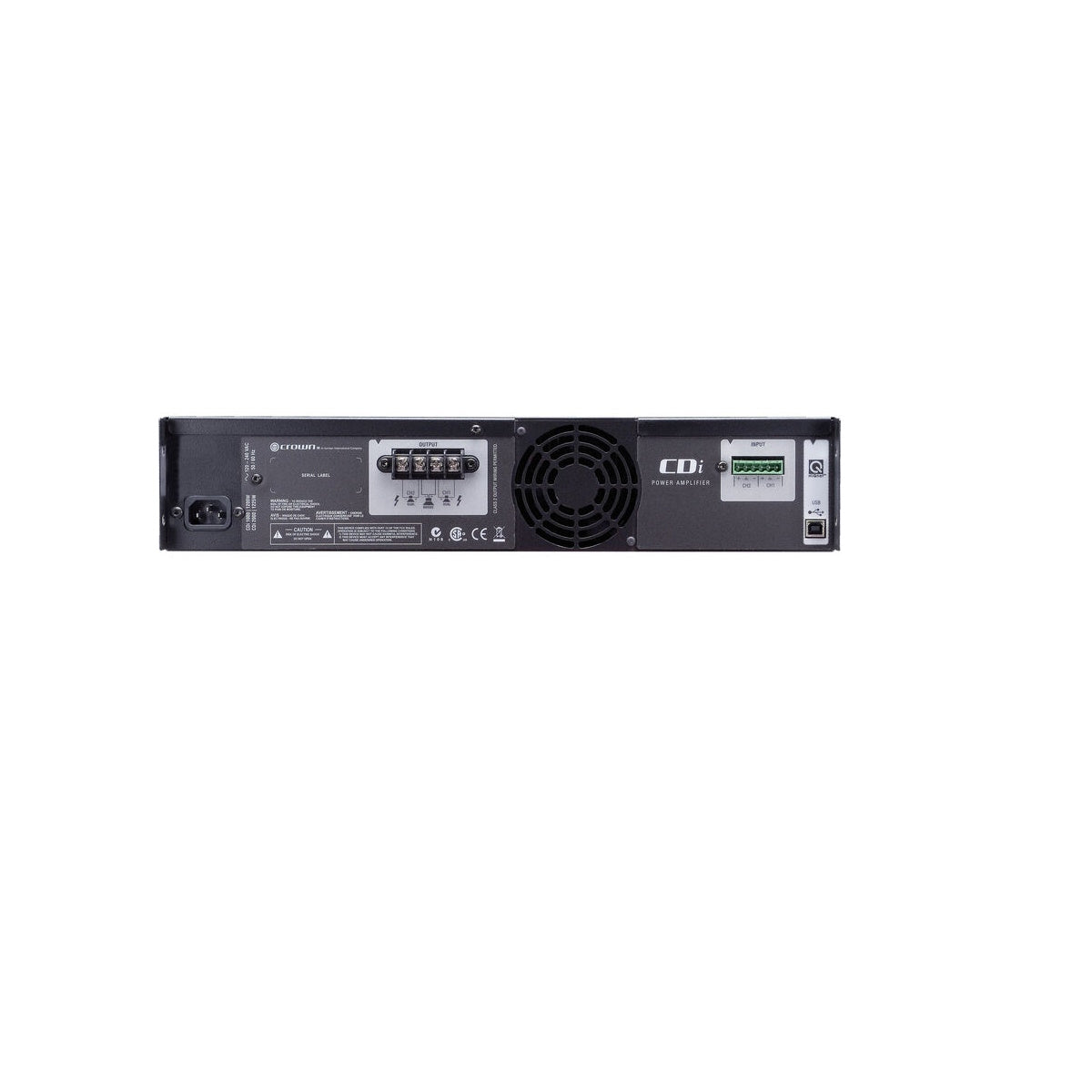

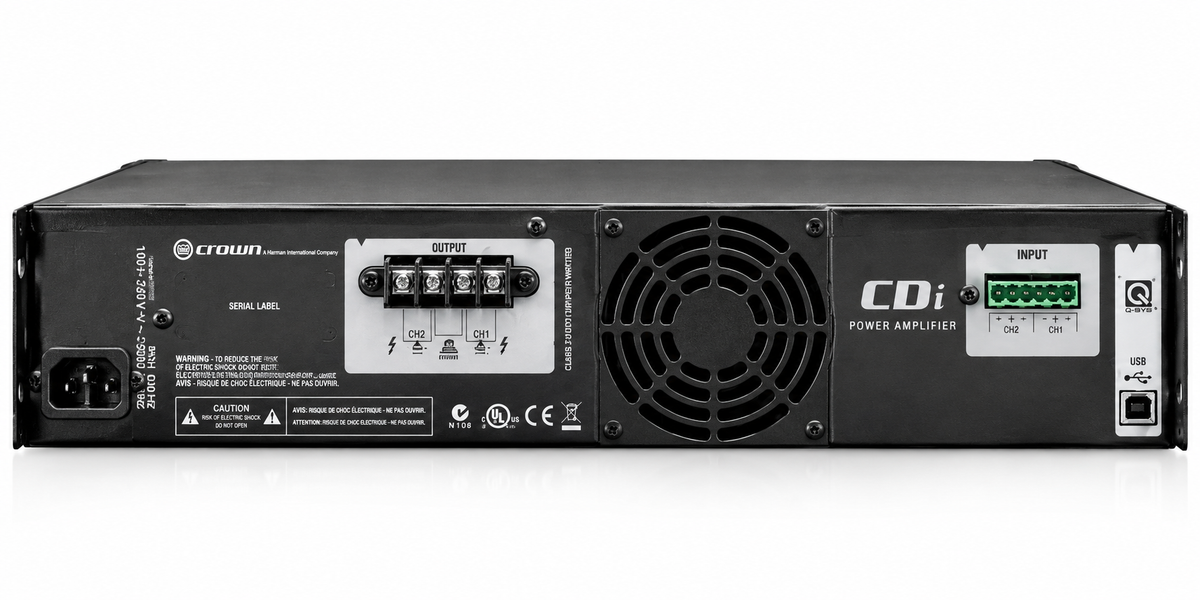

- Removable Euroblock Inputs
- Barrier Strip Outputs
Crown Audio CDi 2000 Two-Channel Commercial Amplifier 800W/Channel at 4 Ohms, 70V/140V Description:
The 2 RU rack-mountable Crown Audio CDi 2000 is a rugged, lightweight commercial power amplifier designed for dual-channel or bridge-mono operation in installed audio applications such as restaurants, retail stores, warehouses, offices, and more. The CDi 2000 provides accurate, uncolored sound with low distortion for excellent music and vocal reproduction. It delivers 800W per channel at 4 Ohms, and supports multiple low-impedance configurations, as well as 70V and 140V constant-voltage systems. The switch-mode universal power supply enables safe operation across the globe.
Advanced protection circuitry guards against shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults. The CDi 2000 also has integrated DSP presets for adjustable crossover frequencies, EQ, limiting, compression, delay, and a subharmonic synthesizer. A backlit LCD displays relevant information. The removable Euroblock inputs and barrier strip outputs accommodate a variety of system setups
Crown Audio CDi 2000 Two-Channel Commercial Amplifier 800W/Channel at 4 Ohms, 70V/140V Features:
- Rugged and lightweight steel construction, occupies 2 RU in any standard equipment rack
- Operates in dual or bridge-mono modes
- Wide range of speaker impedances and outputs, including 2/4/8 Ohms and 70V or 140V
- Excellent sound reproduction with low distortion
- Advanced protection circuitry protects against overheating, overloads, and shorts
- Integrated DSP presets for crossover frequencies, EQ, limiting, compression, delay, and a subharmonic synthesizer
- Switch-mode universal power supply

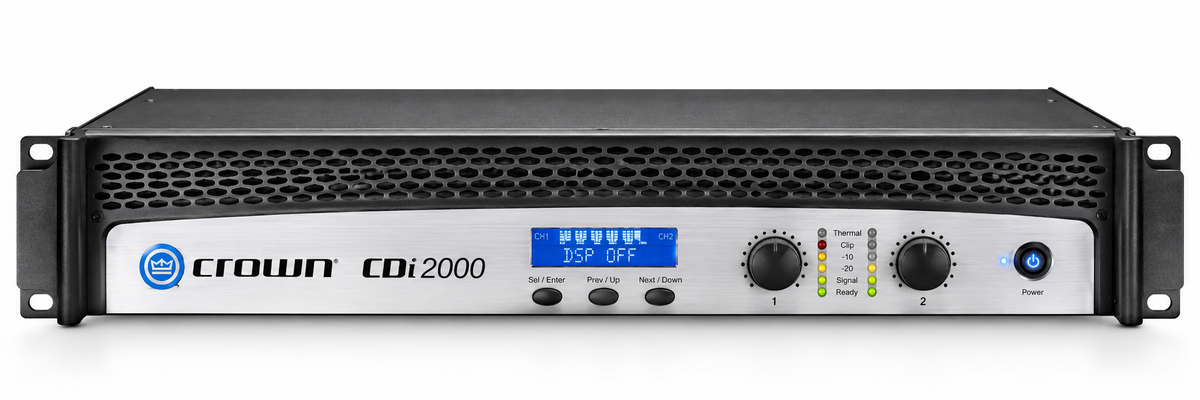

- Backlit LCD shows relevant information
| Form Factor/Type | Rackmount |
| Number of Amplifier Channels | 2 |
| Load Impedance/Voltage Support | 4 / 8 / 16 Ohms |
| Power Rating per Channel | 2x 1000 W at 2 Ohms 2x 800 W at 4 Ohms 2x 475 W at 8 Ohms 2x 800 W at 70 V |
| Channel Bridging & Power Sharing | 1x 2000 W Bridged at 4 Ohms 1x 1600 W Bridged at 140 V |
| Frequency Response | 20 Hz to 20 kHz +0/-1 dB |
| Damping Factor | > 500 |
| SNR/Noise | 100 dBA SNR (at 8 Ohms) |
| THD/Distortion | ≤ 0.5% THD |
| Crosstalk | > 70 dB (Below Rated Power, 20 Hz to 1 kHz) |
| DSP | Yes |
| Analog Audio I/O | 2x Block 3-Pin Input 1x Barrier Strip Output |
| Digital Audio I/O | No |
| Network I/O | No |
| USB I/O | 1x USB-B |
| Phantom Power | No |
| Wireless | No |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1x IEC / NEMA 5-15 |
| Current Consumption | 8.3 A |
| Power Consumption | 38 W (Idle) |
| Display | Backlit LCD |
| Rackmount Size | 2 U |
| Operating Conditions | 32 to 104°F / 0 to 40°C up to 95% Humidity |
| Dimensions | 19 x 12.2 x 3.5" / 48.3 x 31.1 x 8.9 cm |
| Weight | 19 lb / 8.6 kg |
