BRAND: CORSAIR

MODEL: CP-9020257-NA

SKU: CP-9020257-NA-R

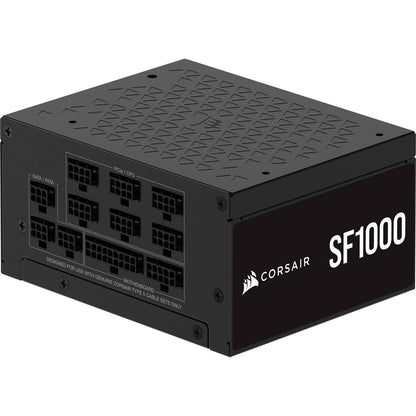

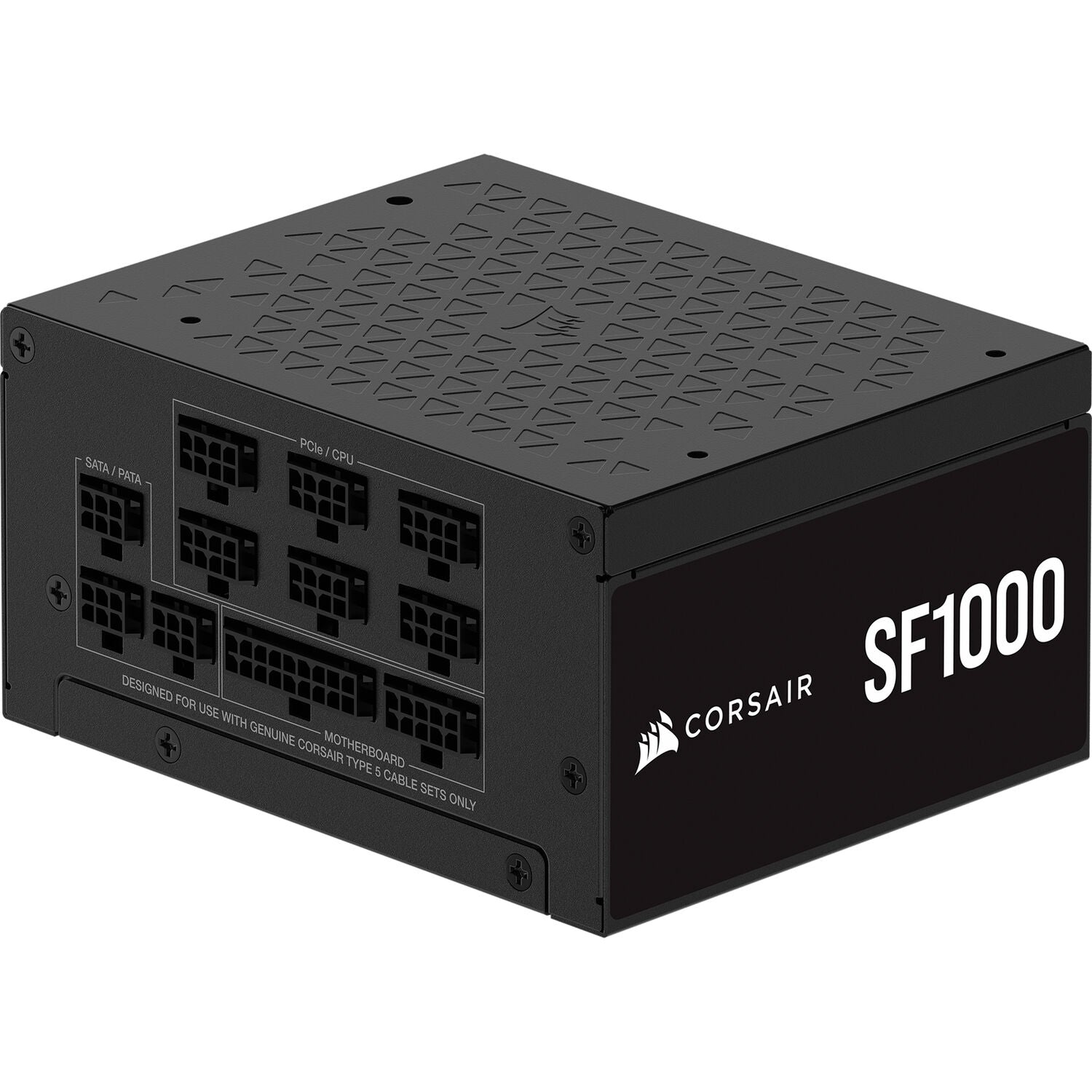

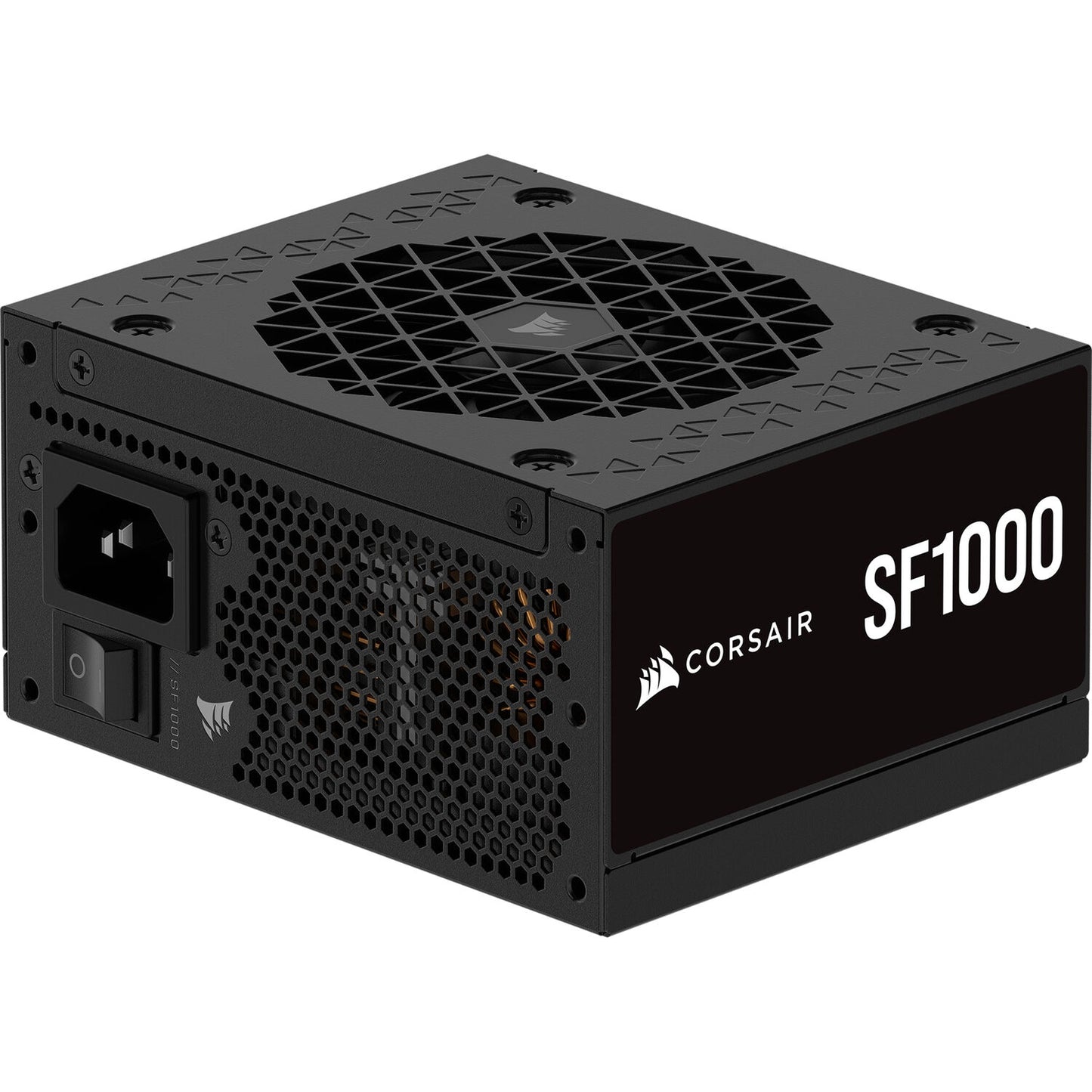

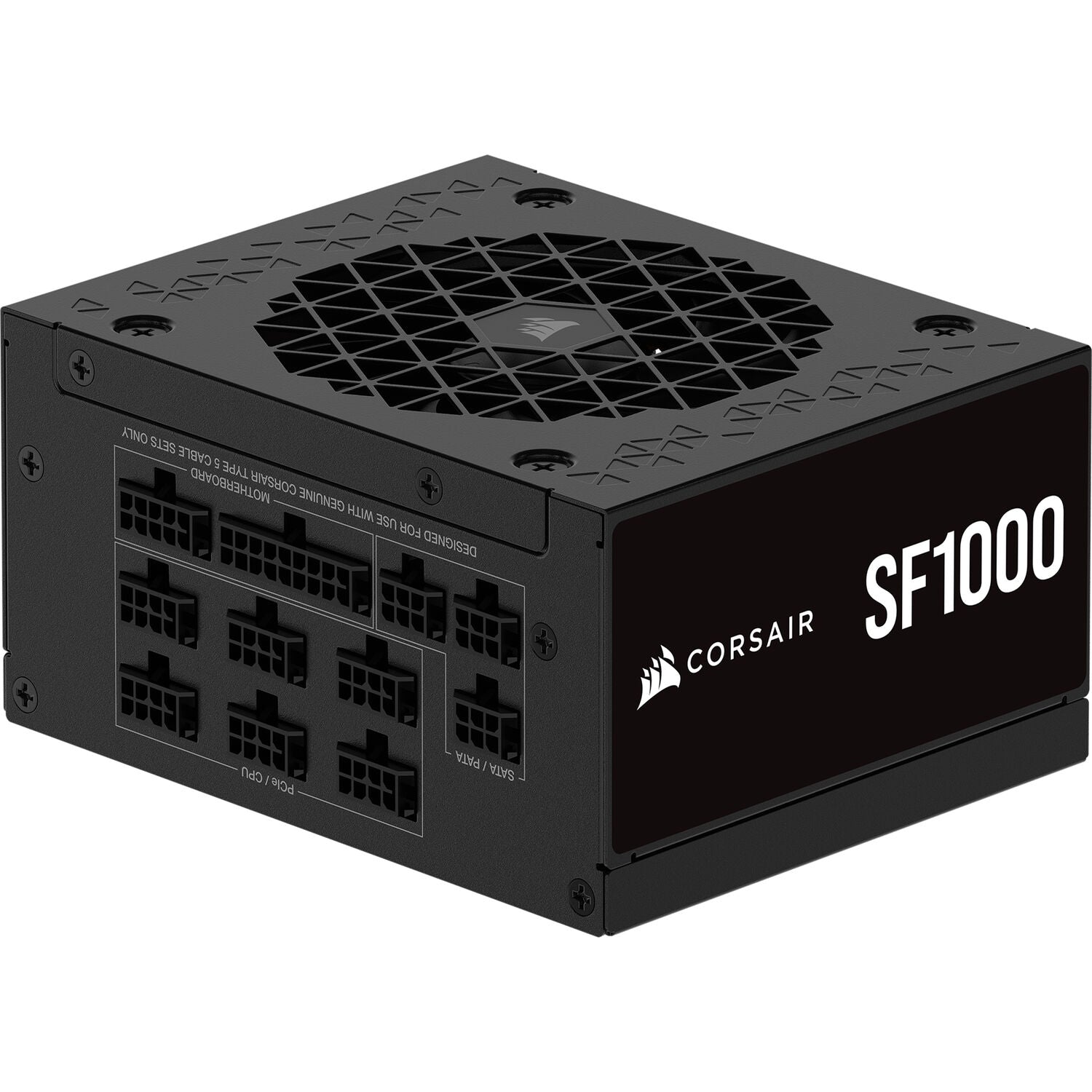

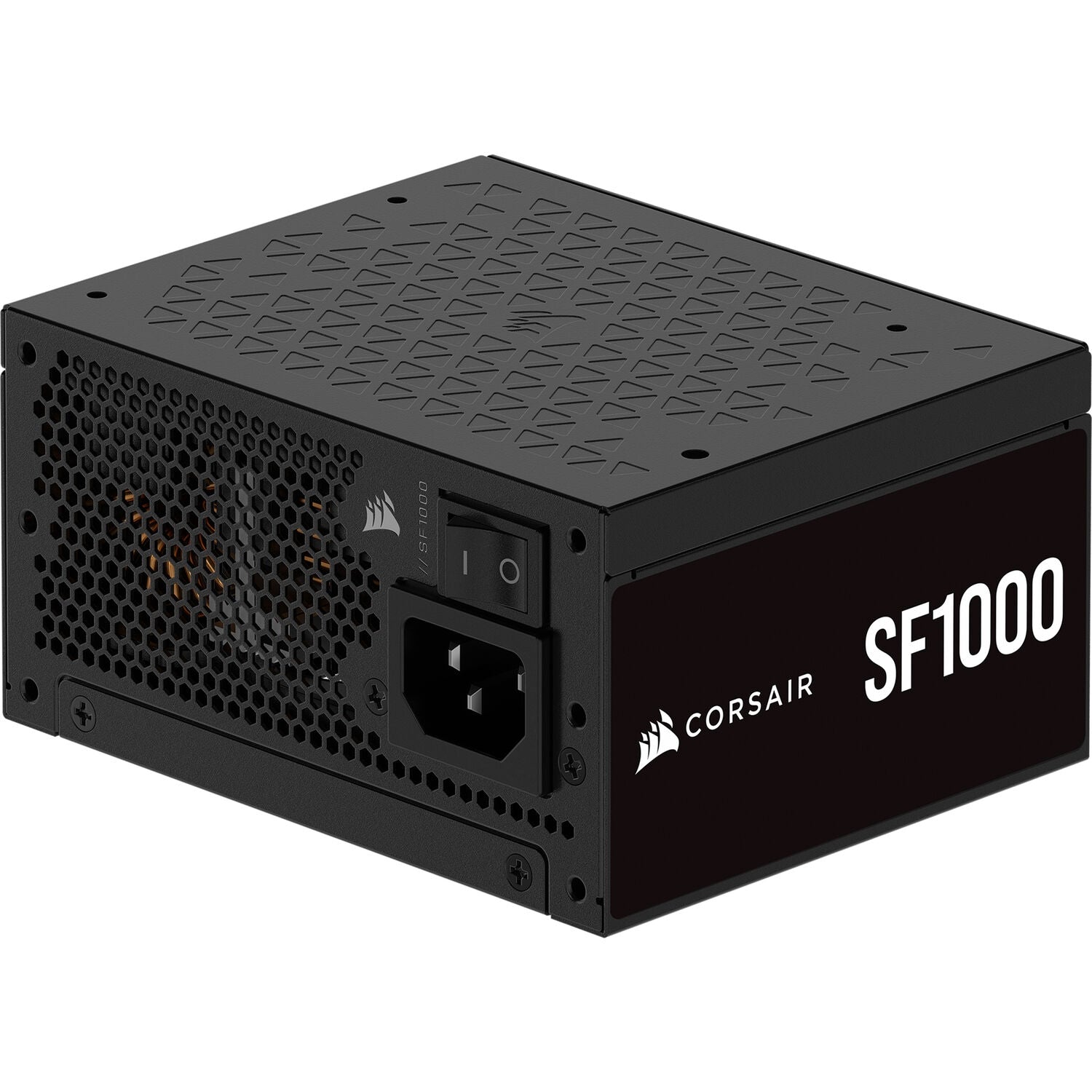

CORSAIR SF1000 80 PLUS Platinum Fully Modular 1000W SFX Power Supply Black CP-9020257-NA

CORSAIR SF1000 80 PLUS Platinum Fully Modular 1000W SFX Power Supply Black CP-9020257-NA

Condition: New Open Box

Warranty: 90 Days

$199.99 USD
$0.00 USD $199.99 USD
Sale Sold out
View full details

Additional Information:

This CORSAIR SF1000 80 PLUS Platinum Fully Modular 1000W SFX Power Supply is in great working condition.

The unit has been fully tested and is completely functional.

Included in the Box:

  • CORSAIR SF1000 80 PLUS Platinum Fully Modular 1000W SFX Power Supply (Black)

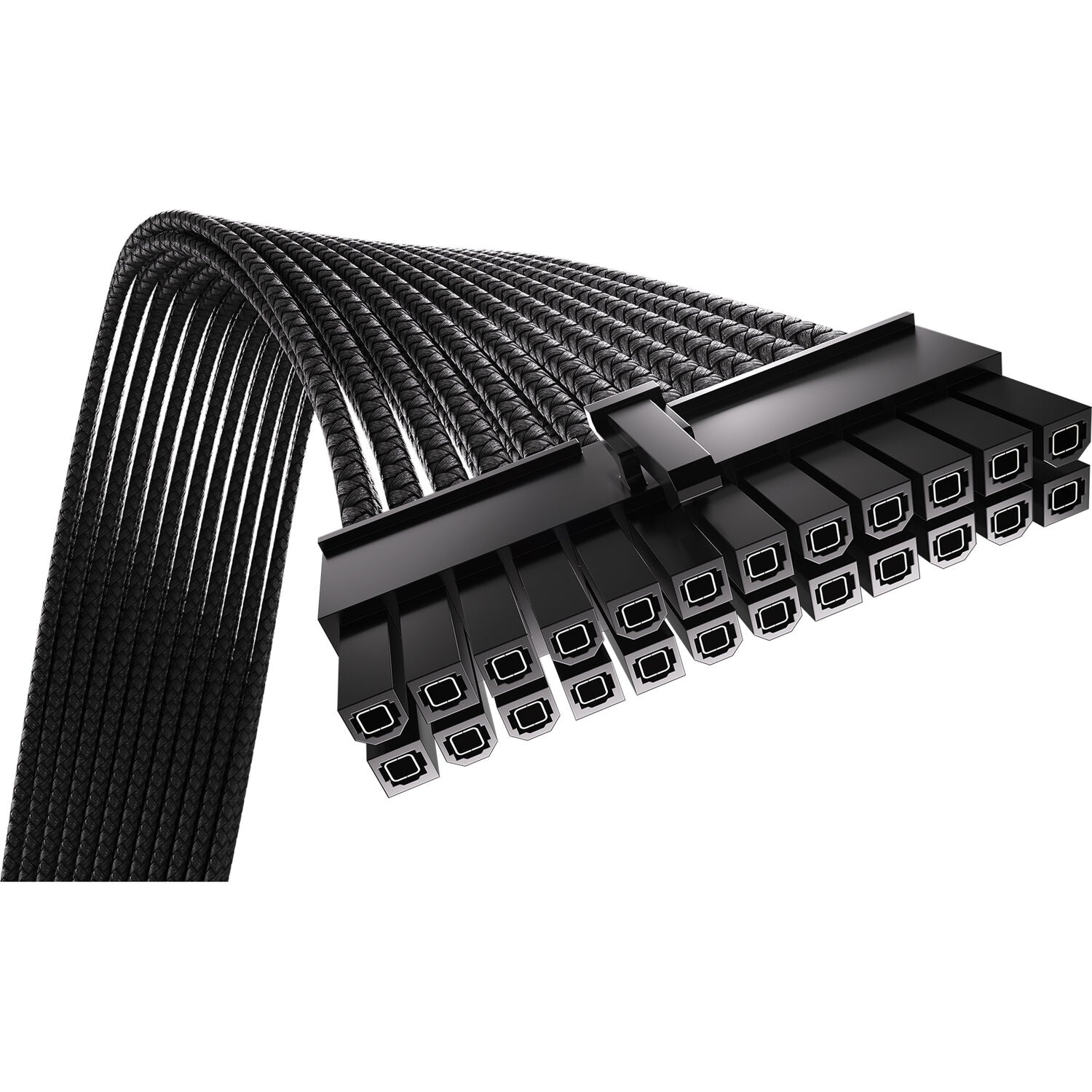

  • 24-Pin ATX Motherboard Cable
  • 2 x 8-Pin (4+4-Pin) ATX12V / EPS12V Cable
  • 2 x 8-Pin to 600W 12V-2x6 (12+4-Pin)
  • 3 x 8-Pin (6+2-Pin) PCIe Cable
  • SATA Right-Angle Cable
  • SATA Straight Cable
  • PATA Cable
  • SFX-to-ATX Adapter Bracket
  • Mounting Screw Set
  • Cable Tie Set
  • Power Cable

Packaging:

The item is securely packaged in Original box.

Key Features:
  • 1000W Single +12V Rail
  • 92mm Cooling Fan
  • Intel ATX12V Version 3.1
  • 3 x PCIe Connectors
  • 8 x SATA Connectors
  • 3 x PATA Connectors
  • Sleeved Cable Design
  • Modular Form Factor
  • Includes SFX to ATX Bracket

CORSAIR SF1000 80 PLUS Platinum Fully Modular 1000W SFX Power Supply Black CP-9020257-NA Description:

System builders can easily deliver ample power to their builds within small cases with the Corsair SF1000 80 PLUS Platinum Fully Modular 1000W SFX Power Supply. Designed for smaller systems, the SF1000 makes it possible to drive electrical performance to your gaming focused components while optimizing internal space.

Sporting a small design, the SF1000 can deliver up to 1000W of power to your system, ensuring your components are properly powered thanks to the single +12V rail. With ATX 3.1 compliance, the SF1000 is compatible with variety of PCIe 5.0 platforms and includes a cable which gives you a single-cable solution designed for 40 series NVIDIA graphics cards. Additionally, you get three PCIe 6+2-pin connectors, four right-angle SATA connectors, four straight SATA connectors, and three PATA/Molex connectors. Modular design allows you to pick and choose exactly which cables you need, optimizing your cable routing as well as airflow within your case.

CORSAIR SF1000 80 PLUS Platinum Fully Modular 1000W SFX Power Supply Black CP-9020257-NA Features:

  • 80 PLUS Platinum rating ensures optimal throughput, giving you up to 92 and 89% efficiency at half and full loads, respectively
  • Flexible cabling takes up less space within your case for greater airflow and easy management

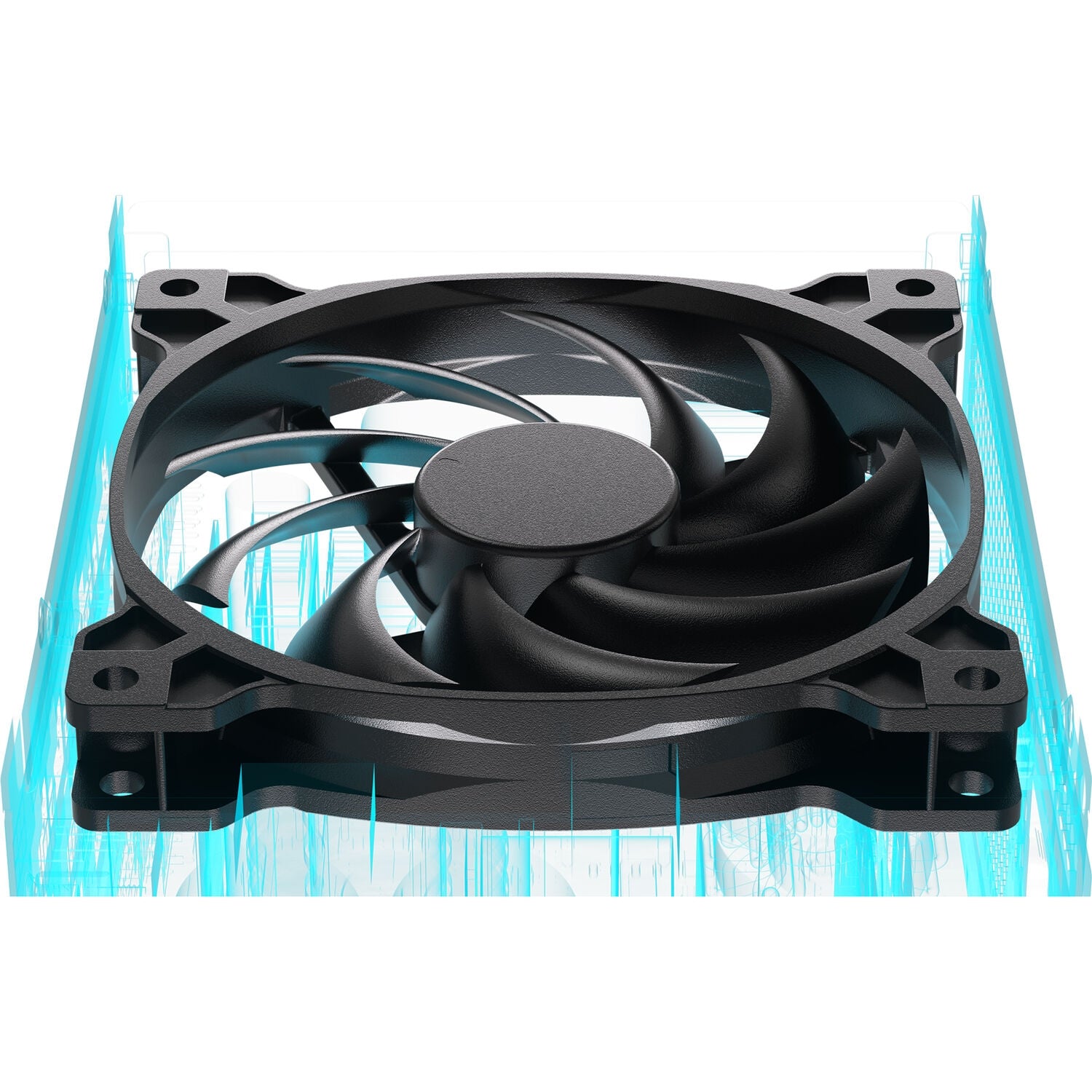

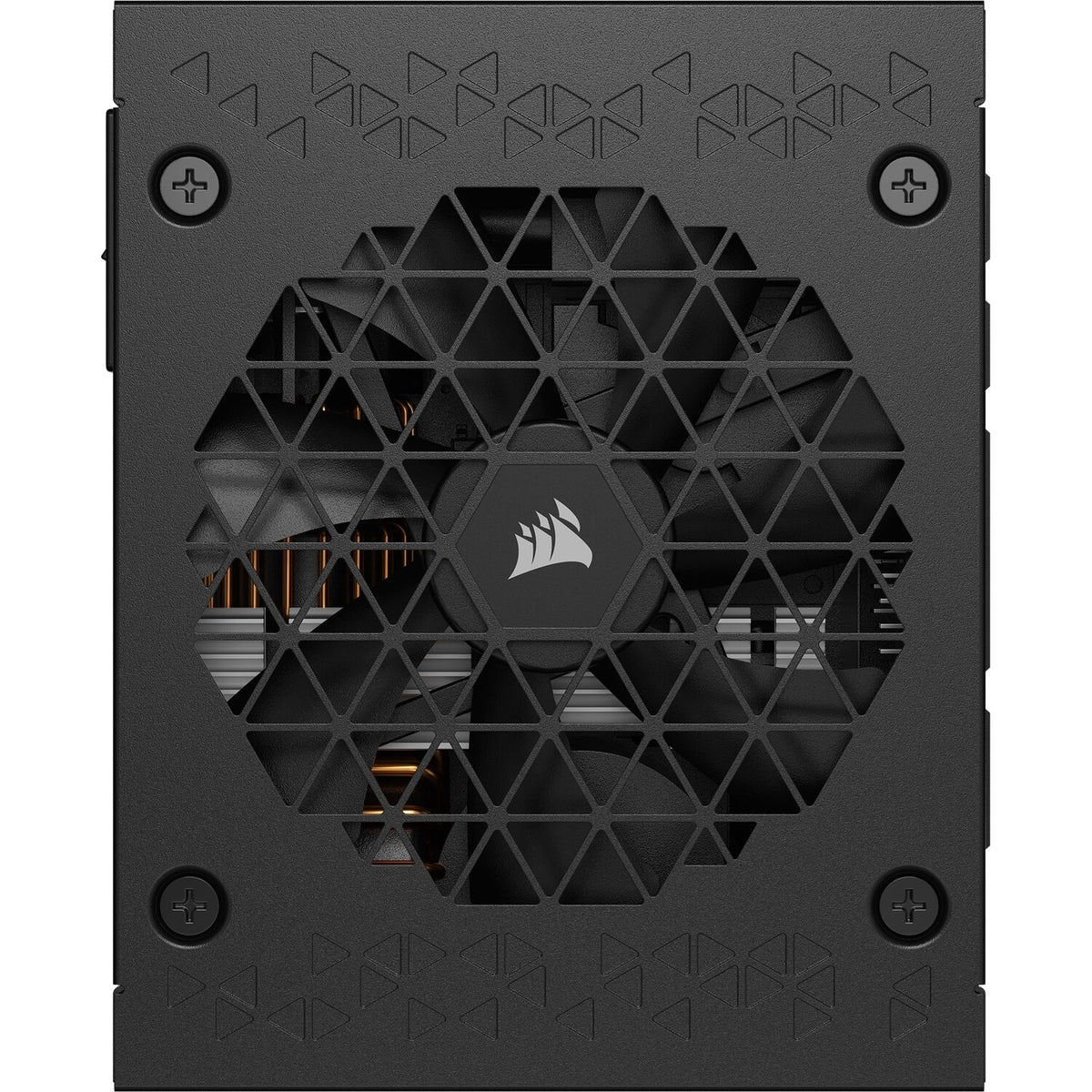

  • 92mm PWM cooling fan keeps the SF1000 cool and incorporates a Zero RPM Mode which reduces fan speed during low operating loads
  • 105°C rated Japanese capacitors deliver enhanced power with extra reliability
  • While designed for smaller cases, an included SFX-to-ATX bracket allows you to install the SF1000 into large cases

CORSAIR SF1000 80 PLUS Platinum Fully Modular 1000W SFX Power Supply Black CP-9020257-NA Specifications:


Key Specs

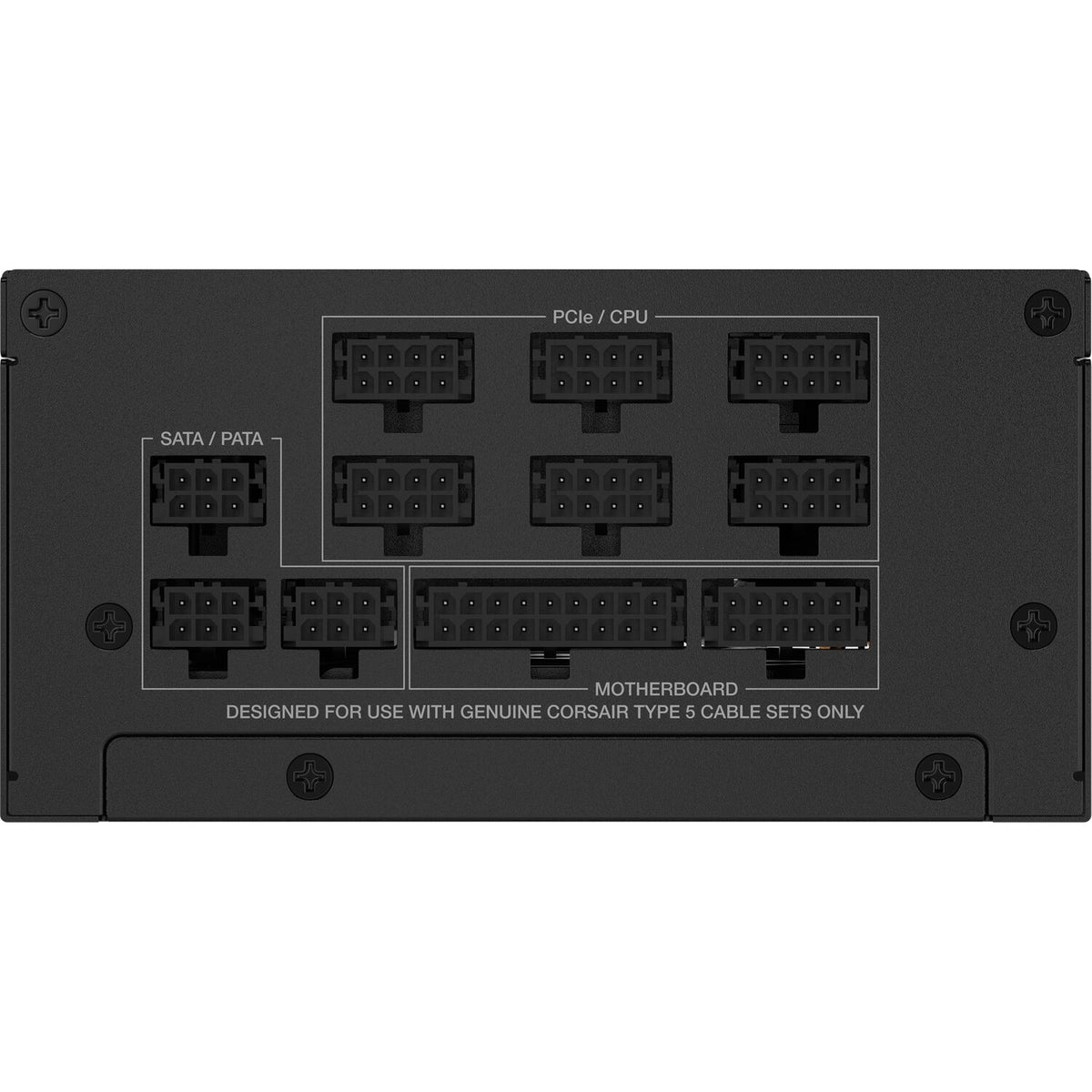

Total Connectors
1x 24-Pin ATX Motherboard
2x 4+4-Pin EPS CPU
3x 6+2-Pin PCIe
8x 15-Pin SATA
3x 4-Pin Peripheral / Molex

Cable Design
Modular, Sleeved
Total Wattage
1000 W
Number of +12 V Rails
1
Efficiency Rating
80 PLUS Platinum
Form Factor
SFX
Connectivity
Total Connectors
1x 24-Pin ATX Motherboard
2x 4+4-Pin EPS CPU
3x 6+2-Pin PCIe
8x 15-Pin SATA
3x 4-Pin Peripheral / Molex
Cable Design
Modular, Sleeved
PCIe Connector Distances
15.7" / 400 mm
SATA Connector Distances
17.5" / 445 mm
Peripheral Connector Distances
13" / 330 mm
Floppy Connector Distances
13" / 330 mm
ATX Connector Distance
11.8" / 300 mm
EPS Connector Distances
15.7" / 400 mm
Electrical
Total Wattage
1000 W
Number of +12 V Rails
1
Combined Power for +12 V
1000 W
Max Load for +12 V
83.3 A
Combined Power for +3.3/+5 V
130 W
Max Load for +3.3 V
20 A
Max Load for +5 V
20 A
Max Power for +5 Vsb
15 W
Max Load for +5 Vsb
3 A
Peak Power
1000 W
Input Power

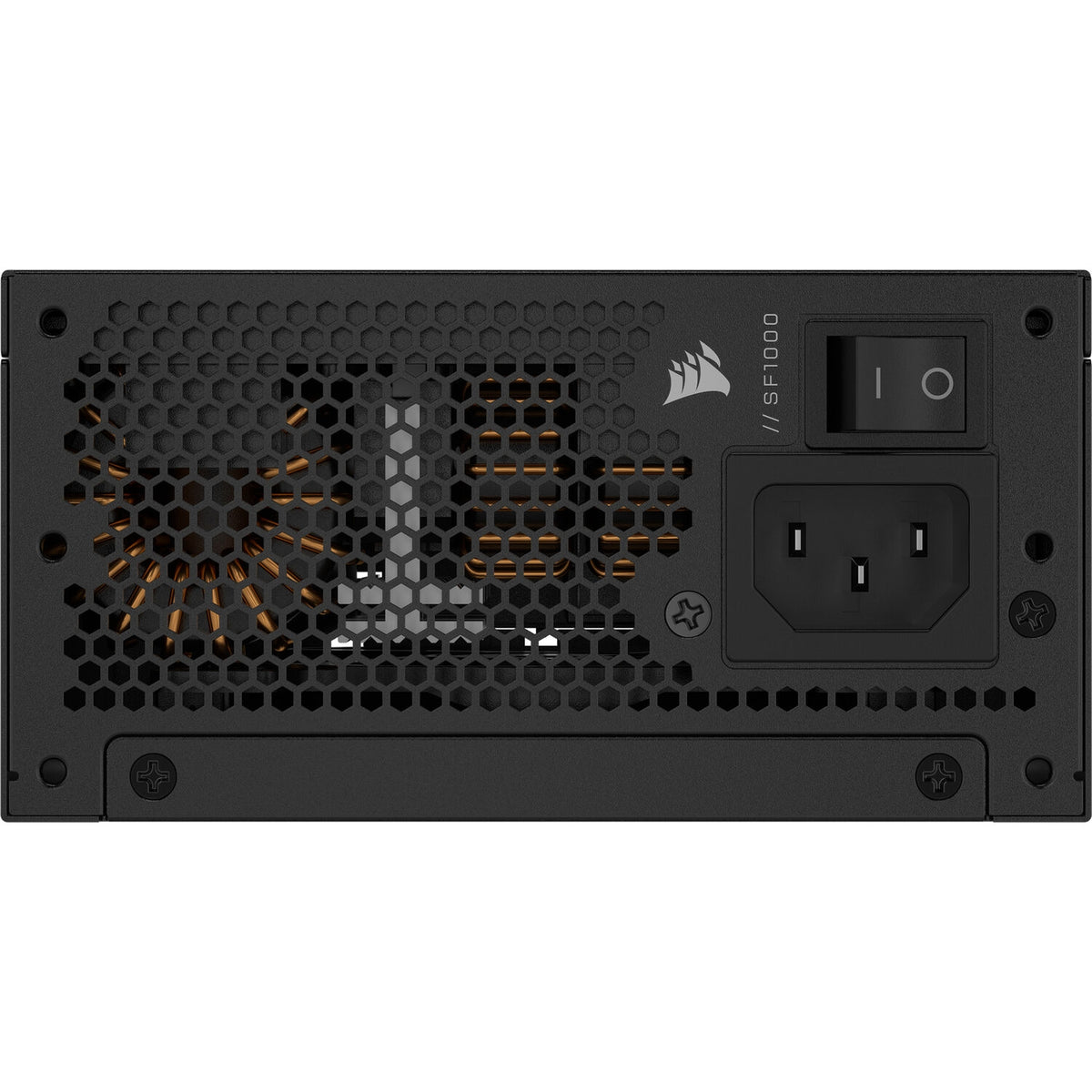

100 to 240 VAC, 50 / 60 Hz
General
Efficiency Rating
80 PLUS Platinum
Active Power Factor Correction
No
Efficiency
90% at 20% Load
92% at 50% Load
89% at 100% Load
Cooling
Fan Size
92 mm
Physical
Form Factor
SFX
Compliance
ATX 12 V v3.0
Operating Conditions
Up to 122°F / 50°C
Dimensions
4.9 x 3.9 x 2.5" / 125 x 100 x 63.5 mm
Weight
2.09 lb / 0.95 kg
