Arducam 64MP Hawkeye Ultra High-Resolution Autofocus Camera Module for Raspberry Pi 5/4B/3B+/3B/2B/A+/Zero/

Additional Information:

This Arducam 64MP Hawkeye Ultra High-Resolution Autofocus Camera Module is in New Open Box condition.

Included in the Box:

• One Arducam 64MP autofocus camera module
• One 15-pin ribbon cable

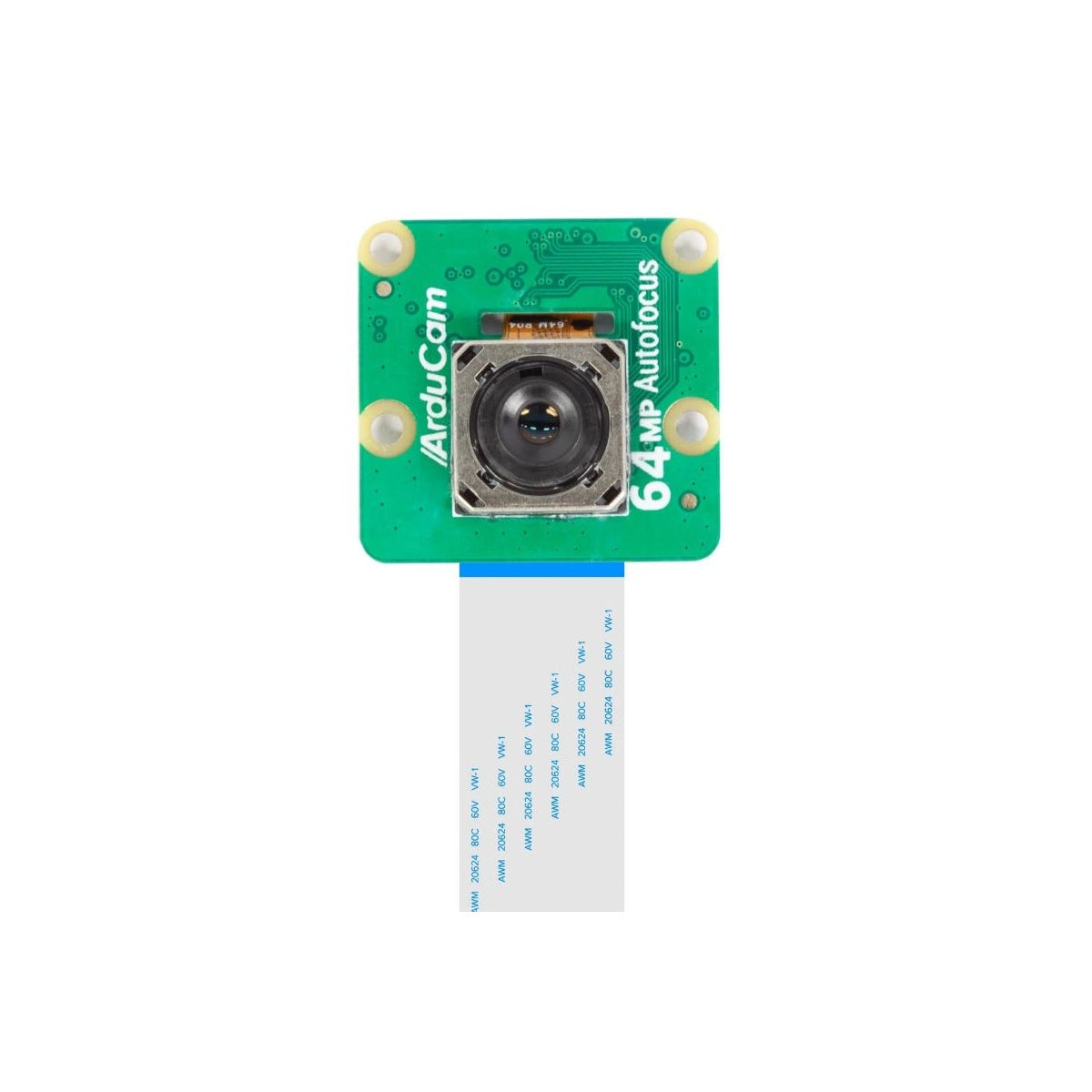

• One 15-pin-to-22-pin ribbon cable for compatible camera connectors

Packaging:

The item is securely packaged in Original box.

Arducam 64MP Hawkeye Ultra High-Resolution Autofocus Camera Module for Raspberry Pi 5/4B/3B+/3B/2B/A+/Zero/ Description:

The Arducam 64MP Hawkeye is an ultra-high-resolution autofocus camera module designed for Raspberry Pi projects that require detailed image capture and software-controlled focus. It features a 64-megapixel image sensor capable of capturing still images at resolutions up to 9152 × 6944 pixels.

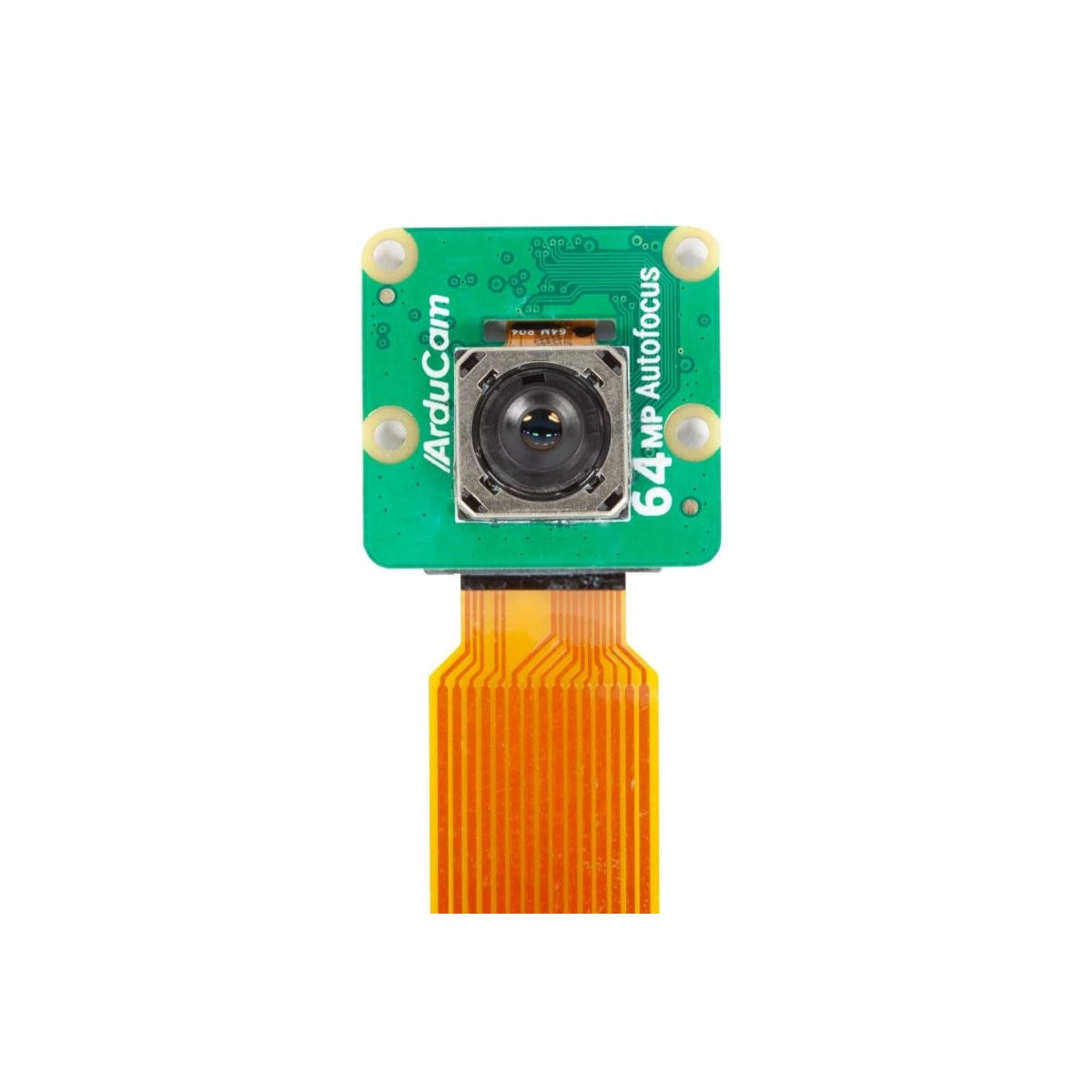

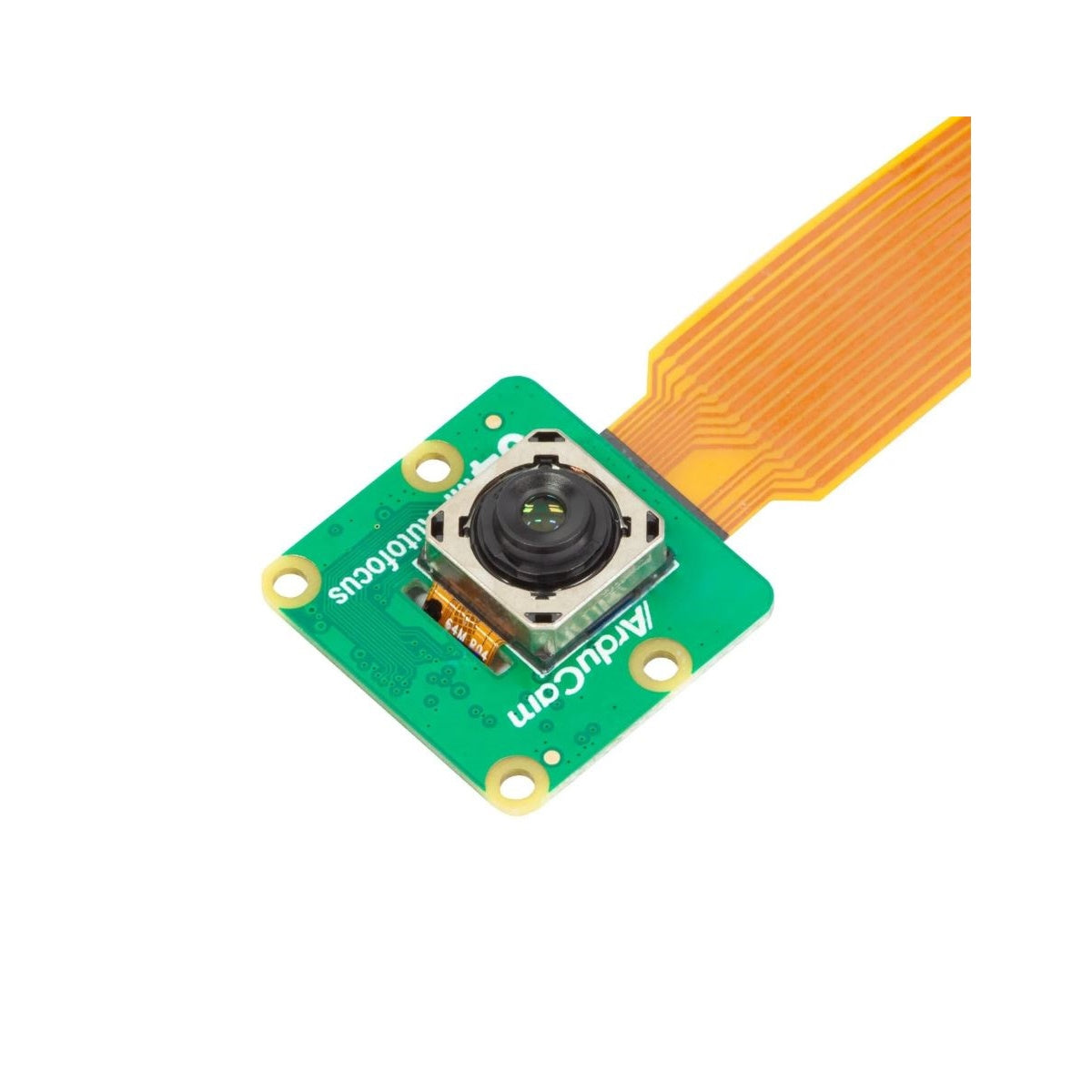

The camera combines a compact circuit-board design with a motorized autofocus lens, making it suitable for embedded vision systems, machine vision experiments, document imaging, robotics, image analysis, and high-resolution photography projects.

Its software-controlled focus capabilities allow users to adjust focus automatically or manually. Digital zoom and electronic pan, tilt, and zoom functions provide additional flexibility when framing and examining images.

The module connects to compatible Raspberry Pi boards through a MIPI CSI-2 camera interface. It supports image formats including JPEG, YUV, RGB, and RAW10, subject to the software and capture mode used.

Arducam 64MP Hawkeye Ultra High-Resolution Autofocus Camera Module for Raspberry Pi 5/4B/3B+/3B/2B/A+/Zero/ Features:

• 64MP Ultra-High Resolution: Captures still images at up to 9152 × 6944 pixels.
• Motorized Autofocus: Supports software-controlled autofocus and manual focus adjustments.
• Digital Zoom: Supports up to 10× digital zoom, depending on the software and operating mode.
• High-Resolution Imaging: Designed for applications that require fine image detail.
• MIPI CSI-2 Interface: Connects directly to compatible Raspberry Pi camera connectors using the appropriate ribbon cable.
• Multiple Image Formats: Supports JPEG, YUV, RGB, and RAW10 output.
• Compact Design: Approximately 25 × 24 mm camera board dimensions.
• Software Integration: Supports Raspberry Pi camera software workflows with the appropriate Arducam driver and configuration.
• Flexible Applications: Suitable for robotics, automation experiments, computer vision, surveillance prototypes, and image-processing projects.
• Broad Raspberry Pi Compatibility: Supports multiple Raspberry Pi generations, with maximum resolution and software compatibility depending on the specific board and operating system.

Arducam 64MP Hawkeye Ultra High-Resolution Autofocus Camera Module for Raspberry Pi 5/4B/3B+/3B/2B/A+/Zero/ Specifications:

Image Sensor

• Sensor Resolution: 64 megapixels
• Maximum Still Image Resolution: 9152 × 6944 pixels
• Sensor Optical Format: Type 1/1.7-inch
• Pixel Size: 0.8 × 0.8 micrometers
• Color Filter: Quad Bayer Color Filter
• Shutter Type: Rolling shutter
• Image Output Formats: JPEG, YUV, RGB, and RAW10
• Infrared Filter: Integrated 650nm IR-cut filter

Lens and Focus

• Lens Type: Integrated autofocus lens
• Focus Modes: Autofocus and software-controlled manual focus
• Focal Length: 5.1 mm
• Aperture: f/1.8
• Field of View: Approximately 84 degrees diagonal
• Minimum Focus Distance: Approximately 8 cm, depending on operating conditions
• Digital Zoom: Up to 10×, depending on software and capture mode

Video Capabilities

• 1920 × 1080: Up to 60 frames per second at the sensor output
• 1280 × 720: Up to 120 frames per second at the sensor output
• 640 × 480: Up to 90 frames per second at the sensor output
• Maximum-Resolution Capture: Approximately 2.7 frames per second at 9152 × 6944

Actual video recording capabilities depend on the Raspberry Pi model, driver, software configuration, and available processing resources. The sensor's maximum output frame rate does not necessarily represent the achievable frame rate of a complete recording application.

Interface and Physical Specifications

• Camera Interface: MIPI CSI-2
• Data Interface: Two-lane CSI-2 output
• Camera Board Dimensions: Approximately 25 × 24 mm
• Connection: Compatible camera ribbon cable
• Mounting: Compatible with suitable camera holders and enclosures
• Power Requirements: Supplied through the compatible camera interface; verify the exact electrical requirements in the manufacturer's documentation

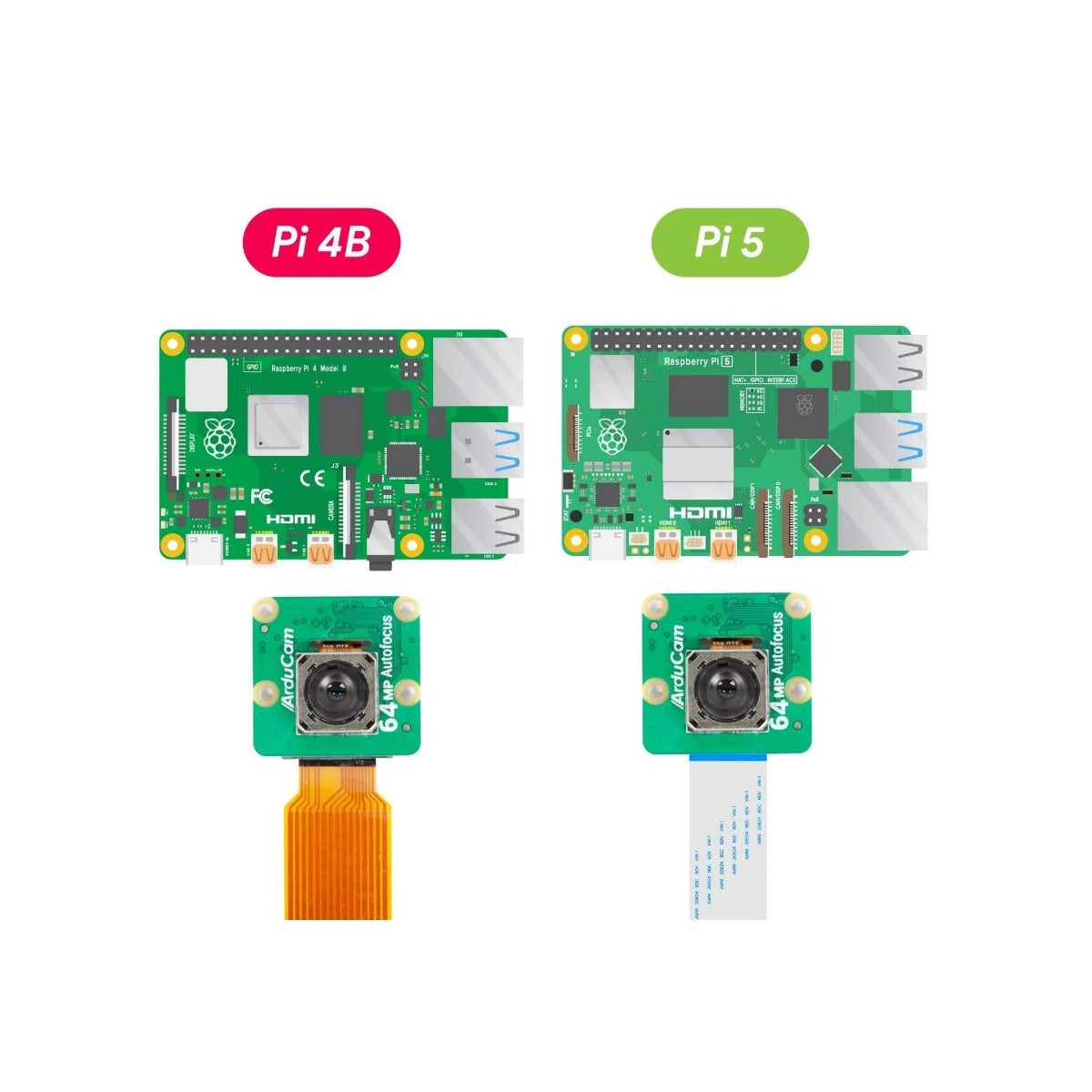

Supported Raspberry Pi Platforms

The Arducam 64MP Hawkeye is designed for use with compatible Raspberry Pi boards, including:

• Raspberry Pi 5
• Raspberry Pi 4 Model B
• Raspberry Pi 3 Model B+
• Raspberry Pi 3 Model B
• Raspberry Pi 2 Model B
• Raspberry Pi A+ and compatible Zero-family boards, subject to model-specific limitations

Important Compatibility Note: Full 64MP still-image capture is not guaranteed across every listed Raspberry Pi model. Maximum resolution, performance, and available functions depend on the board, camera interface, driver, and operating system.

Software and Operating System Requirements

• Operating System: Compatible Raspberry Pi OS installations
• Recommended Software Environment: Raspberry Pi OS Bookworm or Trixie, where supported
• Camera Software: Compatible rpicam or libcamera applications and the required Arducam driver components
• Configuration: Driver installation and camera overlay configuration may be required
• Manual Focus Control: Supported through compatible software controls
• Continuous Autofocus: Supported on compatible module revisions and software configurations
